13. BRAKE SYSTEM
13-4
MXU 300/250

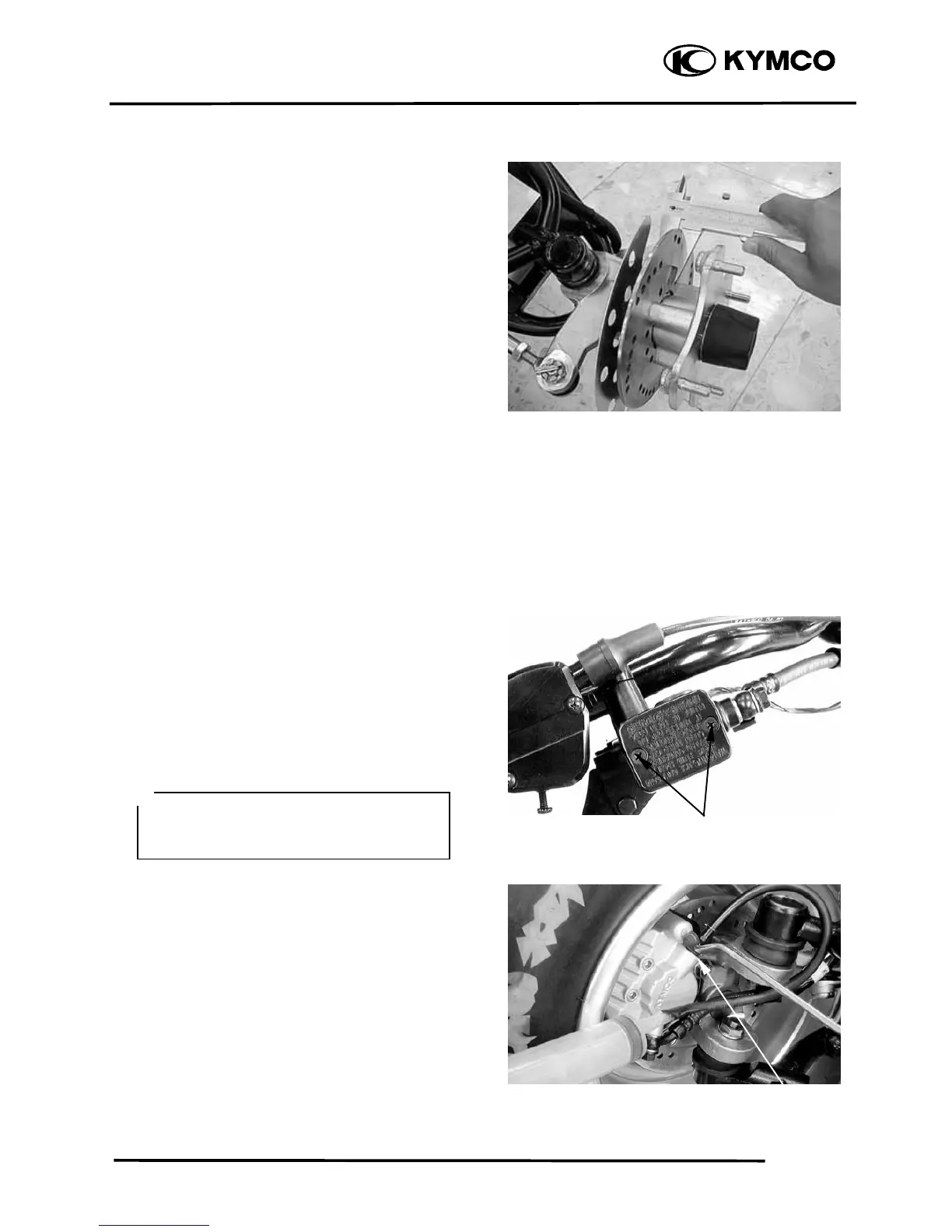

BRAKE DISK
Measure the brake disk thickness.
Service Limit: 3 mm (0.12 in)
Measure the brake disk run out.
Service Limit: 0.3 mm (0.012 in)
INSTALLATION
Reverse the “BRAKE PADS REMOVAL”
procedures.
Torque:
Brake pad pin bolt:
1.8 kgf-m (18 Nm, 13 lbf-ft)
Brake caliper mounting bolt (replace a
new one): 3.2 kgf-m (32 Nm, 25 lbf-ft)
FRONT BRAKE FLUID
CHANGE/AIR BLEED
BRAKE FLUID DRAINING
Place the machine on the level ground and
set the handlebar upright.
Remove the two screws attaching the brake
fluid reservoir cap.
Connect a transparent hose to the brake
caliper bleed valve and then loosen the
bleed valve nut.
Use a syringe to draw the brake fluid out
through the hose.
Use shop towels to cover plastic parts
and coated surfaces to avoid damage
caused by splash of brake fluid.
＊
Screws
Bleed Valve
To Next Page
