5. FUEL SYSTEM
5-4
MXU 300/250
FUEL TANK

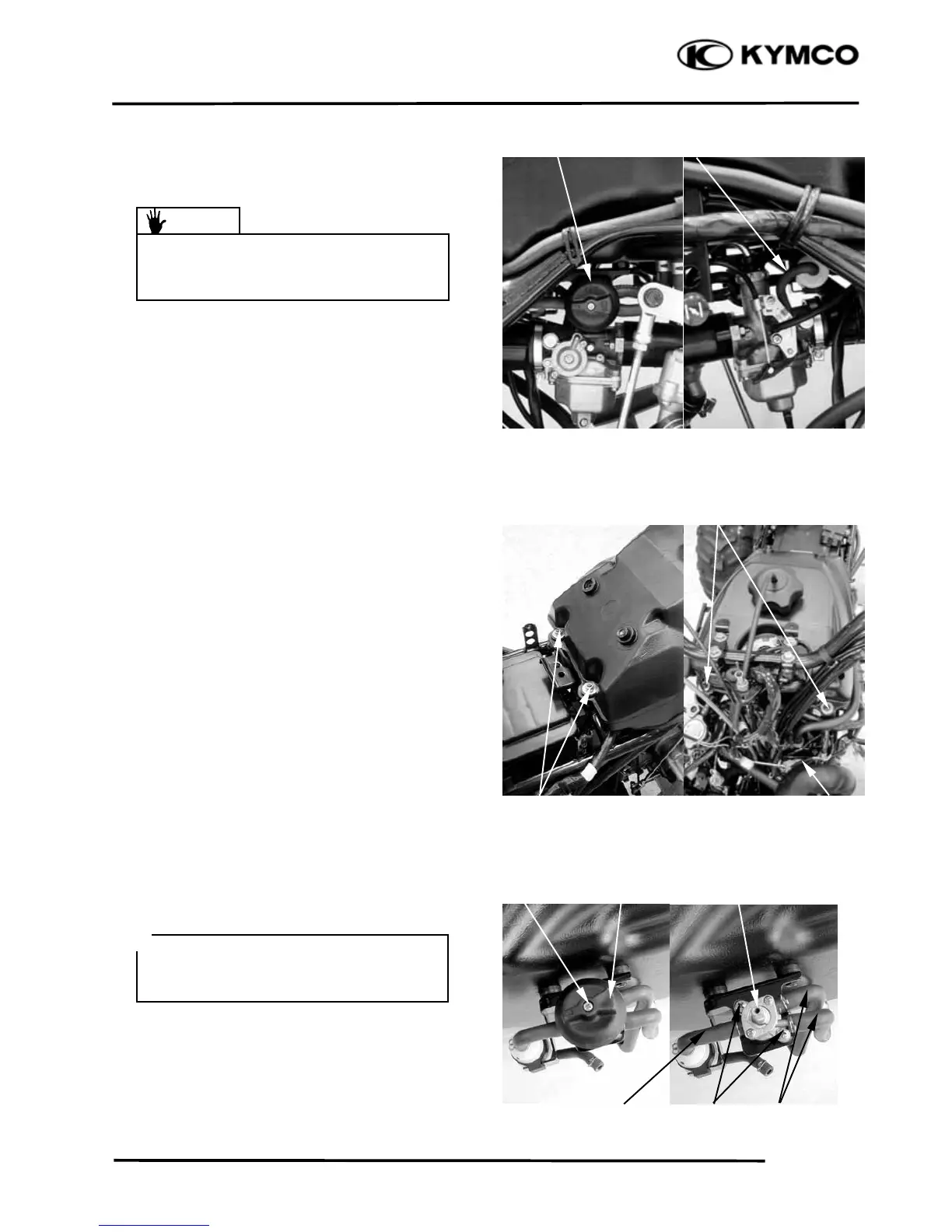

REMOVAL
Remove the seat (See page 2-3), right and
left side frame cover (See page 2-6) and fuel
tank cover (See page 2-8).
Switch the fuel valve “OFF”.
Disconnect the fuel tube from carburetor.
Disconnect the fuel unit connectors.
Remove the two bolts and two nuts from the
fuel tank, then remove the fuel tank.
INSTALLATION
Reverse the “FUEL TANK REMOVAL”
procedures.
FUEL VALVE
REMOVAL
Remove the screw and then remove control
switch.
Disconnect all fuel tubes and remove the two
screws, then remove fuel valve.
Warnin
g
N
uts
Bolts
Screw
Fuel Valve
Fuel Tube
• Keep sparks and flames away from the
work area.
• Wipe off any spilled gasoline.
Control Switch
Screws
Fuel Valve
Fuel Tube
Fuel Tubes
Fuel Unit Connectors
• Keep sparks and flames away from the
work area.
• Drain gasoline into a clean container.
＊
