6. ENGINE REMOVAL/INSTALLATION
6-17
MXU 300/250
ENGINE INSTALLATION (MXU
300)
Installation is in the reverse order of
removal.

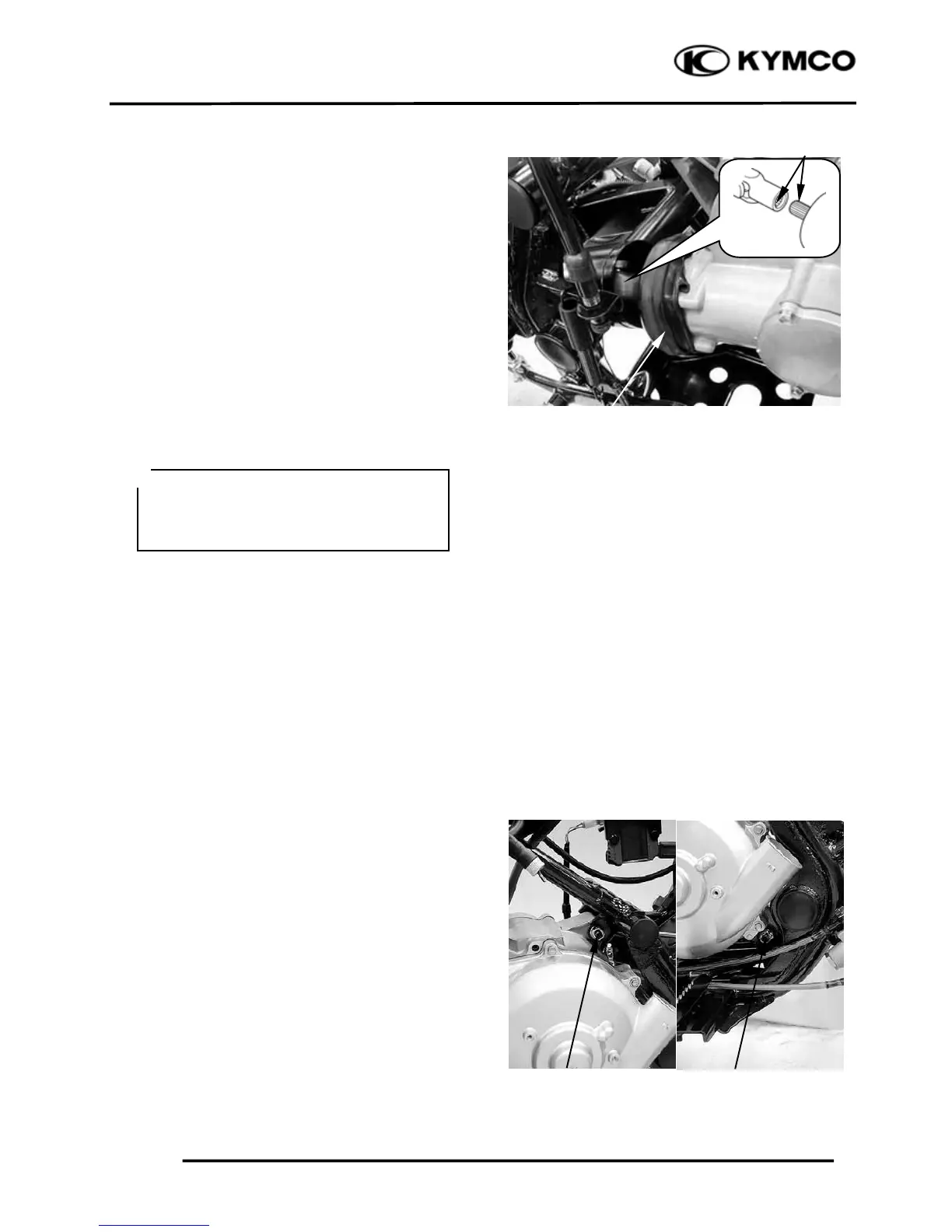

Check the joint boot for tears or other
damage.
Check the secondary driven bevel gear shaft
splines and universal joint splines for wear
or damage.
Be sure to install the joint onto the
secondary driven bevel gear shaft case.
Slide the joint boot front to expose the
secondary driven bevel gear shaft.
Install the engine the frame.
Move the engine rearward and engage the
secondary driven bevel gear shaft into the
universal joint.
The rear upper and lower engine mounting
bolts and nuts loosely install, then tighten
the engine mounting nuts to the specified
torque.
Torque: 40 N-m (4 kgf-m, 29 lbf-ft)
Apply Grease
Joint Boo
Apply molybdenum disulfide grease to
the universal joint splines and the
secondary driven bevel gear shaft
splines.
＊
Nut
To Next Page
