2M4/2M5/2M6/2M7
1-5-3
1-5-2 Outer covers
(1) Detaching and refitting the right upper cover and Rear upper cover R
Procedure
1. Open the front cover and rear cover.
2. Remove screw.

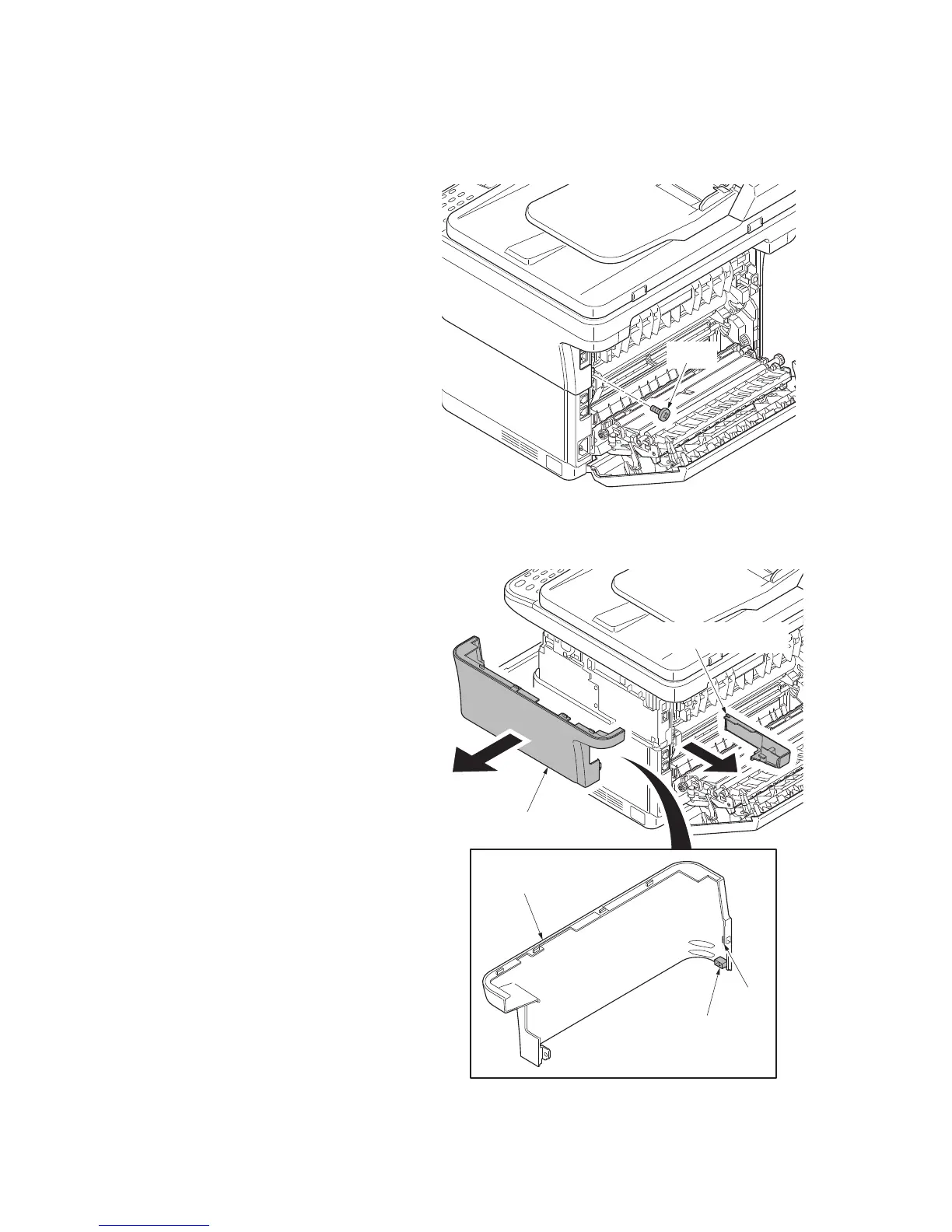

Figure 1-5-3
3. Unhook the two hooks and then remove
the right upper cover.
4. Remove the rear upper cover R.
Figure 1-5-4
Screw
Hook
Right upper cover
Rear upper cover R
Right upper cover
Hook
