2M4/2M5/2M6/2M7-1
2-2-4
(3) Others

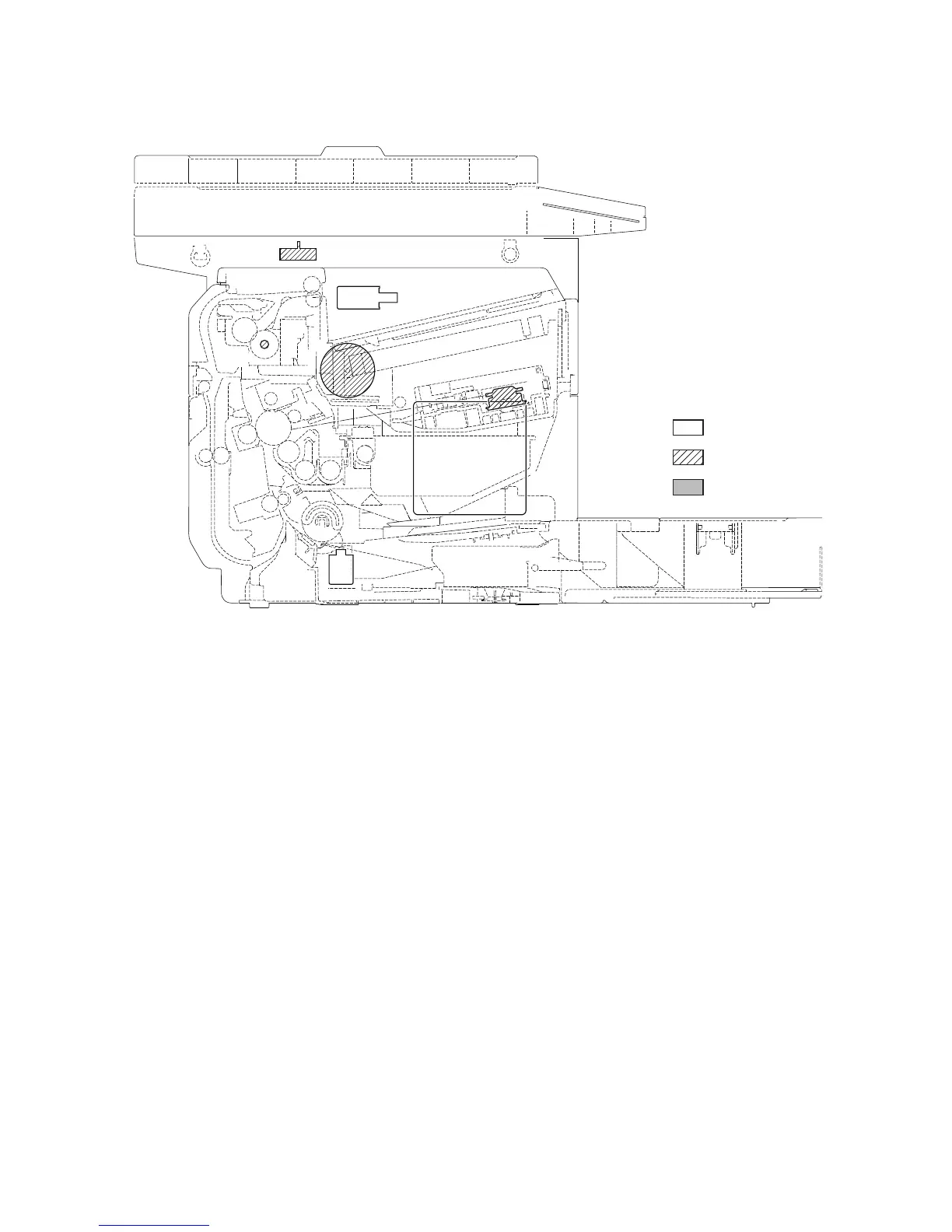

Figure 2-2-3 Others
1. Main motor (MM)................................... Drives the paper feed/conveying section and fuser unit.
2. Polygon motor (PM) .............................. Drives the polygon mirror.
3. Scanner motor (ISUM) .......................... Drives the optical system.
4. Cooling fan motor (FM) ......................... Cools the interior of machine.
5. Paper feed solenoid (PFSOL)............... Controls the paper cassette paper feed.
6. Duplex solenoid (DUSOL)* ................... Controls the paper conveying at the duplex conveying section.
7. Fuser heater lamp (FH)......................... Heats the heat roller.
*: 25/26 ppm model only.
