2M4/2M5/2M6/2M7
2-4-13

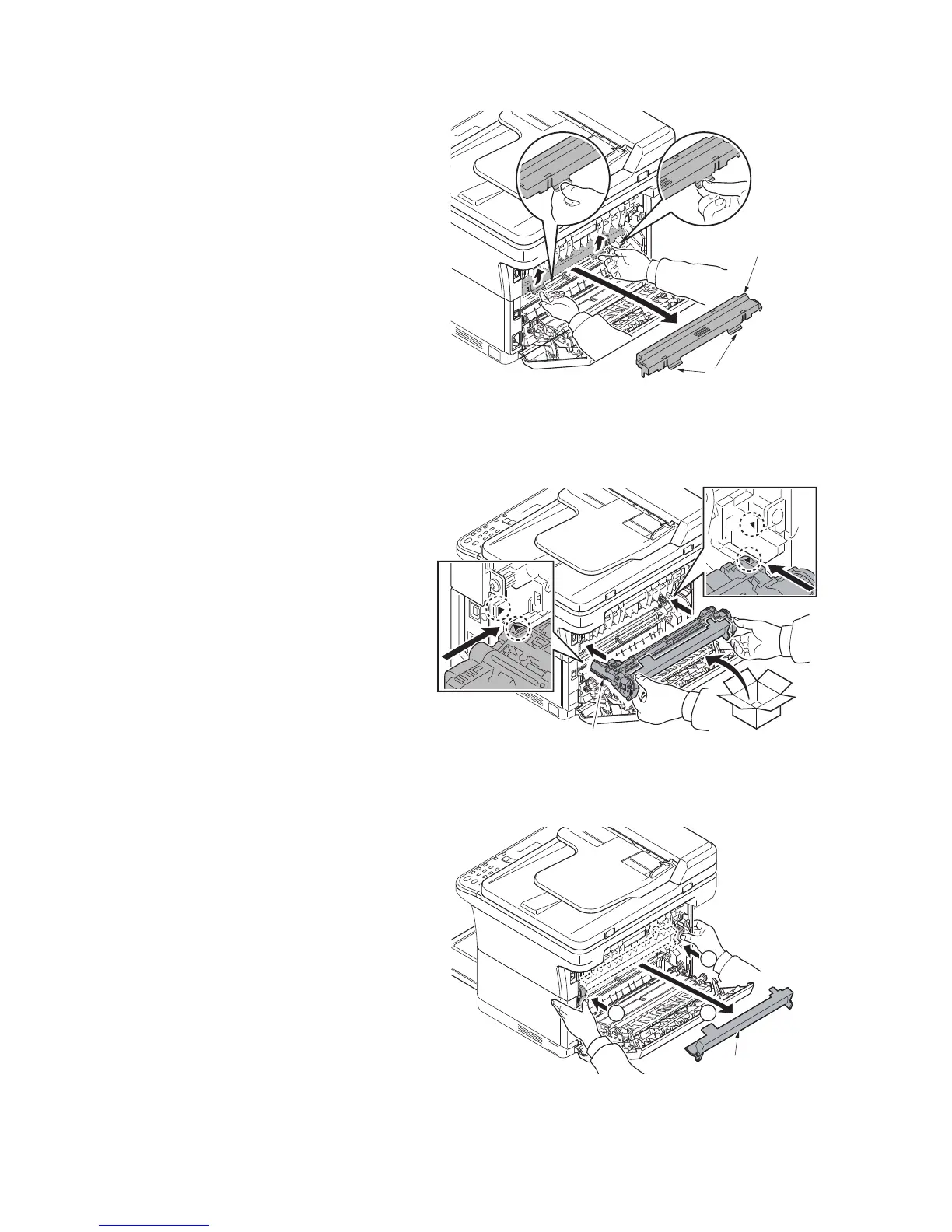

2. Remove the developer cover by raising
the levers on it.
Figure 2-4-27
(9) Refitting the drum unit
Procedure
1. Install the new drum unit in the machine
by holding both of its ends.
Insert the unit along the guides on both
sides.
Figure 2-4-28
2. Seat the drum unit in position by
pressing the knobs on its ends and
remove the drum cover.
Figure 2-4-29
Devloper cover
Lever
Drum unit
Drum cover
1
2
1
