1-1-13

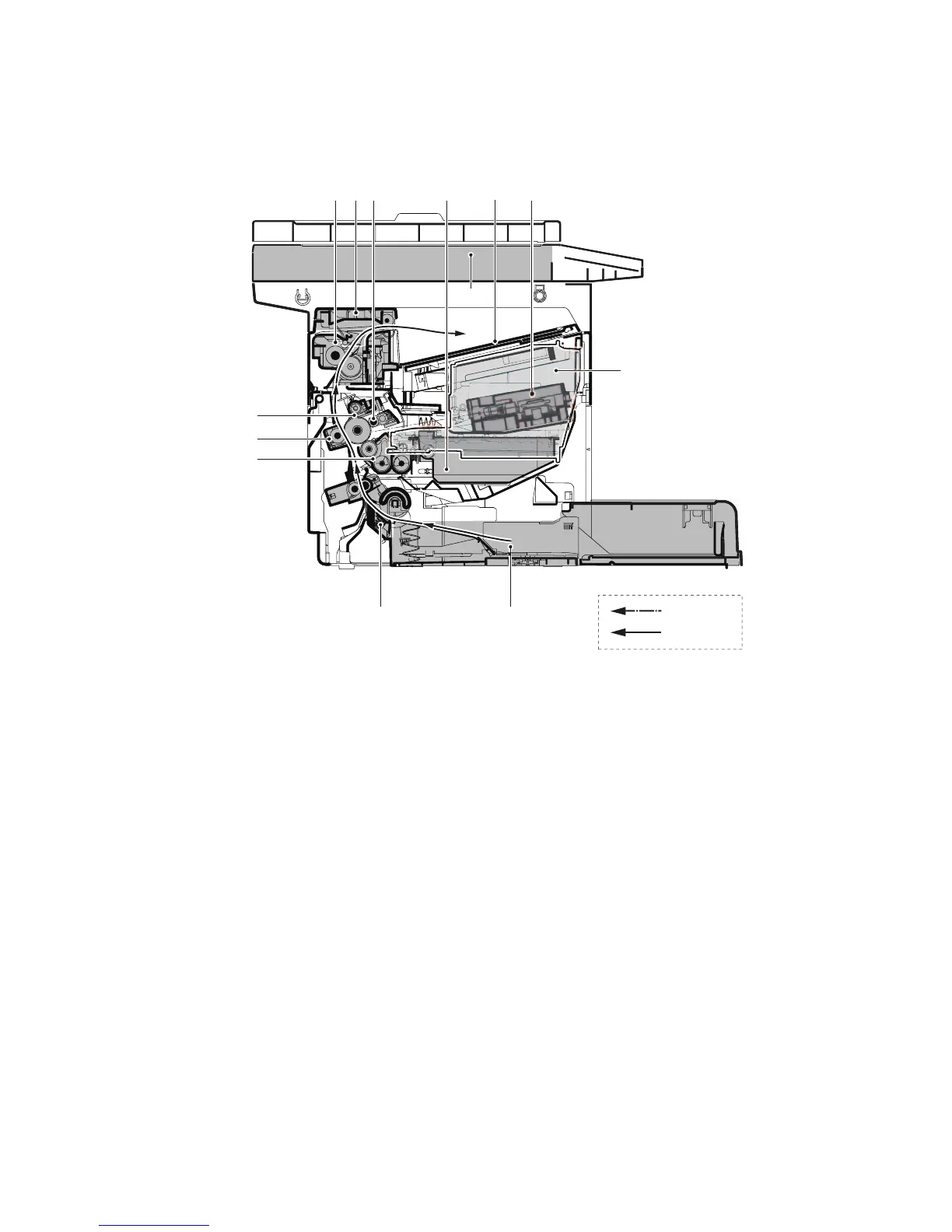

1-1-3 Machine cross section
(1) 20/21 ppm Model
Figure 1-1-5
1
91110
2
6
5
4
8
7
12
3
13
Paper path
Light path
1. Cassette
2. Paper feed/conveying section
3. Toner container
4. Developing unit
5. Wast toner box
6. Drum charge roller
7. Drum unit
8. Transfer/separation section
9. Laser scanner unit
10. Fuser section
11. Exit section
12. Top tray
13. Scanner section
