2M4/2M5/2M6/2M7

1-5-4

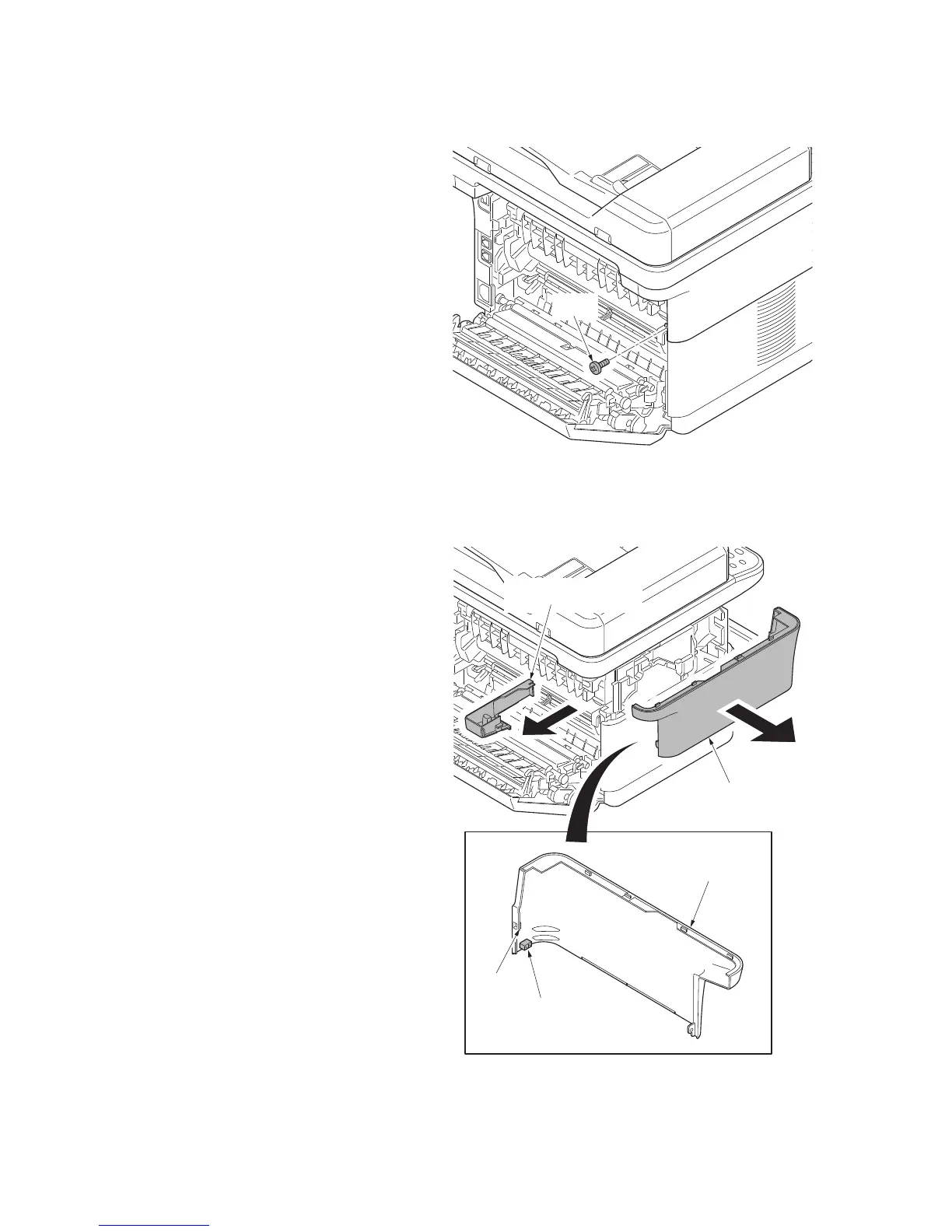

(2) Detaching and refitting the Left upper cover and Rear upper cover L

Procedure

1. Open the front cover and rear cover.

2. Remove screw.

Figure 1-5-5

3. Unhook the two hooks and then remove

the left upper cover.

4. Remove the rear upper cover L.

Figure 1-5-6

Screw

Rear upper cover L

Left upper cover

Hook
