2M4/2M5/2M6/2M7-1
1-5-25
1-5-6 Document processor
(4 in 1 20/21,25/26 ppm model, 3 in 1 25/26 ppm model only)
(1) Detaching and refitting the Document processor
Procedure
1. Remove the right upper cover, rear
upper cover R
(see page 1-5-3,see page 1-5-4).

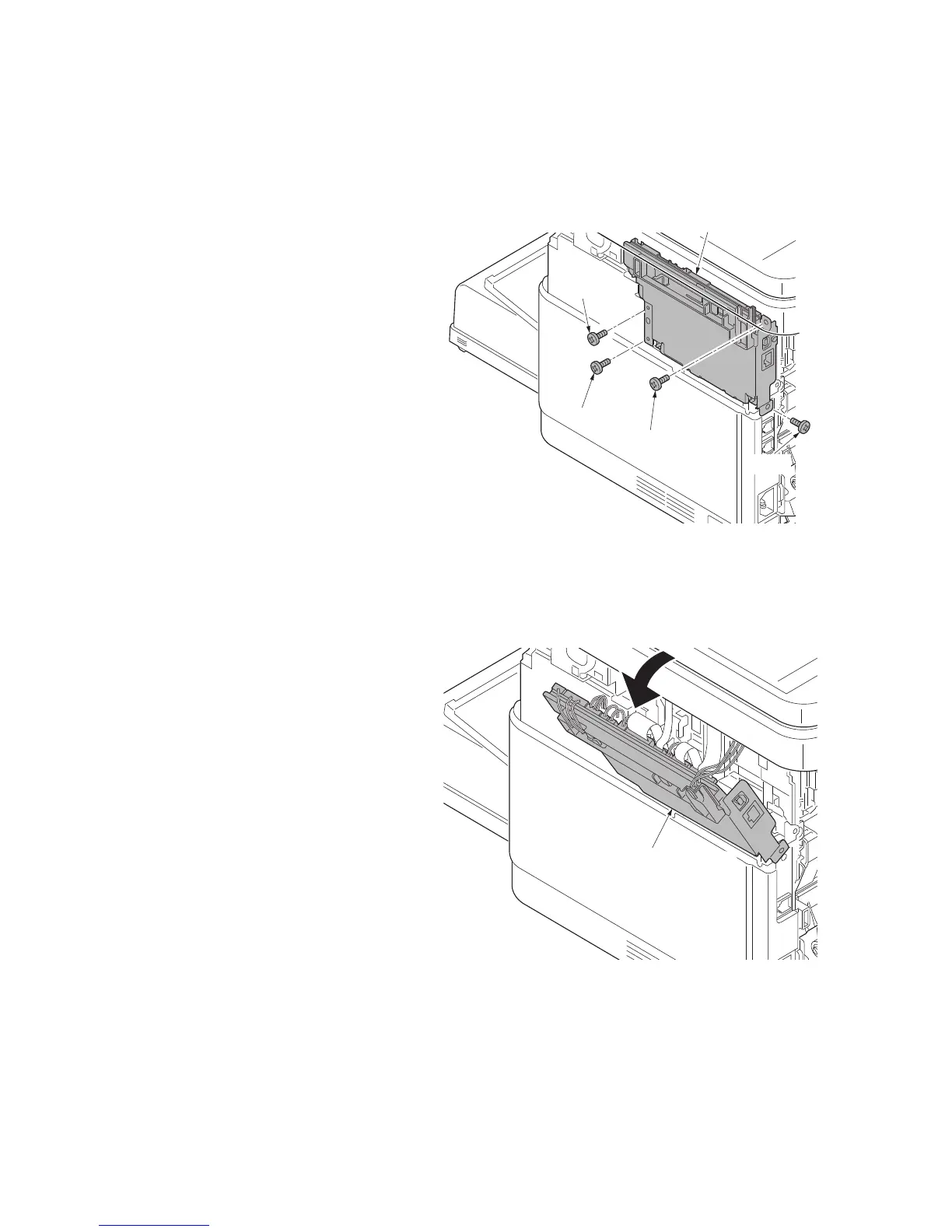

2. Remove four screws.
Figure 1-5-39
3. Turn the main PWB unit downwards.
Figure 1-5-40
Main PWB unit
Screw
Screw
Screw
Screw
Main PWB unit
