2M4/2M5/2M6/2M7
1-5-18
1-5-5 PWBs
(1) Detaching and refitting the main PWB
Procedure
1. Remove the right upper cover and rear
upper cover R (see page 1-5-3).
2. Remove four screws.

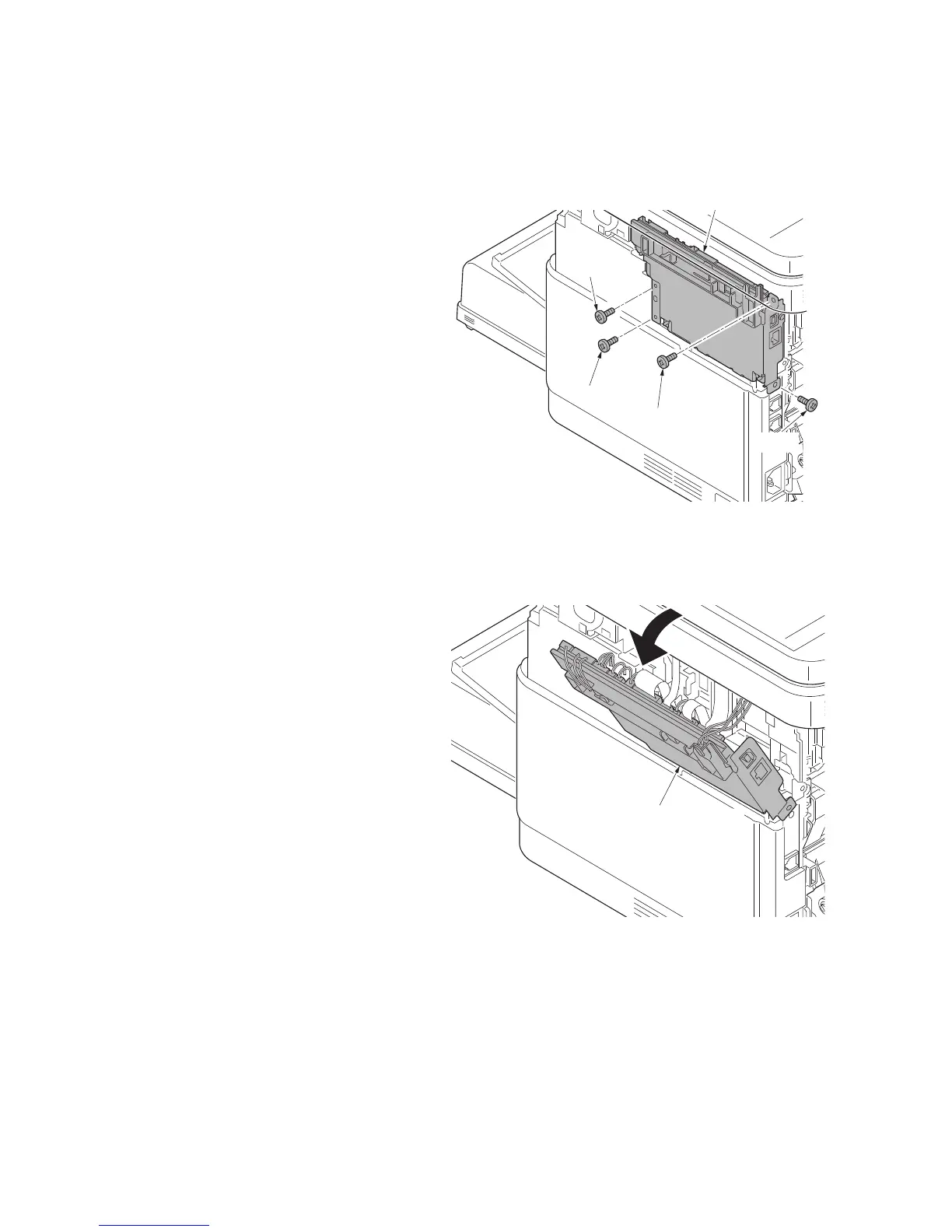

Figure 1-5-26
3. Turn the main PWB unit downwards.
Figure 1-5-27
Main PWB unit
Screw
Screw
Screw
Screw
Main PWB unit
