Kyocera ECOSYS FS-1020MFP User Manual

2M4/2M5/2M6/2M7
1-1-14
(2) 25/26 ppm Model

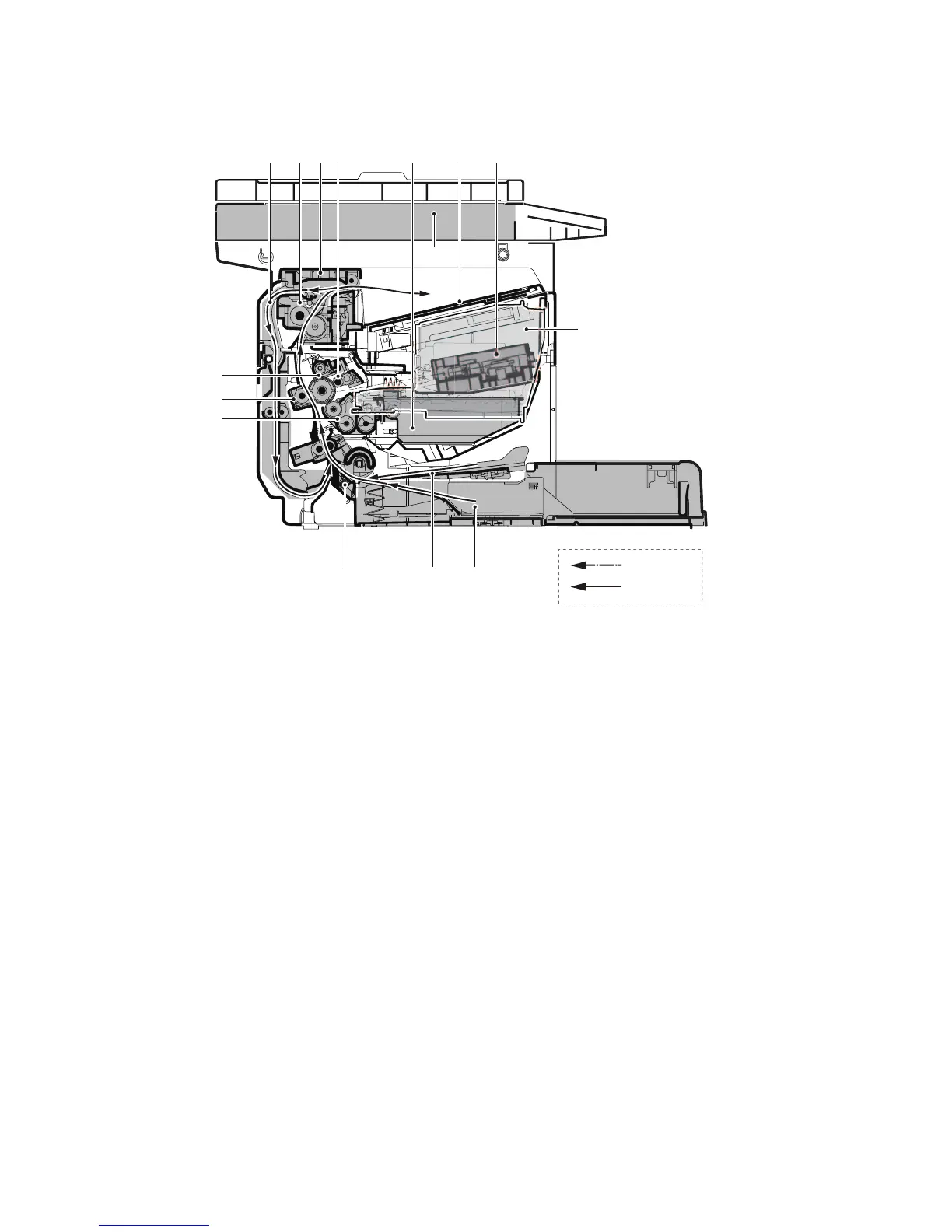

Figure 1-1-6
15
1
101211
2
7
6
5
9
8
14
4
13
3
Paper path
Light path
1. Cassette
2. Paper feed/conveying section
3. Manual feed tray
4. Toner container
5. Developing unit
6. Wast toner box
7. Drum charge roller
8. Drum unit
9. Transfer/separation section
10. Laser scanner unit
11. Fuser section
12. Feedshift/exit section
13. Duplex conveying section
14. Top tray
15. Scanner section
