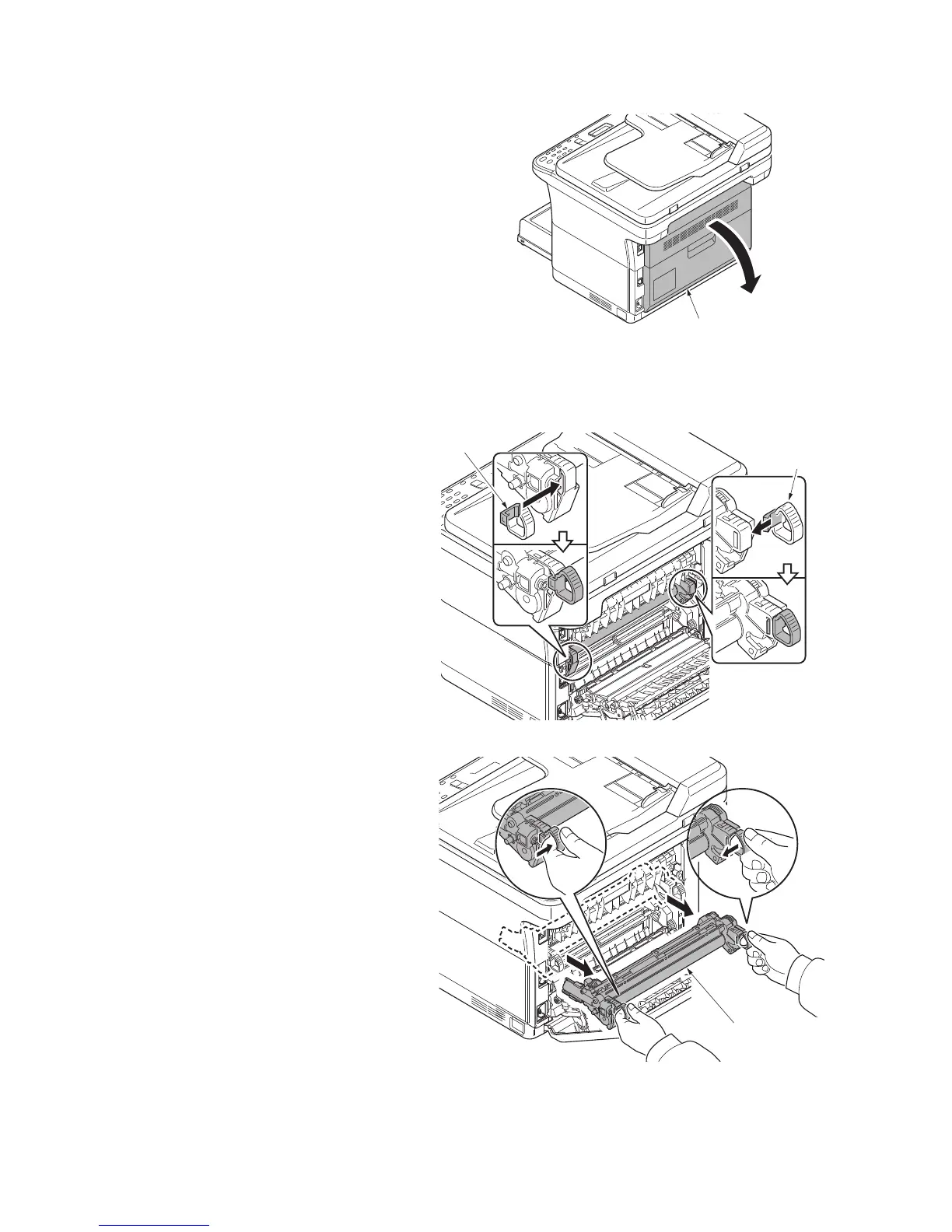

11. Open the rear cover.
Figure 2-4-10
(3) Detaching the Drum unit
Procedure
1. Insert the handles L and R supplied into
the left and right sides of the drum unit.
Figure 2-4-11
2. Holding the handles at both sides,
remove the drum unit.
Figure 2-4-12
Rear cover
Handle L
Handle R
Durm unit
