2M4/2M5/2M6/2M7-1
2-4-17
(12) Procedure for only replacing Drum unit
3 in 1 25/26 ppm model, 4 in 1 20/21,25/26 ppm model
Procedure
1. Open the rear cover.
2. Remove the drum unit.
(see page P.2-4-6)
3. Install the new drum unit in the
machine.
(see page P.2-4-13)
4. Close the rear cover.
5. Insert the power plug and turn the
power switch on.
6. Press the Menu key.
7. In the Menu. menu screen, press cursor
key to select System menu.Press the
OK key.
8. In the System menu screen, press cur-
sor key to select Adjust/ maint.. Press
the OK key.
9. In the Adjust maintenance menu
screen, press cursor key to select Ser-
vice Setting.Press the OK key.
10. In the Service Setting menu screen,
press cursor key to select New
Drum.Press the OK key.
* : If the Administrator ID entry display
appears, use the numeric keys to enter
the Administrator ID (4 digits) and press
OK key. The default setting is 2500 for
the 25/26 ppm model, 2000 for the 20/21 ppm model.

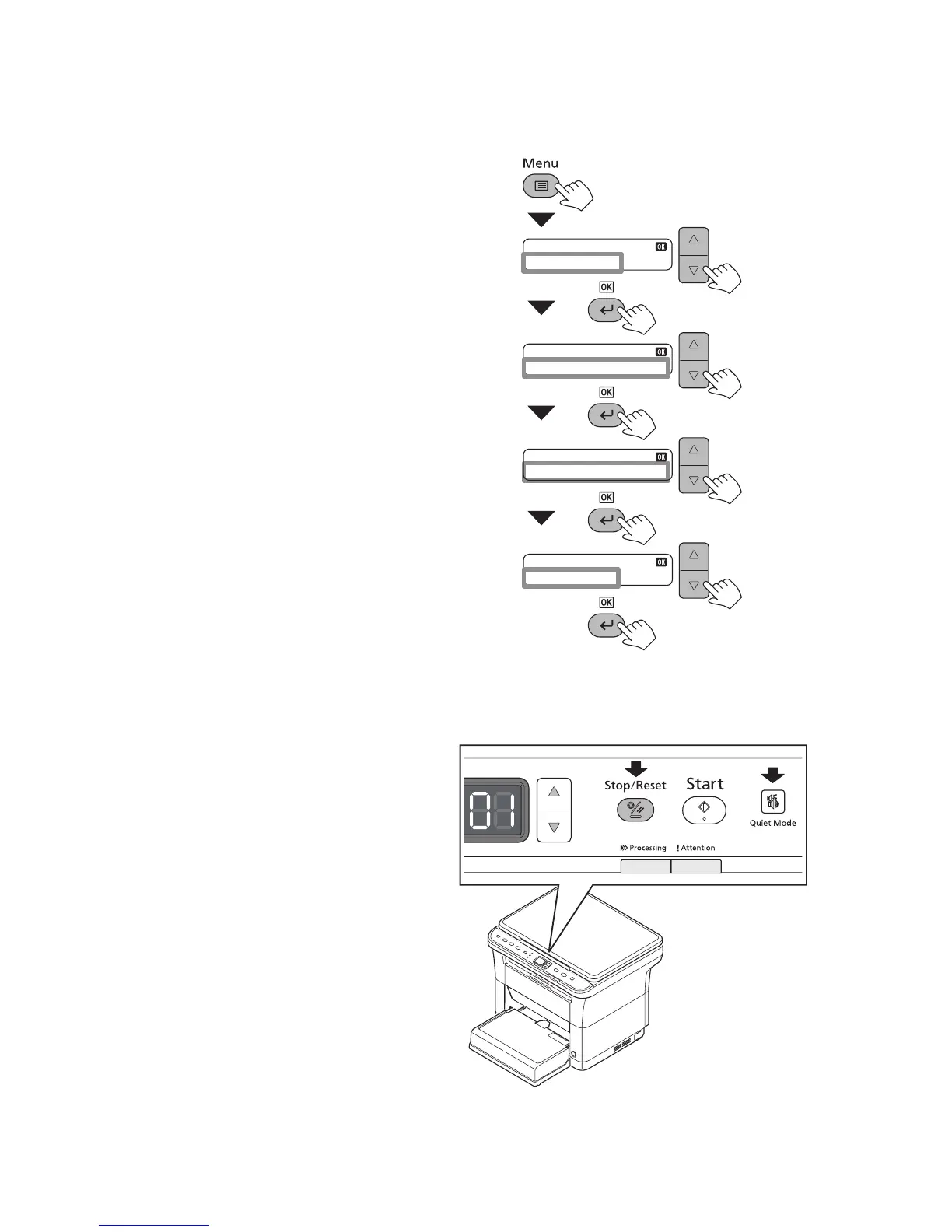

Figure 2-4-36
3 in 1 20/21 ppm model
Procedure
1. Open the rear cover.
2. Remove the drum unit.
(see page P.2-4-6)
3. Install the new drum unit in the
machine.
(see page P.2-4-13)
4. Close the rear cover.
5. Open the front cover.
6. Insert the power plug and turn the
power switch on.
7. Make sure the Processing indicator and
the Attention indicator are turned on,
press and hold both Stop/Reset and
Quiet Mode key for more than 5 sec-
onds.
8. Follow the same steps as step 3 and
later, Notice after replacing mainte-
nance kit.
Figure 2-4-37
Menu
: System Menu
System Menu
: Adjust /maint.
Adjust /maint.
: Service Setting
Service Setting
: New Drum
To Next Page
