Configuration
7-109
48XX/49XXSHB0399
7.8.2 Functions of the operation unit
4900Str087

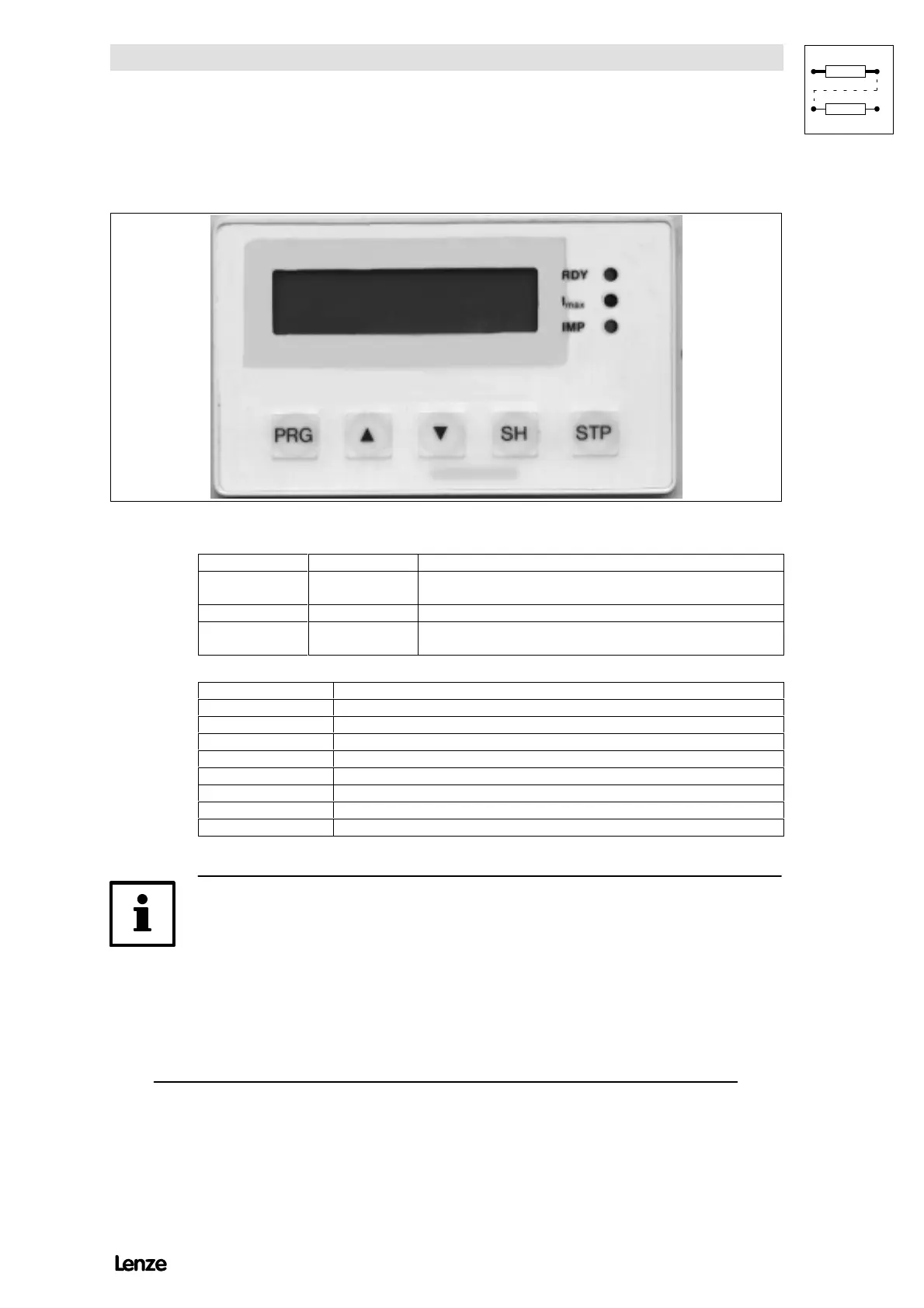

FIG 7-60 Front view: Operating unit with status display
LED
Colour Function
RDY green Ready for operation
notonintheeventofTRIP
Imax red on, if the speed controller operates at current limit
IMP yellow Pulse inhibit
on, if the controller is inhibited or message LU is displayed
Bedientaste Key function
PRG Change between code and parameter level
SH+ PRG Accept change
▲ Increase displayed value
SH+ ▲ Increase displayed value fast
▼ Decrease displayed value
SH+ ▼ Decrease displayed value fast
STP Inhibit controller
SH+ STP Enable controller
Note!
( ’SH +’
- PressandholdkeySH.
- Press second key indicated.
( Display
- The position of the arrow ”” indicates the current operating level
(code or parameter level).
