Automation
13-8
48XX/49XXSHB0399
f
m
c
a
d
b
n
e
k
4900Str092

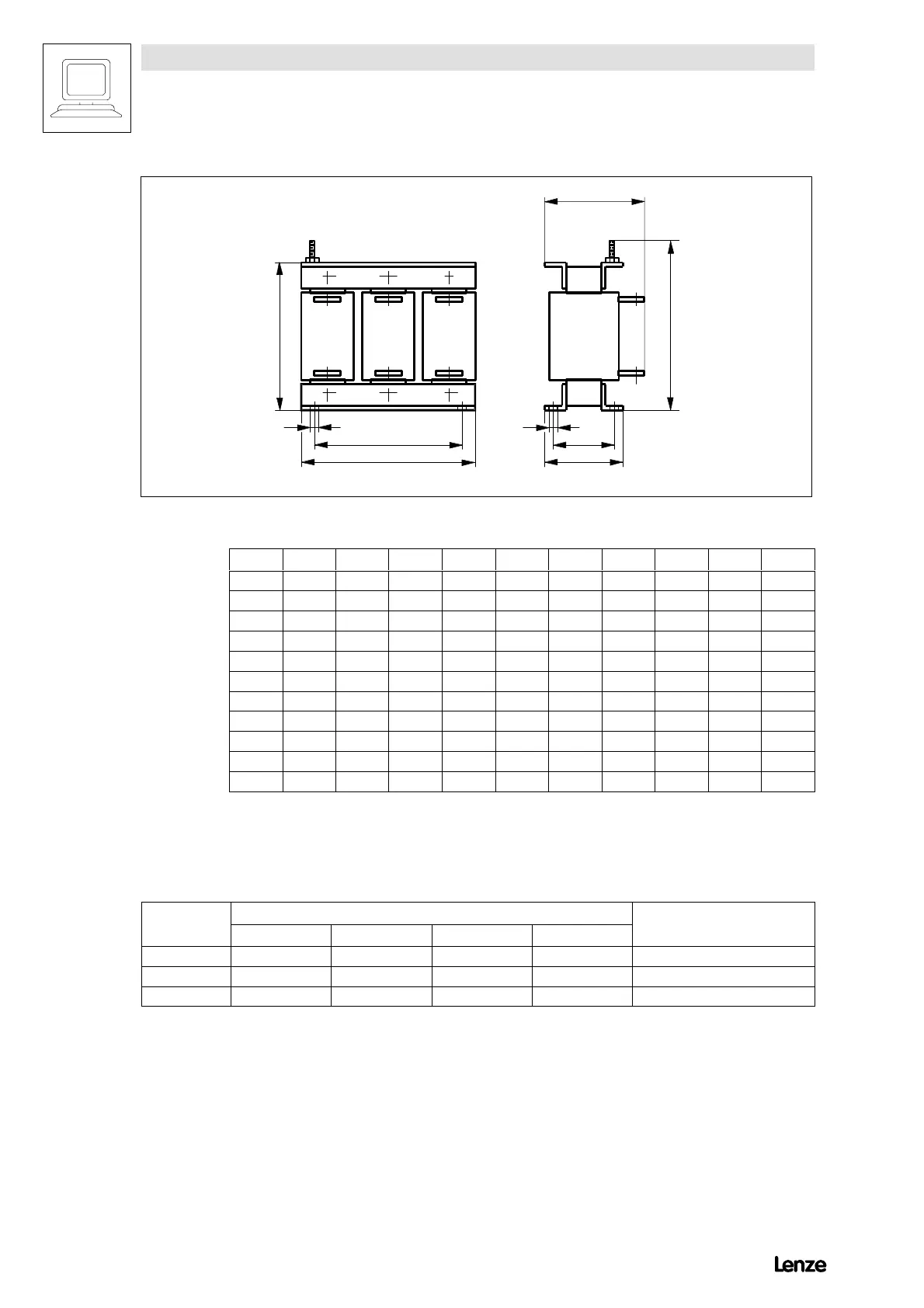

FIG 13-6 Mains chokes with connection lug
Type
FIG a b c d e f k m n
4902 FIG 13-5 120 65 109 51 162 110 80 5 10
4903 FIG 13-5 150 76 140 61 180 140 95 5 10
4904 FIG 13-5 180 91 161 74 225 165 120 6.3 11
4905 FIG 13-5 228 111 206 94 273 205 150 6.3 11
4906 FIG 13-5 264 128 240 107 257 237 166 8.3 16
4907 FIG 13-5 300 140 274 114 290 265 190 8.3 16
4X08 FIG 13-6 300 140 224 105 290 270 200 10 18
4X09 FIG 13-6 360 140 330 105 330 318 210 10 18
4X11 FIG 13-6 360 140 330 137 345 320 250 10 18
4X12 FIG 13-6 420 220 370 160 400 365 290 12 16
4X13 FIG 13-6 420 192 385 157 385 370 265 12 21
All dimensions in mm
13.2.2 Mains choke for separate supply of the field bridge
Type Rated data Order designation
L[mH] I[A] P
loss
1)
[W] m[kg]
4902 ... 4903 9 5 11 1.0 ELN1-0900H005
4904 ... 4X08 3.5 14 28 2.4 ELN1-0350H014
4X09 ... 4X13 0.98 35 35 2.9 ELN1-0009H035
1) for operation with rated current
