Installation
4-27
48XX/49XXSHB0399
4.3.9 Fieldbus connection
Note!
Special features of the controller variants V011 and V013:
1. The interface module 2110IB or 2130IB is integrated into the controller.
2. In the factory setting, the controllers are prepared for the separate mains
supply of power stage and control electronics:
- The bridges BR3, BR4, BR5 are not installed!
( Variant V011 with InterBus interface module
The interface module type 2110IB connects Lenze controllers with the fast serial
communication system InterBus. The module enables the highly dynamic transfer
of process data (e. g. setpoints and actual values) and access to all parameters
of the controller according to the DRIVECOM profile.
The InterBus communication is based on a ring concept. All bus participants are
required for communication. For applications which require a volt-free power
stage, a separate mains supply must be provided to ensure communication (see
chapter 4.3.3).
4900Str117

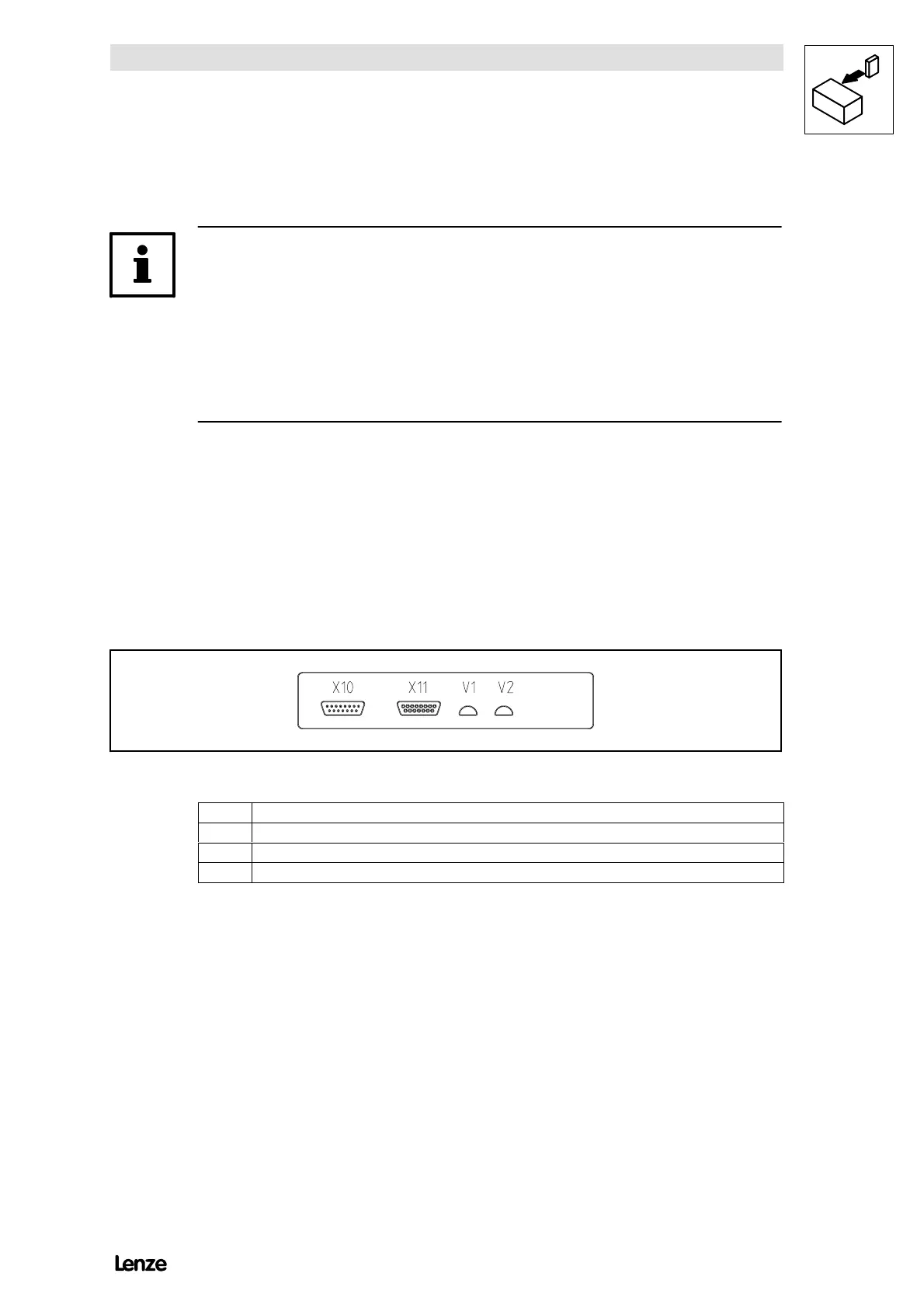

FIG 4-20 Front view 2110IB
X10
Input InterBus peripheral bus
X11 Output InterBus peripheral bus
V1 LED green, bus supply
V2 LED yellow, communication
