9300 Servo PLC
System blocks
2.6 ANALOG2_IO
2-18
L
ServoPLC EN 2.0

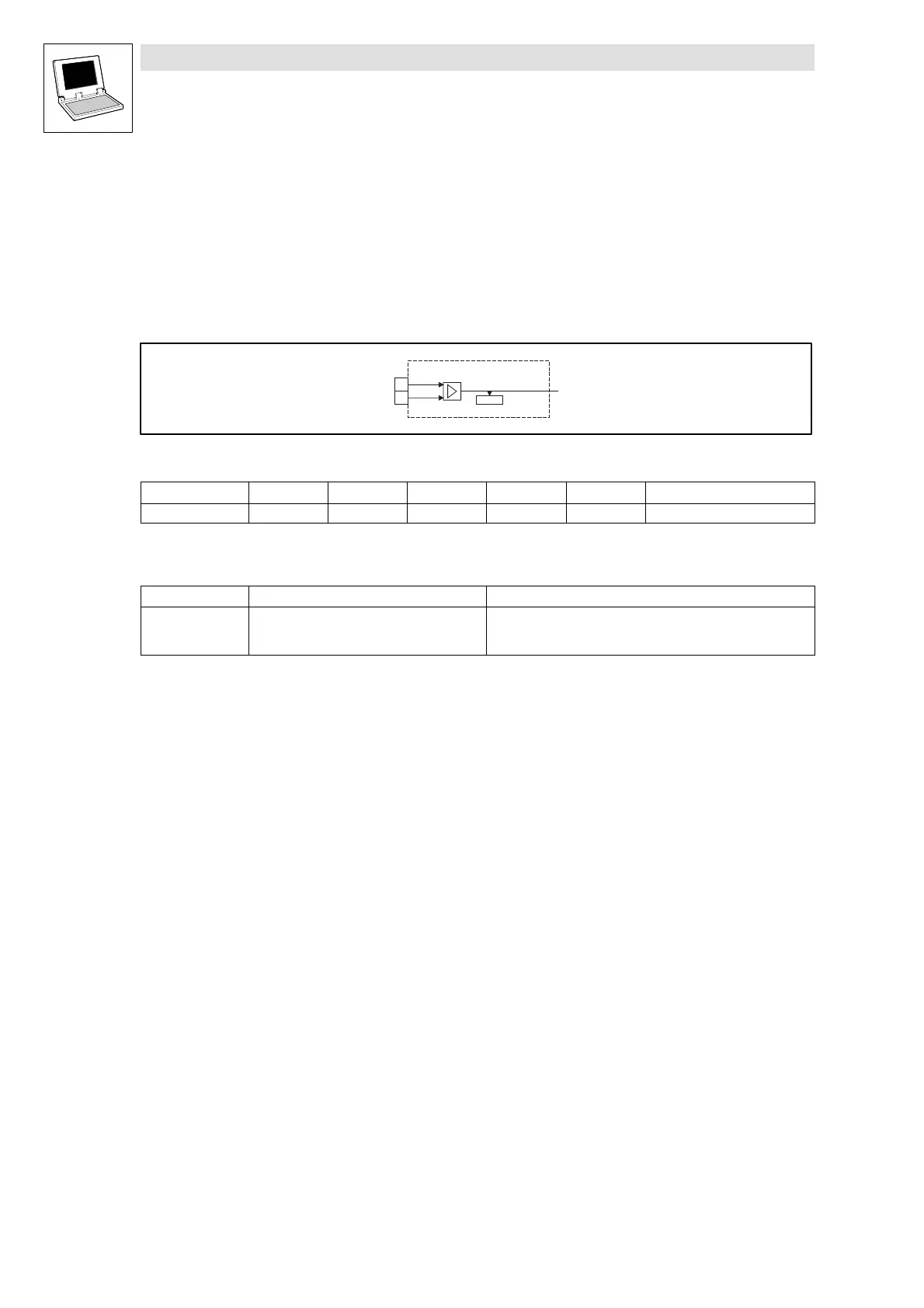

2.6 ANALOG2_IO
2.6.1 Inputs_ANALOG2
Analog input 2 (module number 12)
This SB forms the interface for analog difference signals via terminal X6/3, 4.
AIN1_nIn_a
Inputs_ANALOG2
C0405
3
4
X6
Fig. 2-10 Inputs_ANALOG2
VariableName
DataType SignalType Address DIS DIS format Note
AIN2_nIn_a Integer analog %IW12.0 C0405 dec [%] Analog input 2
Terminal assignment
Terminal Use Data
X6/3, 4 Differential master-vol tage input
(jumper X3 has no effect)
Level:
Resolution:
Normalisation:
-10V...+10V
5 mV (11 bit + sign)
±10 V ≡±16384 ≡±100 %
