9300 Servo PLC
System blocks
2.6 ANALOG2_IO
2-19
L
ServoPLC EN 2.0

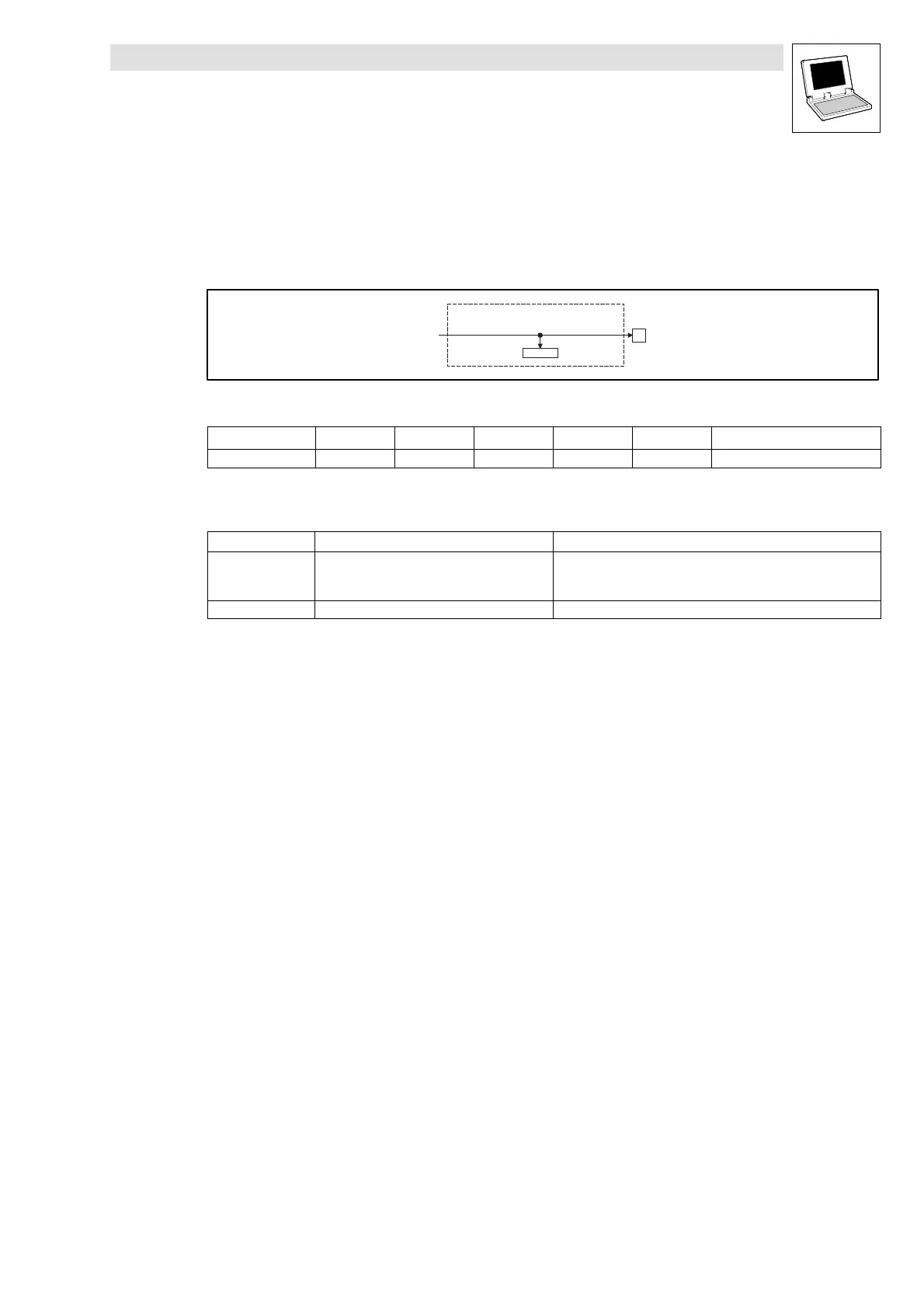

2.6.2 Outputs_ANALOG2
Analog output 2 (module number: 12)
You can use this SB as a monitor output. Internal analog signals can be output via terminal X6/63 as
voltage signals, and used, for example, as display or setpoints for following drives.
Outputs_ANALOG2
AOUT2_nOut_a
C0439/1
63
X6
Fig. 2-11 Outputs_ANALOG2
VariableName
DataType SignalType Address DIS DIS format Note
AOUT2_nOut_a Integer analog %QW12.0 C0439/1 dec [%] Analog output 2
Terminal assignment
Terminal Use Data
X6/63 Analog output 2 (monitor 2) Level:
Resolution:
Normalisation:
-10V...+10V(max.2mA)
20 mV (9 bit + sign)
±10 V ≡±16384 ≡±100 %
X6/7 Internal ground, GND -
