HDMI-3D-OPT series – User's Manual 30
Analog Audio Inputs

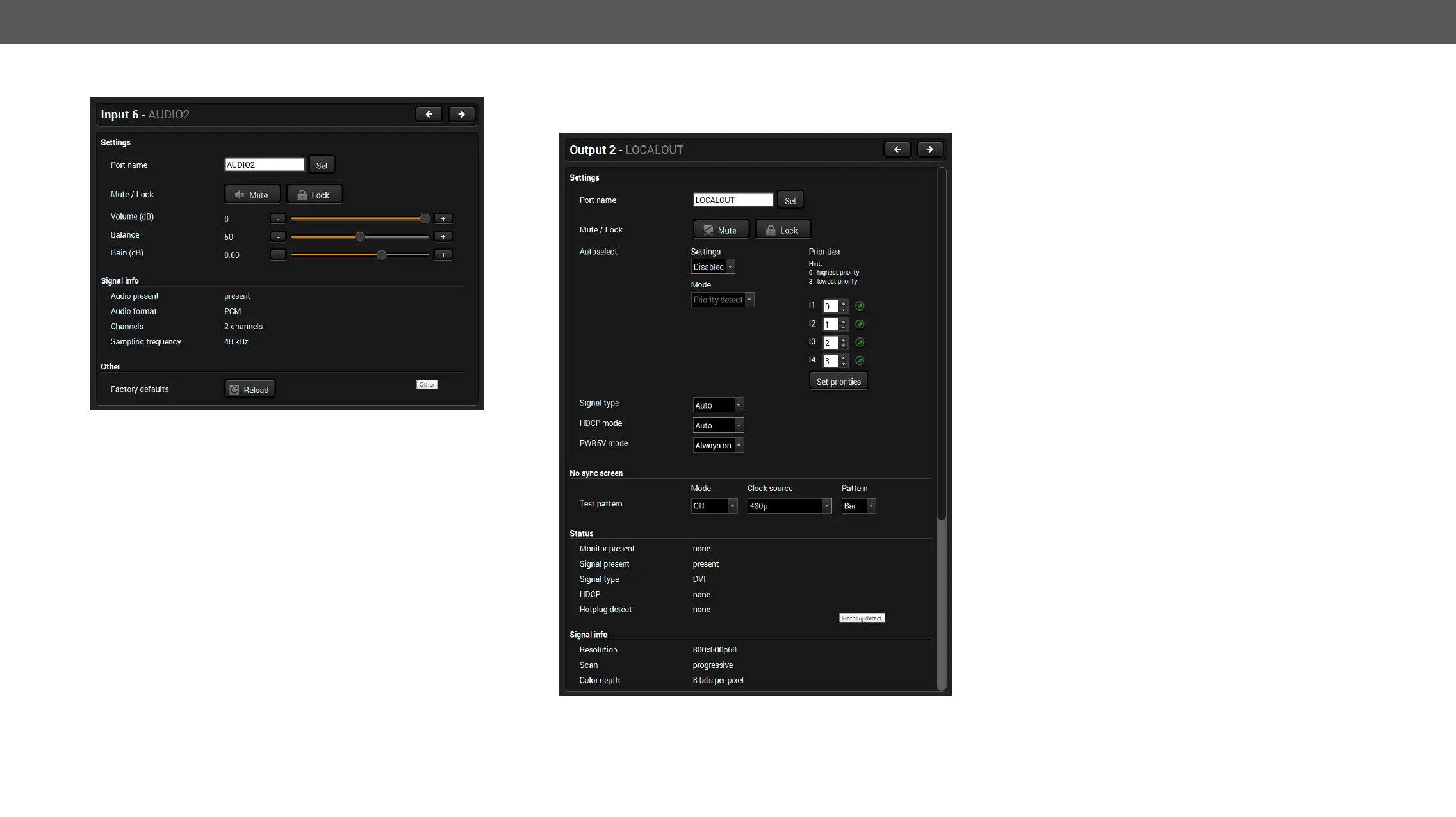

Port properties window of the Analog Audio 2 (Phoenix) input
Certain parameters of the analog audio input signal can be set as
follows:
▪
▪
▪
0 dB);
▪
▪ Gain: -12 to 6 dB, in step 3 dB (default is 0 dB);
▪ Reloading factory default settings for the selected port.
Video Outputs
Click on the output port to display its properties. The most important
information and settings are available from the panel.
Port properties window of the local HDMI video output
Available settings:
▪
▪
▪ Autoselect settings
more details about the feature in The Autoselect Feature
section);
▪ Signal type
be selected by a drop-down menu;
▪ HDCP mode
sent the signal without encryption if the content allows when
Auto mode is selected;
▪ Power 5V mode
the source and the sink devices be connected – independently
from the transmitted signal;
▪ Laser enable:
– On
communications are transmitted.
– Standby: only low-speed (serial, USB) communication is
transmitted.
▪ No sync screen
more details in the No Sync Screen (Test Pattern) section.
▪ Frame Detector;
▪ Reloading factory default settings for the selected port.
