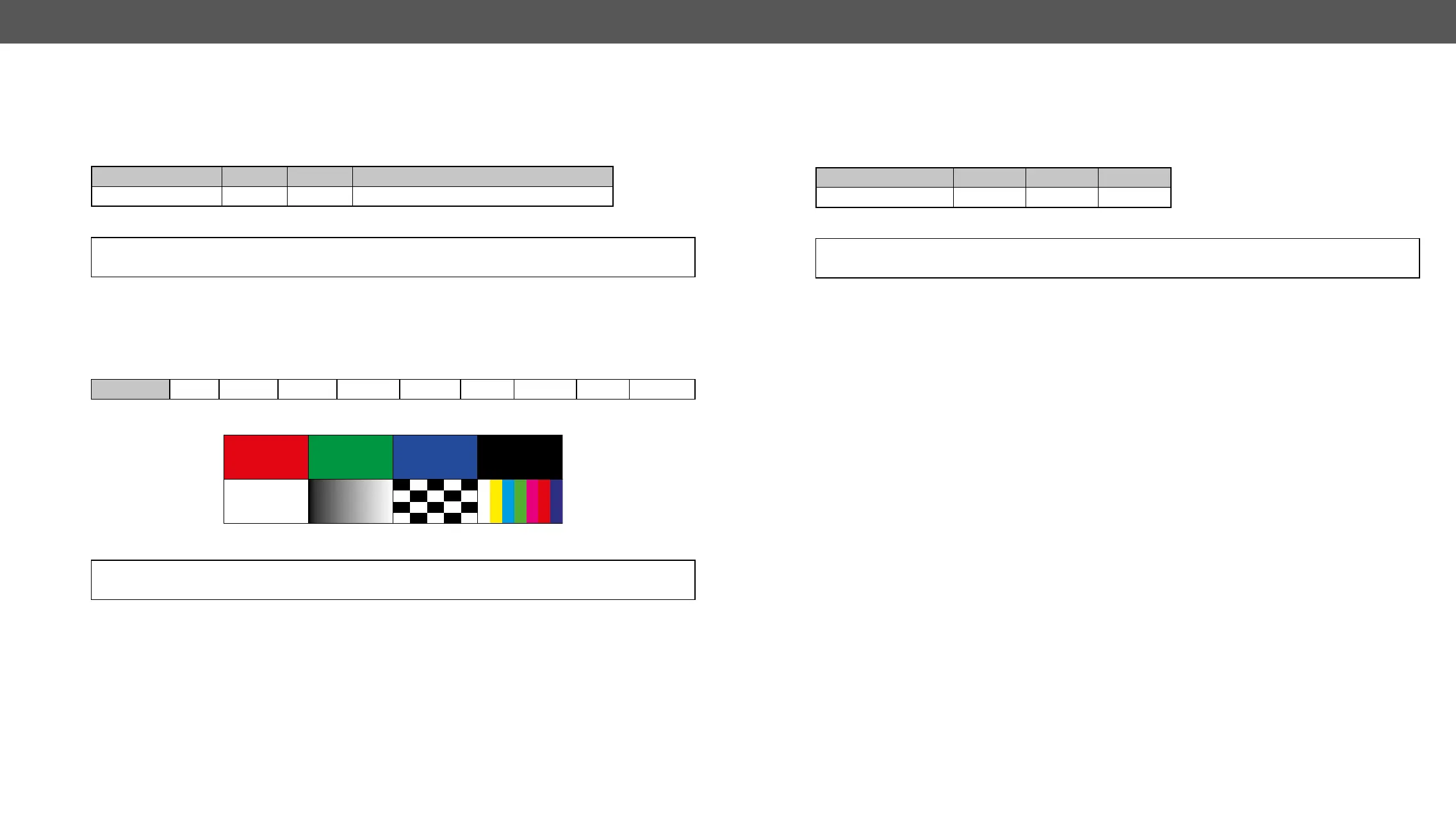

 HDMI-3D-OPT series – User's Manual 62

Command format: SET●
n

Response format: pw●
n

Parameters:
.TpgClockSource 480 576 EXT
Clock frequency 480p  External clock (from actual TMDS source)
Example:
˃ SET /MEDIA/VIDEO/O1.TpgClockSource=576
˂ pw /MEDIA/VIDEO/O1.TpgClockSource=576
Test Pattern
Command format: SET●
n

Response format: pw●
n

Parameters:
<pattern>
RED GREEN BLUE BLACK  RAMP CHESS BAR CYCLE
Cycle setting means all the patterns are changed sequentially approx. in every 2 seconds.
Example:
˃ SET /MEDIA/VIDEO/O1.TpgPattern=GREEN
˂ pw /MEDIA/VIDEO/O1.TpgPattern=GREEN

Command format: SET●
n

Response format: pw●
n

Parameters:
.HdmiModeSetting 0 1 2
HDMI mode Auto  HDMI
Example:
˃ SET /MEDIA/VIDEO/O1.HdmiModeSetting=2
˂ pw / MEDIA/VIDEO/O1.HdmiModeSetting=2




