LTH Electronics MXD70 Series User Manual

Installation
- 12 -
MXD70 pH / Redox
Setup and Operating Guide
Installation
SensorTalk Sensors Termination Information
The Smart pH / Redox input card of the MXD70 Series is capable of interfacing with the range of
SensorTalk pH / Redox electrodes from Broadley James Corporation. This allows the user to take
advantage of the unique calibration functionality these sensors provide. Please note, when
unplugging an existing SensorTalk sensor from the instrument please wait for the probe is removed
message to appear before attaching a different sensor.

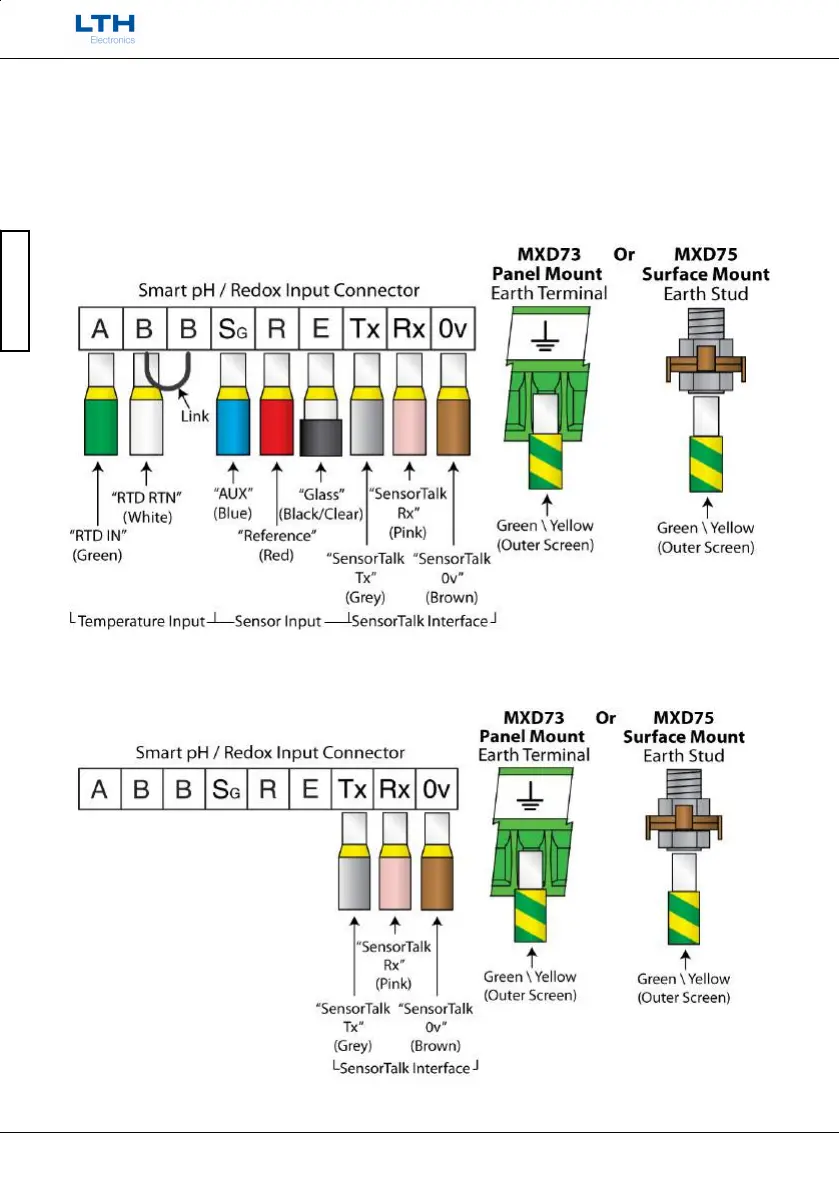

Hybrid SensorTalk Probe Cable Connection Details
(Solution Ground Fitted)
Digital SensorTalk Probe Cable Connection Details
