Channel Setup
MXD70 Electrodeless Conductivity
Setup and Operating Guide
- 15 -

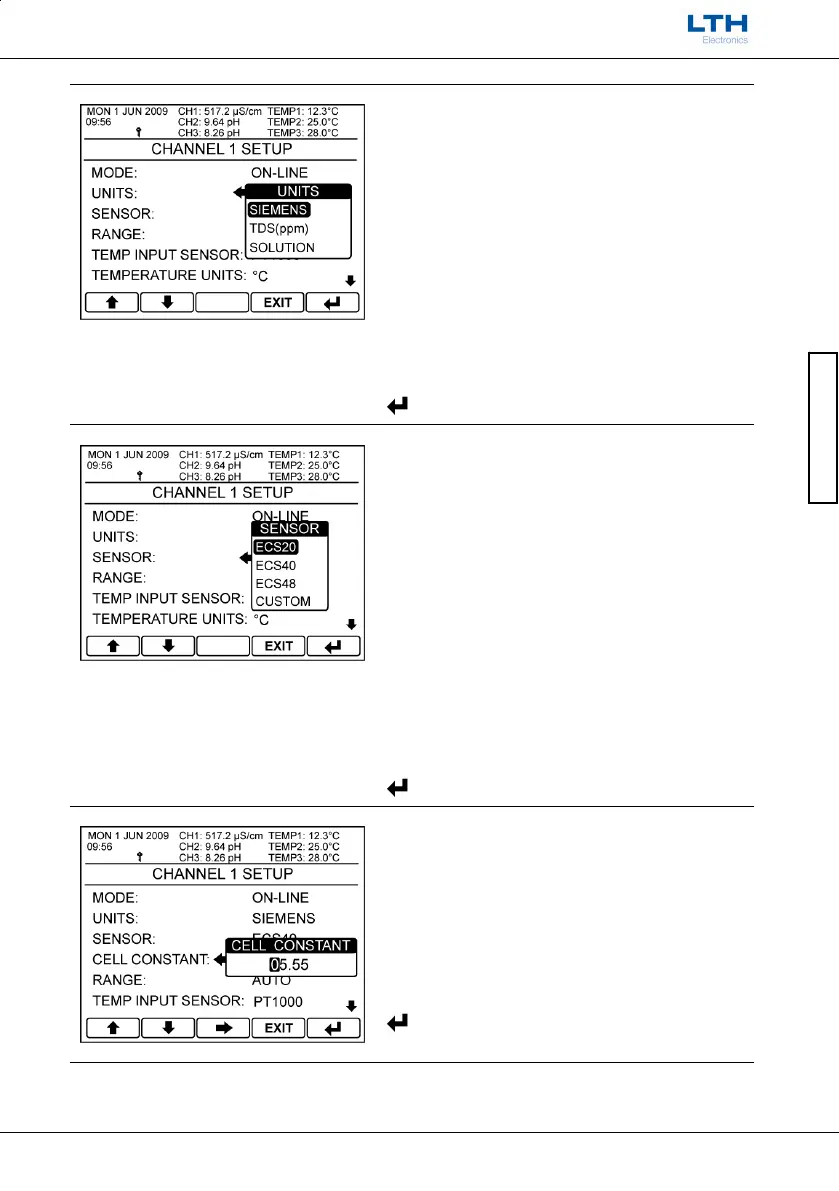

Channel Setup
Units
The channel can be setup to display conductivity in
Siemens/cm, TDS (Total Dissolved Solids) in ppm, or
Solution.
When solution is selected the channel will
automatically apply the correct conversion and
temperature conversion and display the
concentration as “%” with an indication of the
solution type selected (see range selection).
/ – Select Option
EXIT
– Cancel
– Save Selection
Sensor Type
The electrodeless conductivity input can use either
the ECS20, or all of the ECS40 series sensors.
Selecting the appropriate sensor will configure the
instrument with the correct nominal cell constant. If
the sensor type is not shown selecting custom will
allow a manual cell constant to be entered.
! A Sensor loop calibration must be
performed when a new sensor is attached
to the instrument or the sensor cable is
changed; see page 27 for details.
/ – Select Option
EXIT
– Cancel
– Save Selection
Cell Constant
Allows manual entry of the sensor cell constant if
custom is selected in the sensor type menu.
/ – Increase / Decrease Digit
– Select Next Digit
EXIT
– Cancel
– Save Value
To Next Page
