LTH Electronics MXD70 Series User Manual

Setpoints
- 6 -
MXD70 Setpoints, Current Outputs, and
Digital Inputs Configuration Guide

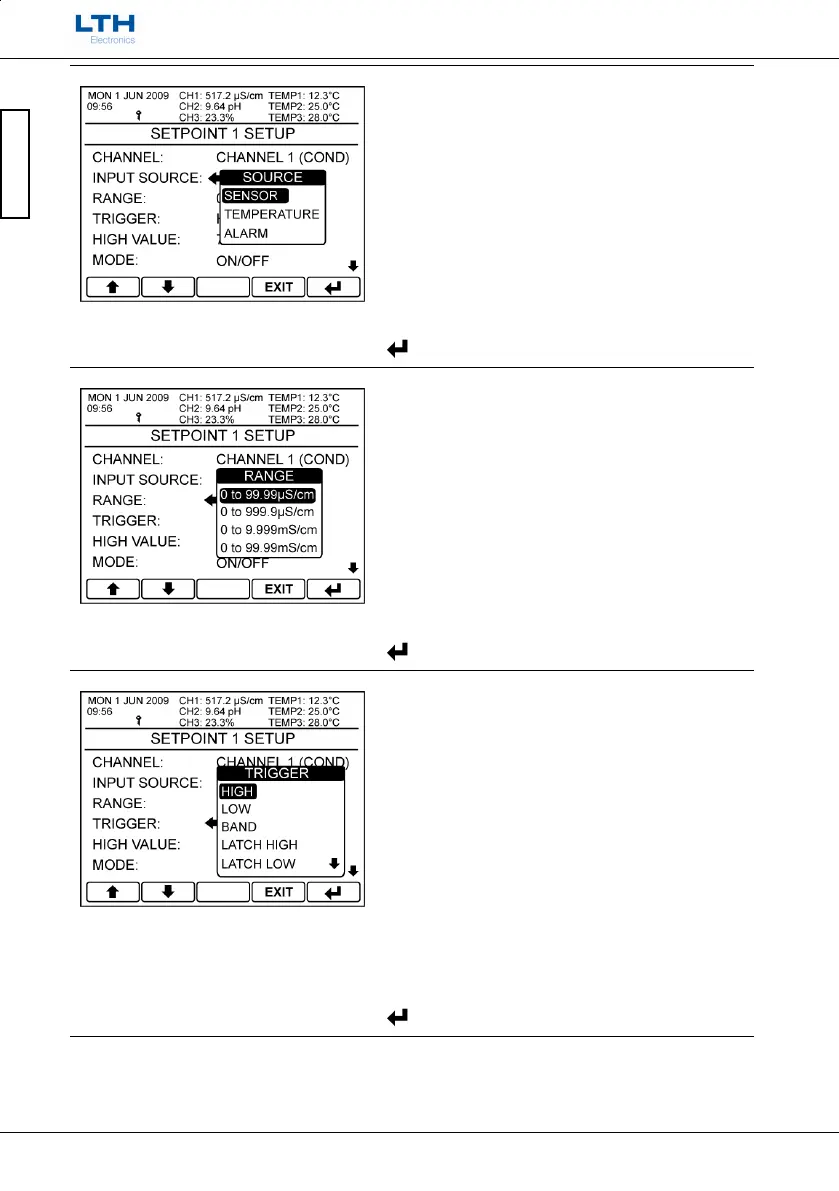

Setpoints
Input Source
The input source for the selected setpoint.
Available options vary depending on whether the
appropriate source is enabled in the channel’s setup
menu.
Alarm option – see the setpoint alarm mode section.
Cleaning option – see the setpoint cleaning mode
section (not available on all input card types.)
/ – Select Option
EXIT
– Cancel
– Save Selection
Range
The setpoint’s operating range.
This is only available if the associated Sensor Input
Channel has a range option and is set to Auto in the
channel’s setup menu.
The available options will depend on the cell
constant of the sensor used, consult the input card’s
manual for more information.
/ – Select Option
EXIT
– Cancel
– Save Selection
Trigger
The setpoints can be configured to trigger in the
following ways:
 High
 Low
 Band
 Latch High
 Latch Low
 USP (Conductivity Only – see Conductivity manual
for information)
/ – Select Option
EXIT
– Cancel
– Save Selection
