Connections
MXD75 Installation Guide
- 25 -
Connections
Current Output Connections
The MXD75 can be supplied with up to 6 current outputs designated A to F, which can
terminate into a load resistance not exceeding 750. For best noise immunity use a
screened twisted pair cable, with the screen connected to Earth at one end. Use a
sufficiently large cable to avoid a high resistance in the overall current loop.

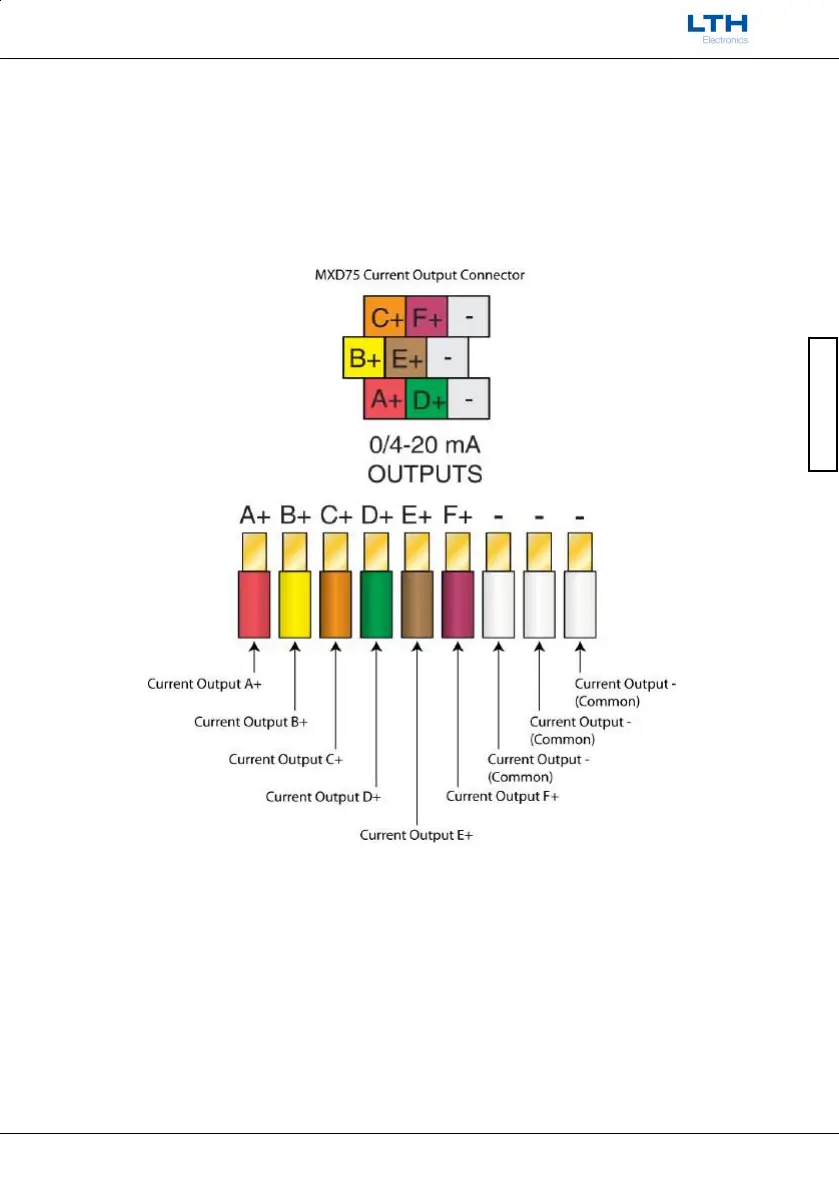

MXD75 Surface Mount Current Output Connection Detail.
(N.B. Available Current Outputs Varies Depending Upon Instrument Configuration)
