Digital Inputs

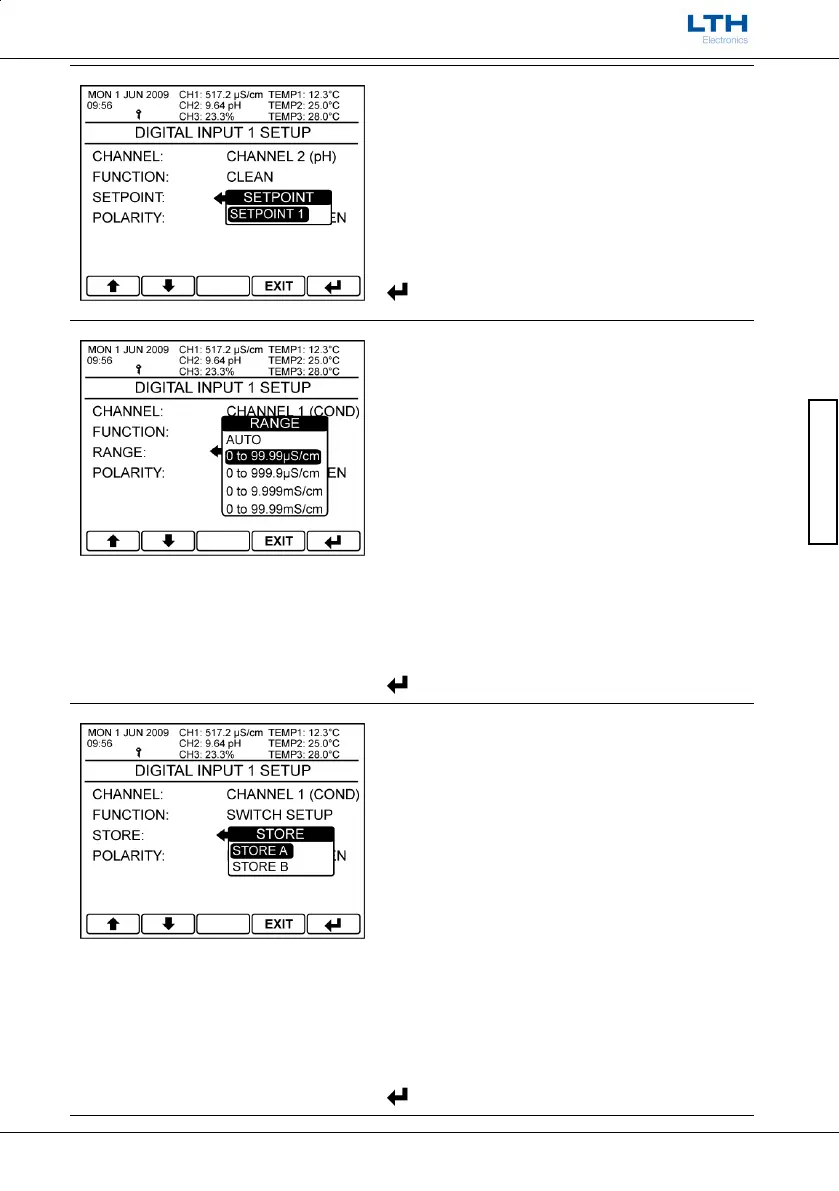

Clean
If the selected Input Sensor Channel has a setpoint
configured for a cleaning operation, a external
cleaning cycle can be initiated using this function.
/ – Select Option
EXIT
– Cancel
– Save Selection
Range Changing
The digital input is used to change the displayed
range of the selected sensor input channel. This also
affects the operating range of both the setpoints and
current outputs associated with the sensor input
channel. When Auto is selected the setpoints and
current outputs will revert to the internally set
ranges.
The available options will depend on the cell
constant of the sensor used, consult the input cards
manual for more information.
Note – This is only available if the associated Sensor
Input Channel has a range option.
/ – Select Option
EXIT
– Cancel
– Save Selection
Switch Setup
The digital input is used to load in an alternative
sensor input channel configuration (Sensor Setup,
Setpoint Setup and Current Output Setup) that have
been stored in one of the two internal channel stores.
Whilst the digital input is active no parameters
assigned to the sensor input channel can be edited.
The original configuration is restored upon the digital
input going inactive.
For information regarding saving the setup, see the
Save and Restore section of the user interface guide.
NOTE – Only one store at a time can be loaded per
channel.
/ – Select Option
EXIT
– Cancel
– Save Selection
