You can fold the rear bench seat fully forwards.
X
Remove the head restraints (Y page 108).
X
To fold down the seat backrest (table
position): pull backrest release handle : up
and fold forward.
X
Pull release handles for rear seat anchor-
age ; up and tilt the rear bench seat.
X
Grasp rear bench seat grab handles = and
fold the seat forwards.
Removing/fitting the rear bench seat
Standard rear bench seat and seat/bunk
combination
G
WARNING
If the rear bench seat is not fully engaged, it
may be thrown about while the vehicle is mov-
ing. There is a risk of an accident and injury.
Always make sure that the rear bench seat is
fully engaged as described.
The only way to ensure that the rear bench seat
will engage securely is to always keep the seat
anchorages clean and free of foreign objects.
You can only fit the rear bench seats in the face-
to-face position if the vehicle floor has four seat
anchorages in the first row of rear seats or has a
seat rail system.
On vehicles with three seat anchorages for each
row of rear seats, it is not possible to lock all the
seat legs in the face-to-face position.
A seat/berth combination may not be fitted in
the face-to-face position.
Always observe the notes about the seating var-
iants (Y page 97).
:

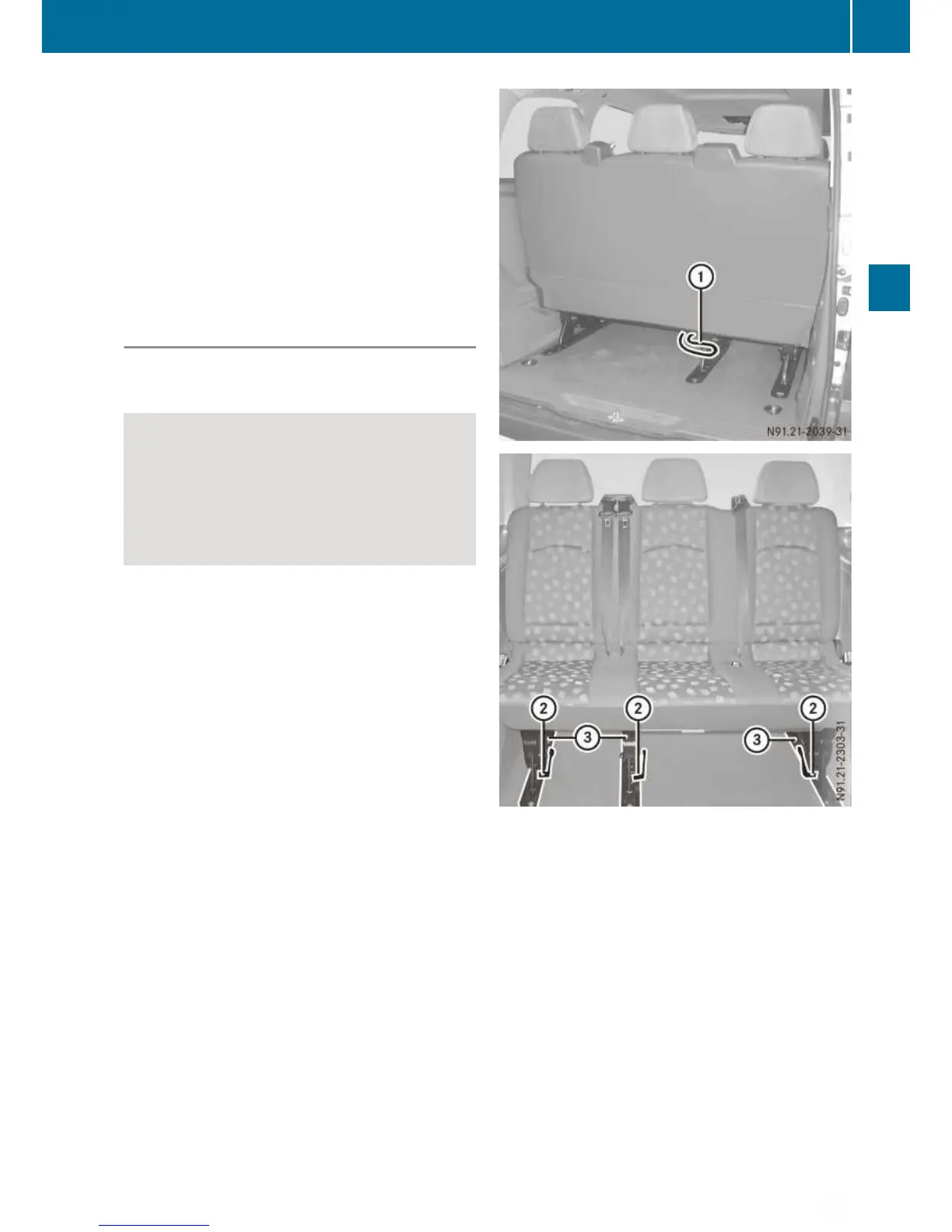

Release handle for rear seat anchorage
;
Release handle for front seat legs
=
Seat anchorages
i
On vehicles with a seat rail system, only
carry out the release, removal and subse-
quent replacement of a rear bench seat at the
basic position marked (Y page 100).
X
To remove: on a seat/bunk combination,
remove the stowage compartments
(Y page 304) and if necessary, remove the
bed extension (Y page 106).
X
Make sure that all carriages for the fore-and-
aft adjustment of a seat/bunk combination
engage audibly on both sides.
It should not be possible to move the seat/
berth combination.
Seats
103
Seats, steering wheel and mirrors
Z
