R
Have lamps with LED bulbs repaired at a quali-
fied specialist workshop only.
R
Have the bulbs of the following lamps
replaced at a qualified specialist workshop
only:
-
additional brake lamp
-
the licence plate lighting
-
front foglamps
Please also observe the notes on the interior
lights (Y page 121).
If you require assistance changing bulbs, con-
sult a qualified specialist workshop.

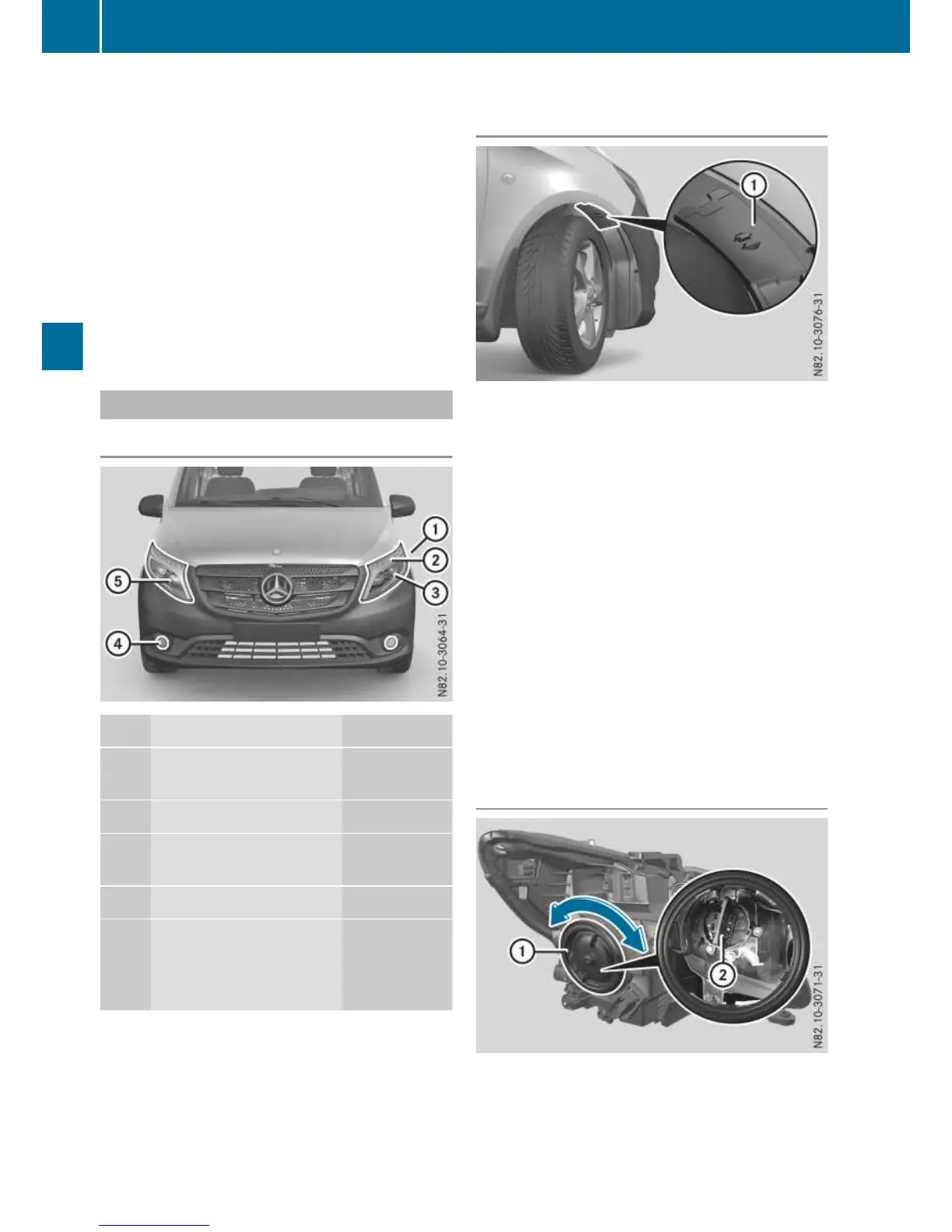

Front lamp clusters
Overview of bulb types
Lights Bulb type
:
Side-mounted addi-
tional turn signal lamp
WY 5 W
;
Turn signal PY 21 W
=
Dipped-beam head-
lamps
H7 55 W
?
Front foglamps H11 55 W
A
Main-beam headlamp/
side lamps/parking
lamps/daytime driving
lamps
H15 55 W/
15 W
Fitting/removing the cover on the front
wheel arch
X
To remove: switch off the lighting system.
X
To change a bulb set in the left headlamp, turn
the steering wheel clockwise as far as it will
go. To change a bulb in the right headlamp,
turn the steering wheel anti-clockwise as far
as it will go.
The space in front of the cover in the front
wheel arch then becomes greater.
X
Grip cover : in the middle.
X
Slide cover : upwards, remove and let it
hang from the strap.
X
To fit: if necessary, remove dirt from cover :
and the opening in the wheel arch.
X
Insert cover : at the top and thread the
cover strap through the opening in the wheel
arch.
X
Slide cover : down as far as it will go .
Dipped-beam headlamps
View from inside (example: left headlamp)
X
Remove the cover in the front wheel arch
(Y page 124).
X
Turn housing cover : anti-clockwise and
remove it.
124
Replacing bulbs: vehicles with halogen headlamps
Lights and windscreen wipers
