X
Turn socket ; for dipped-beam headlamps
anti-clockwise and remove.
X
Remove the bulb from socket ;.
X
Insert a new bulb into socket ;.
X
Insert socket ; and tighten by turning clock-
wise.
X
Press on housing cover : and tighten by
turning clockwise.
X
Replace the cover in the front wheel arch
(Y page 124).

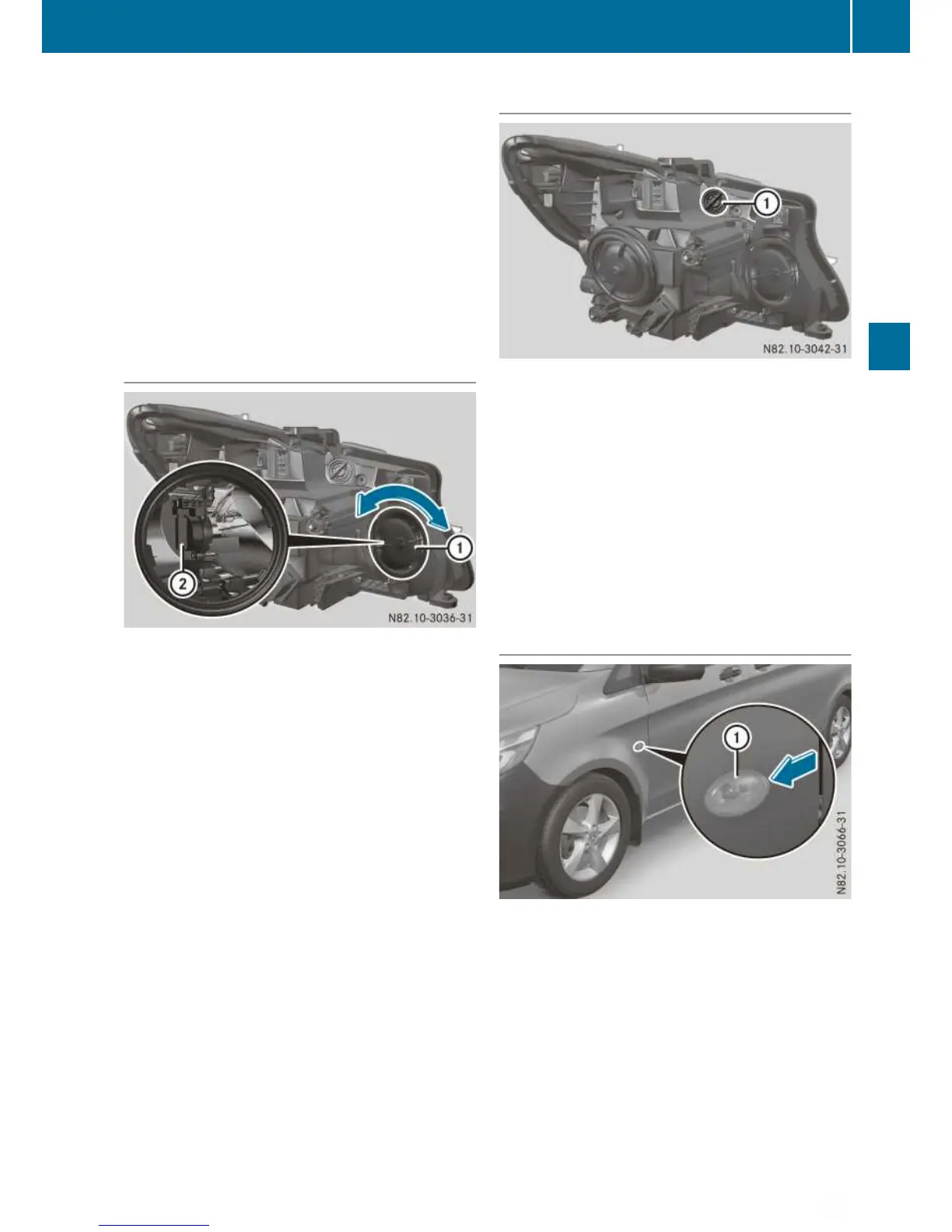

Main-beam headlamp/side lamps/
parking lamps/daytime driving lamps
View from inside (example: left headlamp)
X
Switch off the lighting system.
X
Open the bonnet.
X
Turn housing cover : anti-clockwise and
remove.
X
Pull out the bulb together with socket ;.
X
Insert the new bulb with socket ; and
engage it as far as the stop.
X
Position housing cover : and tighten by turn-
ing clockwise.
X
Close the bonnet.
Turn signal
View from inside (example: left headlamp)
X
Switch off the lighting system.
X
Open the bonnet.
X
Turn socket : anti-clockwise and remove.
X
Pull bulb out of socket :.
X
Insert a new bulb into socket :.
X
Insert socket : and turn it clockwise until it
engages.
X
Close the bonnet.
Side-mounted additional turn signal
lamp
The additional turn signals are mounted on the
side of the vehicle's front wings.
X
Switch off the lighting system.
X
Slide additional turn signal : forwards and
swing it out.
X
Press the bulb to the rear.
X
Apply light pressure to the bulb, turning it anti-
clockwise and remove it from the socket.
X
Press the new bulb into the socket and screw
it in clockwise.
X
Attach additional turn signal : at the front
and engage.
Replacing bulbs: vehicles with halogen headlamps
125
Lights and windscreen wipers
