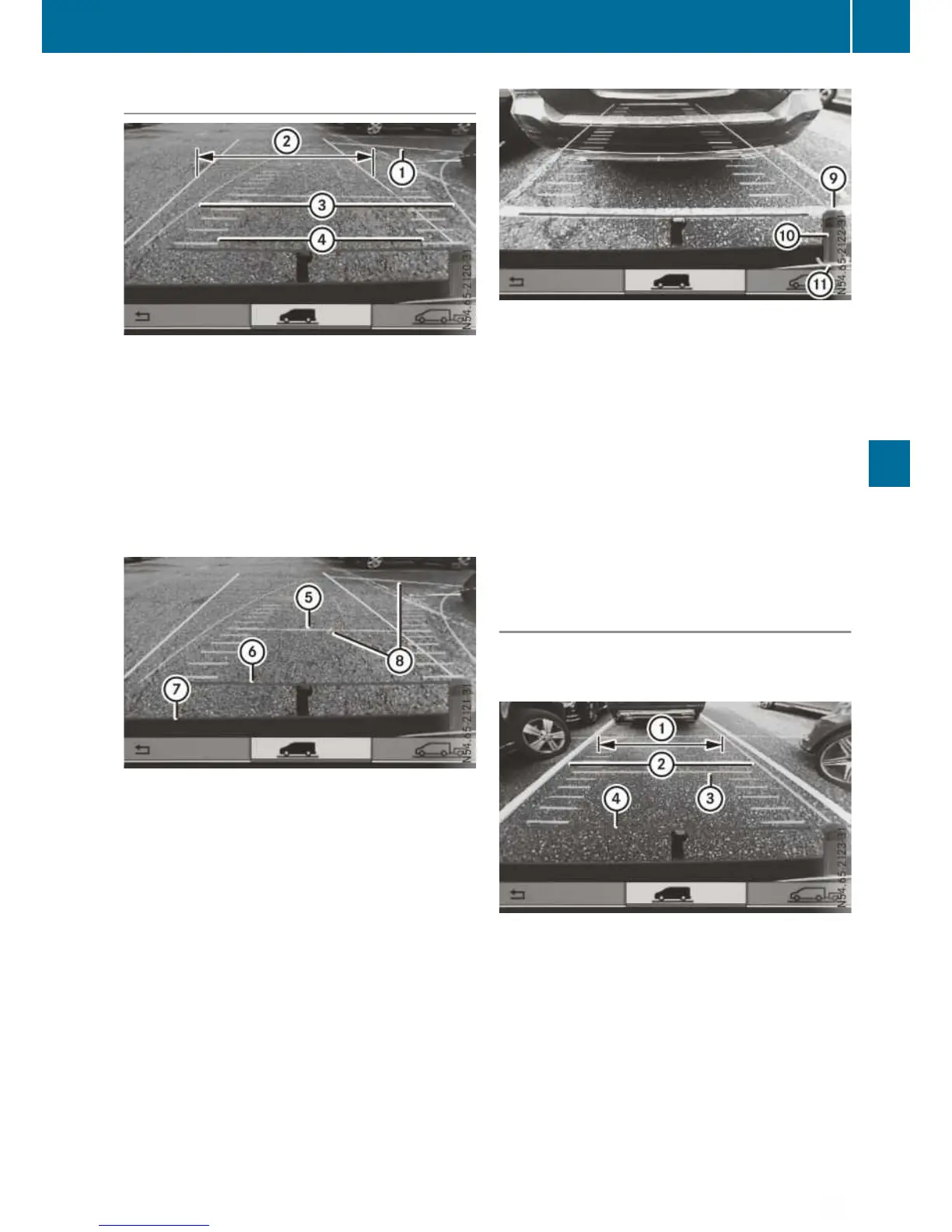

Displays in the audio display
:
Yellow guide line at a distance of approx-
imately 4.0 m from the rear of the vehicle
;
White guide line without turning the steering
wheel, vehicle width including the exterior
mirrors (static)
=
Yellow guide line for the vehicle width
including the exterior mirrors, at the current
steering angle (dynamic)
?
Yellow lane marking the course the tyres will
take at the current steering angle (dynamic)
A
Yellow guide line at a distance of approx-
imately 1.0 m from the rear of the vehicle
B
Red guide line at a distance of approximately
0.30 m from the rear of the vehicle
C
Bumper
D
Vehicle centre axis (locating aid)
The guide lines are shown when the transmis-
sion is in position R or when the reverse gear is
engaged.
The distance specifications only apply to
objects that are at ground level.
PARKTRONIC warning displays for vehicles with
Active Parking Assist
E
Front warning displays
F
Vehicle symbol as PARKTRONIC measure-
ment operational readiness indicator
G
Rear warning displays
When PARKTRONIC is switched on and is opera-
tional (Y page 202) in vehicles with Active Park-
ing Assist, the camera image shows vehicle
symbol F. When the PARKTRONIC warning dis-
plays go on, warning displays E and G light up
accordingly as red or yellow brackets around
vehicle symbol F.
"Reverse parking" function
Reversing straight into a parking space
without turning the steering wheel
:
White guide line without turning the steering
wheel, vehicle width including the exterior
mirrors (static)
;
Yellow guide line for the vehicle width
including the exterior mirrors, at the current
steering angle (dynamic)
=
Yellow guide line at a distance of approx-
imately 1.0 m from the rear of the vehicle
?
Red guide line at a distance of approximately
0.30 m from the rear of the vehicle
Driving systems
211
Driving and parking
Z
