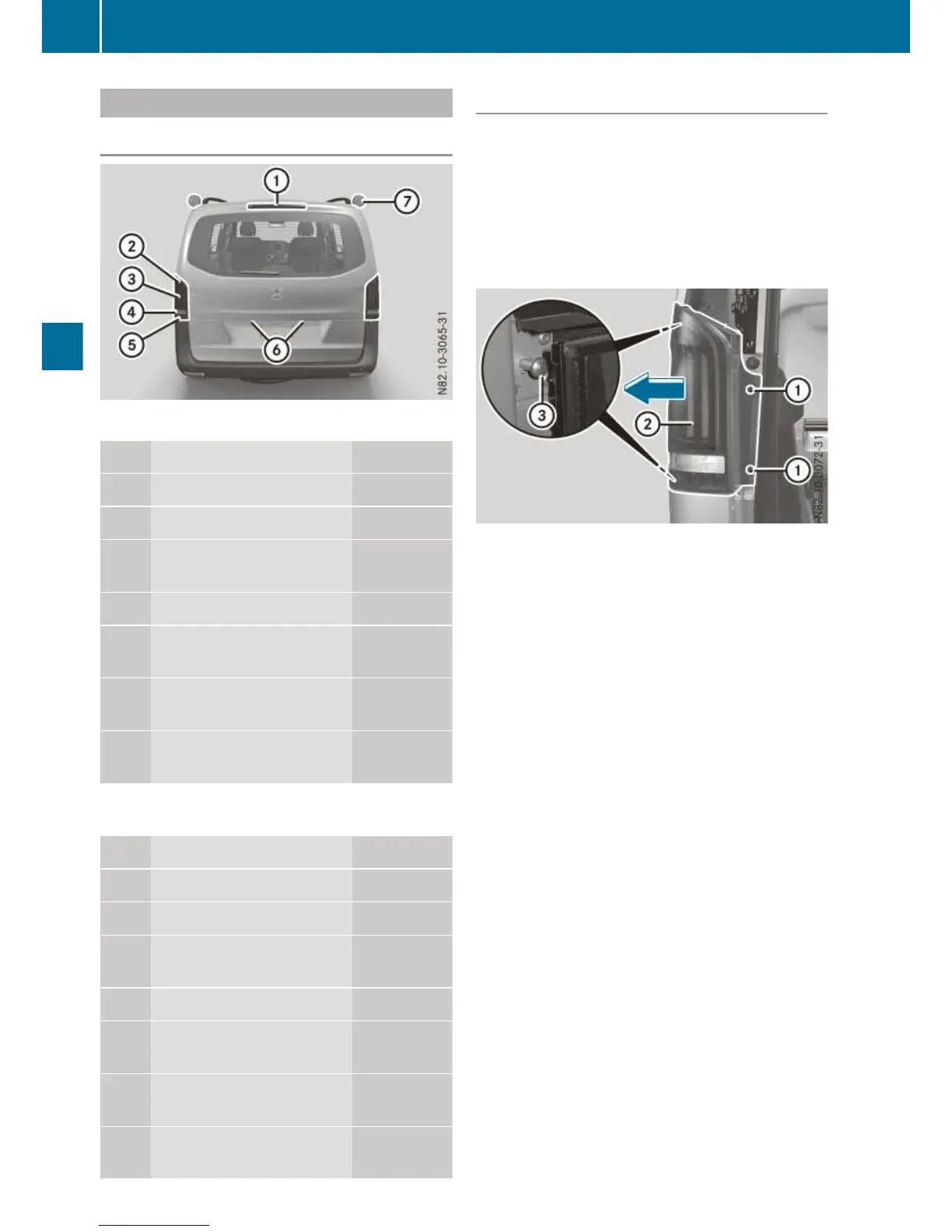

Replacing the rear lamp clusters
Overview of bulb types
Standard tail lamp
Lights Bulb type
:
Third brake lamp LED
;
Turn signal P 21 W
=
Brake lamp, tail lamp/
parking lamp
P 21 W
?
Reversing lamp P 21 W
A
Rear foglamp (driver's
side)
P 21 W
B
Licence plate illumina-
tion
LED
C
Additional turn signal
lamp on the roof
P 21 W
LED tail lamp
Lights Bulb type
:
Third brake lamp LED
;
Turn signal LED
=
Brake lamp, tail lamp/
parking lamp
LED
?
Reversing lamp W 16 W
A
Rear foglamp (driver's
side)
LED
B
Licence plate illumina-
tion
LED
C
Additional turn signal
lamp on the roof
P 21 W
Tail lamps
Fitting/removing the tail lamp
!
Remove the tail lamp with care, so as not to
damage the paintwork.
Due to their installation position, Mercedes-
Benz recommends that you have tail lamp
bulbs replaced at a qualified specialist work-
shop.
Tail lamp (example: LED tail lamp)
Please note that, for the LED tail lamp, you can
only change the bulb of the reversing lamp.
X
To remove: switch off the lighting system.
X
Open the tailgate/rear door.
i
The vehicle tool kit contains a screwdriver
(Y page 346).
X
Unscrew two side screws :.
X
Press tail lamp ; out as far as bolts =.
X
Prise tail lamp ; out from bolts =.
X
Pull the connector off the bulb holder of the
tail lamp.
X
To fit: press the connector into the bulb
holder of the tail lamp.
X
Press the tail lamp sideways onto bolts =
and slide onto the vehicle.
X
Tighten two side screws :.
