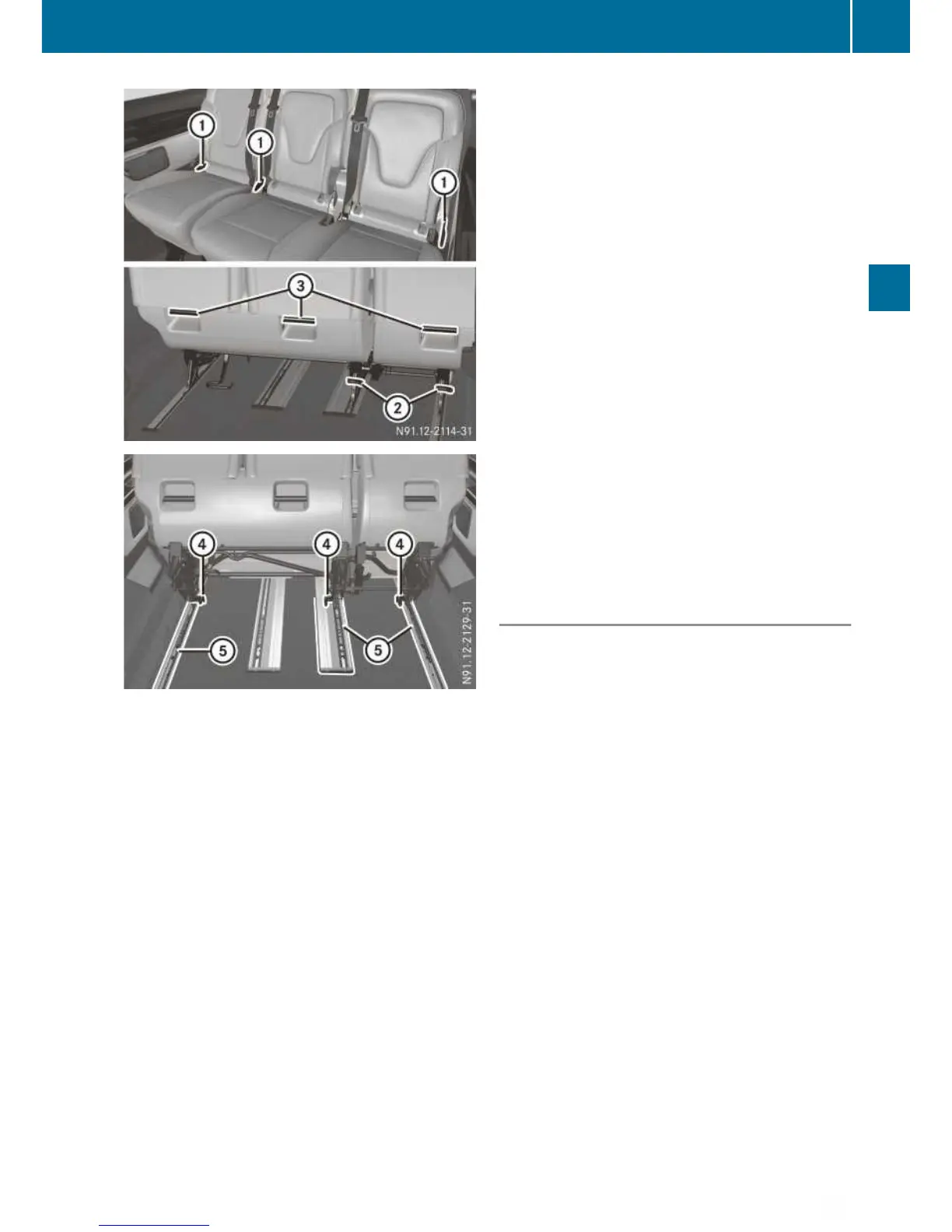

Backrest release handles
;
Release handles for rear seat anchorage
=
Grab handles
?
Release handle for front seat legs
A
Seat anchorages
i
On vehicles with a seat rail system, only
carry out the release, removal and subse-
quent replacement of the rear bench seats at
the basic position marked (Y page 100).
X
To remove: make sure that all carriages for
fore-and-aft adjustment are engaged on both
sides.
It should not be possible to move the rear
bench seat.
X
Fold the rear bench seat forwards
(Y page 102).
X
Pull release handle ? upwards.
X
Hold the rear bench seat by grab handles =
and lift it out of seat anchorages A.
X
To fit: hold the rear bench seat by grab han-
dles = and guide it into front seat ancho-
rages A at an angle from above.
X
Tilt the rear bench seat back and allow it to
engage.
Release handles ; fold down towards the
vehicle floor.
X
Fold the rear bench seat back into the upright
position.
The rear seat legs of the rear bench seat have
engaged correctly if:
R
the seat legs engage audibly
R
the indicator tab is no longer visible and is
fully retracted into the seat legs
If the rear seat legs of the rear bench seat have
not engaged correctly:
X
Release the rear seat legs again with release
handles ;.
X
Pull the rear bench seat back by grab handles
= with force so that the seat legs engage
correctly.
The seat backrest can then be positioned ver-
tically.
X
Slide rear bench seat into the standard posi-
tion (Y page 100).
Seat/berth combination
General notes
!
If you pull the seat belts to adjust the back-
rest, the function of the belt retractor may be
impaired. The seat belts may then fail to pro-
vide the intended protection.
In particular, always grip the retainer loop on
the centre seat when adjusting the backrest
to an upright position.
!
If you grasp and push the seat/bunk com-
bination on the stowage compartment plastic
panel only, the panel may break off. Always
grasp therefore, the loop between the seat
cushion and seat backrest to move the seat/
bunk combination.
Before moving the seat/bunk combination,
make sure that the space in front of or behind
the seat/bunk combination is free and that no
objects can become trapped.
The seat/bunk combination, trim or the
objects may become damaged.
Seats
105
Seats, steering wheel and mirrors
Z
