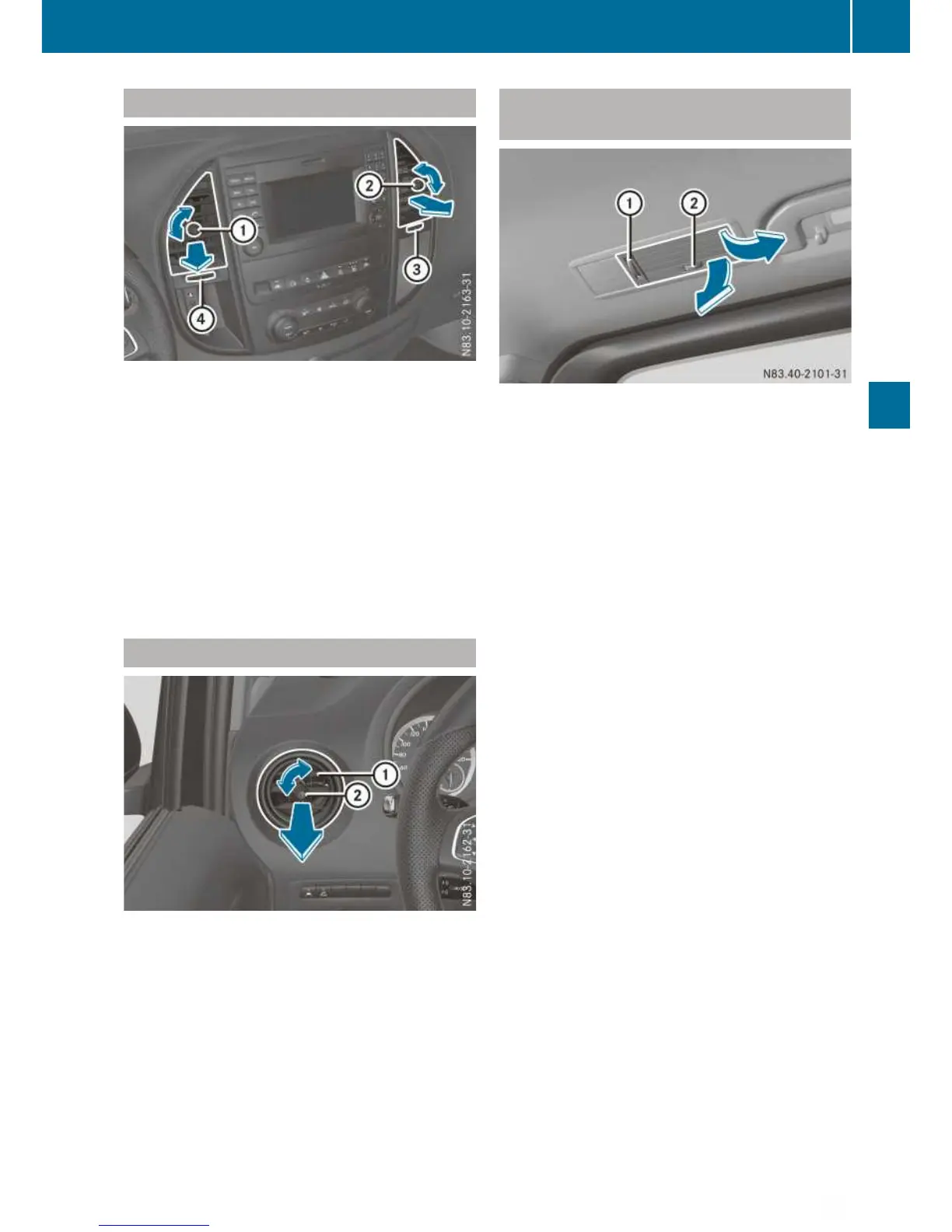

Setting the centre air vents
:
Control for centre air vent, left
;
Control for centre air vent, right
=
Thumbwheel for centre air vent, right
?
Thumbwheel for centre air vent, left
X
To open/close: turn control : or ; clock-
wise or anti-clockwise as far as it will go.
X
To adjust the air direction: hold side air vent
by control : or ; and move it up or down.
X
Using thumbwheel = or ? move centre air
vent to the left or right.
Setting the side air vents
:
Side air vent
;
Control for side air vent
X
To open/close: turn control ; to the left or
right as far as it will go.
X
To adjust the air direction: hold side air
vent : by control ; and move it up or down
or to the left or right.
Setting the rear-compartment air
vents
Rear air vents (example: right-hand side of vehicle)
:
Thumbwheel for vertical adjustment of the
airflow and air quantity control
;
Thumbwheel for horizontal adjustment of
the airflow
The air vents can only be adjusted on vehicles
with rear compartment air conditioning.
Vehicles with rear-compartment air condition-
ing: in heating mode, the air in the rear com-
partment is automatically distributed in the foot-
wells and roof area after the coolant has
reached the required temperature. In cooling
mode, in the initial phase the air is distributed in
the footwells and roof area of the hot vehicle,
and subsequently only in the roof area.
X
To open: turn thumbwheel : of the rear air
vent to the centre position.
X
To close: turn thumbwheel : to the upper or
lower end position.
Adjusting the air vents
157
