To open: if necessary, fold up the rear seat.
X
Turn top rotary catch : clockwise and bot-
tom rotary catch : anti-clockwise.
X
Remove cover ;.
X
To close: insert cover ;.
X
Turn top rotary catch : anti-clockwise and
bottom rotary catch : clockwise.
X
Fold down the rear seat.

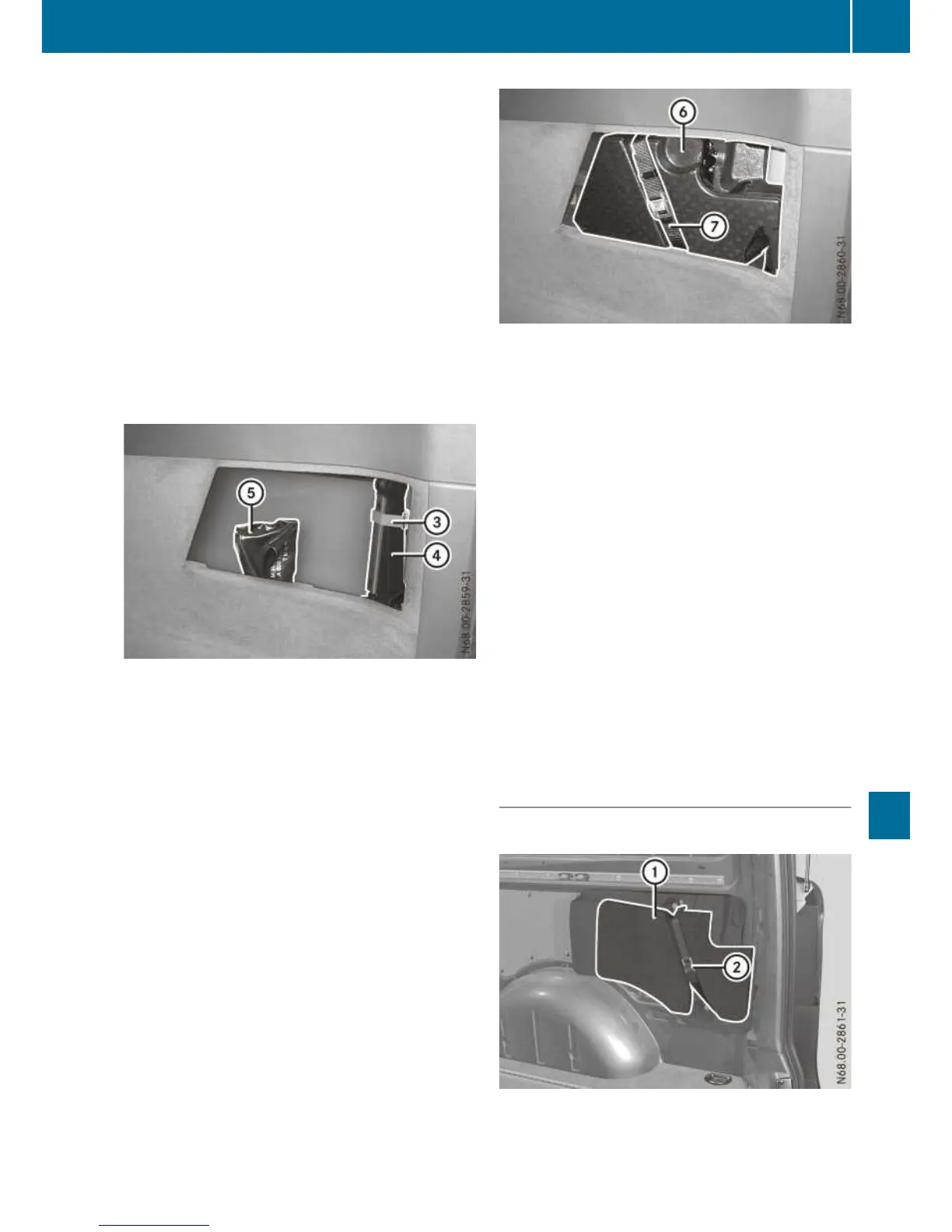

Removing/stowing the vehicle tool kit
and jack
Depending on the equipment version of the vehi-
cle, the vehicle tool kit and the jack are stowed
either in a stowage tray or in a tool holder with a
cover.
Stowage compartment with stowage tray
X
To remove tools: open the stowage com-
partment.
X
Open clamping strap = and remove jack ?
by pulling it upwards at an angle from the
stowage tray compartment.
X
Remove vehicle tool bag A upwards from the
stowage tray compartment.
X
To stow tools: insert vehicle tool bag A into
the front compartment of the stowage tray.
X
Before stowing, wind jack ? to the fully
closed position and place it so that the hand
wheel is facing downwards and the plate is
facing inwards at an angle.
X
Insert jack ? into the back compartment of
the stowage tray.
X
Press jack ? into the upper holder and fasten
clamping strap =.
The jack is secured.
X
Close the stowage compartment.
Stowage compartment with tool holder
X
To remove tools: open the stowage com-
partment.
X
Remove clamping strap C.
X
Remove tool holder cover B
X
Carefully pull the tool kit and jack out of the
stowage compartment. Lift the jack slightly
before removing it and turn it to a diagonal
position in the stowage compartment.
X
To stow tools: before stowing, wind the jack
to the fully closed position and place it so that
the hand wheel is facing forwards and the
plate is facing inwards.
X
Place the jack and vehicle tool kit into the tool
holder.
X
Replace tool holder cover B.
X
Tighten clamping strap C.
X
Close the stowage compartment.
Stowage space in the load compart-
ment
Tool holder in the luggage compartment
Tool holder in the luggage compartment on the
right-hand side of the vehicle
Where will I find...?
347
Breakdown assistance
