6-20
Chapter 6 INSPECTION AND REPAIR OF BASIC ENGINE
4.10 Connecting Rod Bushing - Replace
Using the connecting rod bushing installer, replace the con-
necting rod bushing.
4.10.1 Installer Base and Connecting Rod - Fix
(1) Align the match mark on base with match mark on
plate, and install the plate.

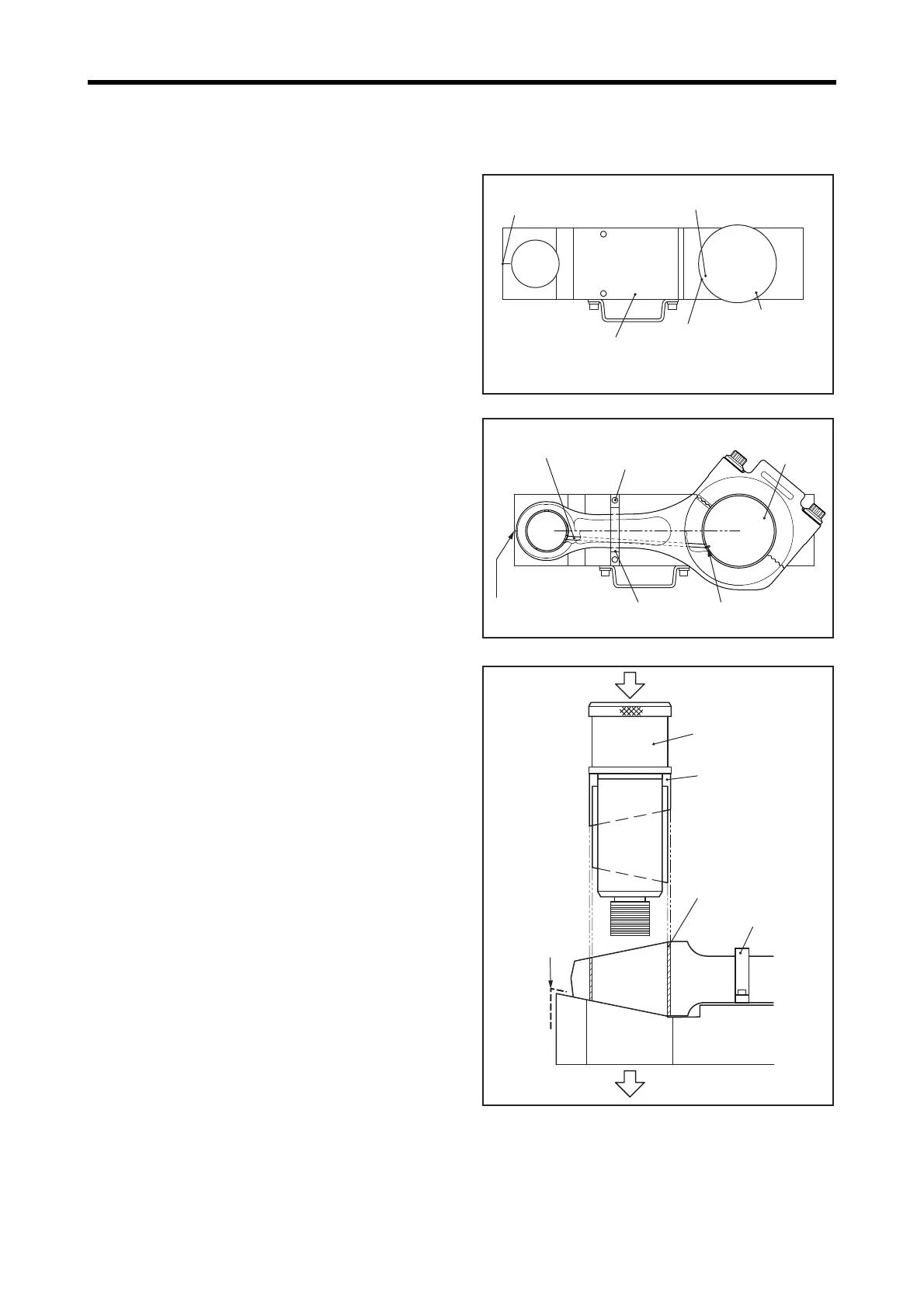

Connecting Rod Bushing Installer - Use (1)
(2) With the connecting rod bearing removed from the con-
necting rod, install the connecting rod cap to plate.
(3) Align the match mark, and install the connecting rod to
plate.
(4) Tighten the connecting rod bolts to the specified torque.
(5) Fix the connecting rod in place with bracket.
Connecting Rod Bushing Installer - Use (2)
4.10.2 Connecting Rod Bushing - Remove
(1) Apply engine oil to inner surface of connecting rod
bushing.
(2) Attach the collar A to mandrel and insert the mandrel
into connecting rod bushing while aligning the match
mark (red line) on collar A with mark on the base.
(3) With pressing machine, apply pressure slowly on man-
drel head to push-out the connecting rod bushing.
Connecting Rod Bushing Installer - Use (3)
Base match mark
(red ø4 mm [0.16 in.])
Plate match mark
(red ø4 mm [0.16 in.])
Base match mark
(red line mark)
Base
Plate
Connecting rod bushing installer
P/N: 37591-01010
Bracket
Bolt
Plate
Plate match mark
Match mark
(red line mark)
Connecting rod
oil hole
Match mark
Mandrel
Collar A
Bushing to be
removed
Bracket
Press
Removing direction
