8-33
Chapter 8 FUEL SYSTEM
2.5
Fuel Injection Pump Accessor
y Drive - Disassemble and Inspect

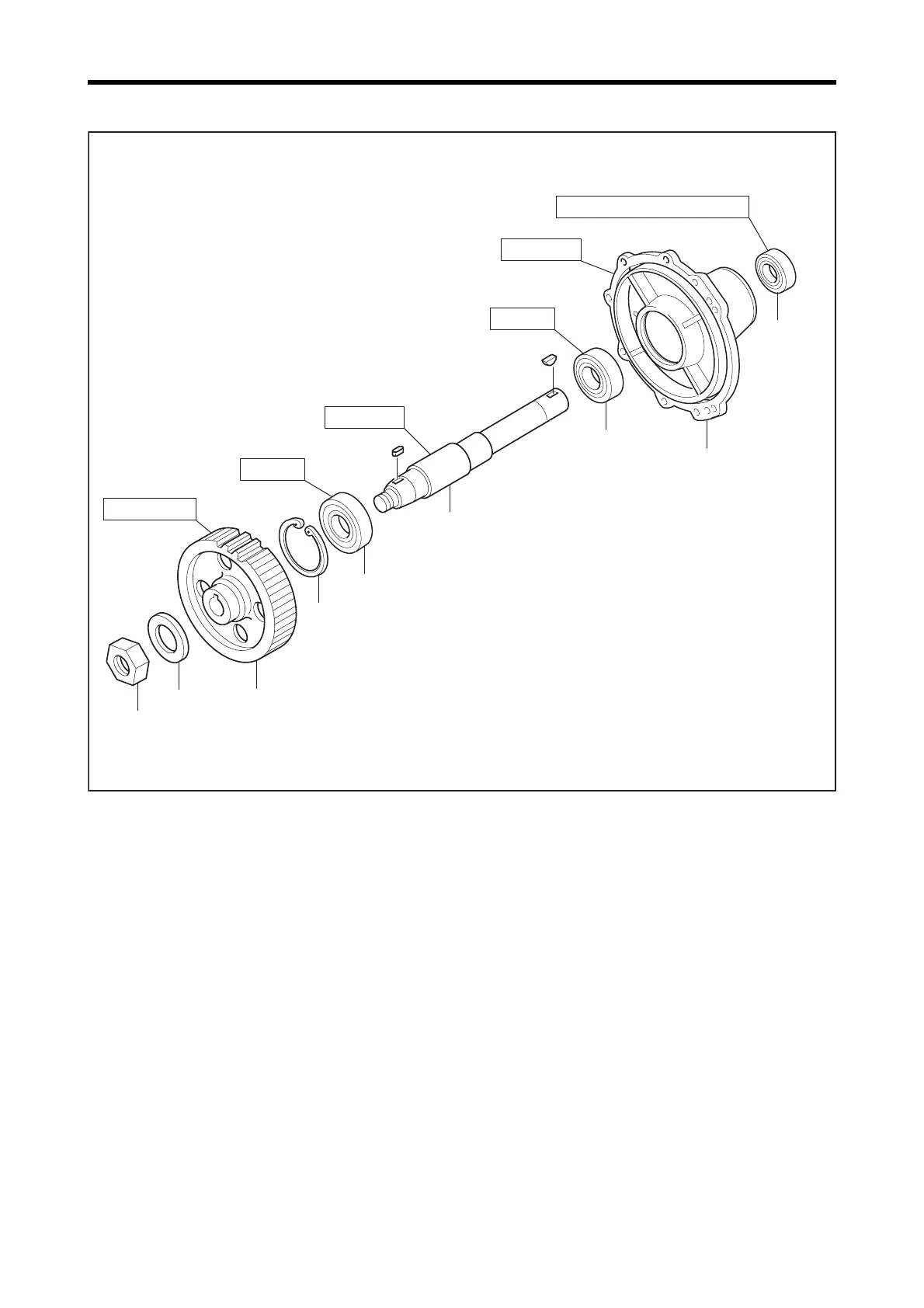

Fuel Injection Pump Accessory Drive - Disassemble and Inspect
8
4
3
1
2
5
6
7
9
Peeling, wear
Rotation
Rotation
Deformation, lip surface wear
Wear
, flaw
Wear
, flaw
Disassembling Sequence
1
Nut
2
Washer
3
Fuel injection pump gear
4
Snap ring
5
Drive shaft
6
Drive case
7
Bearing
8
Bearing
9
Oil seal
191
193
