6-32
Chapter 6 INSPECTION AND REPAIR OF BASIC ENGINE

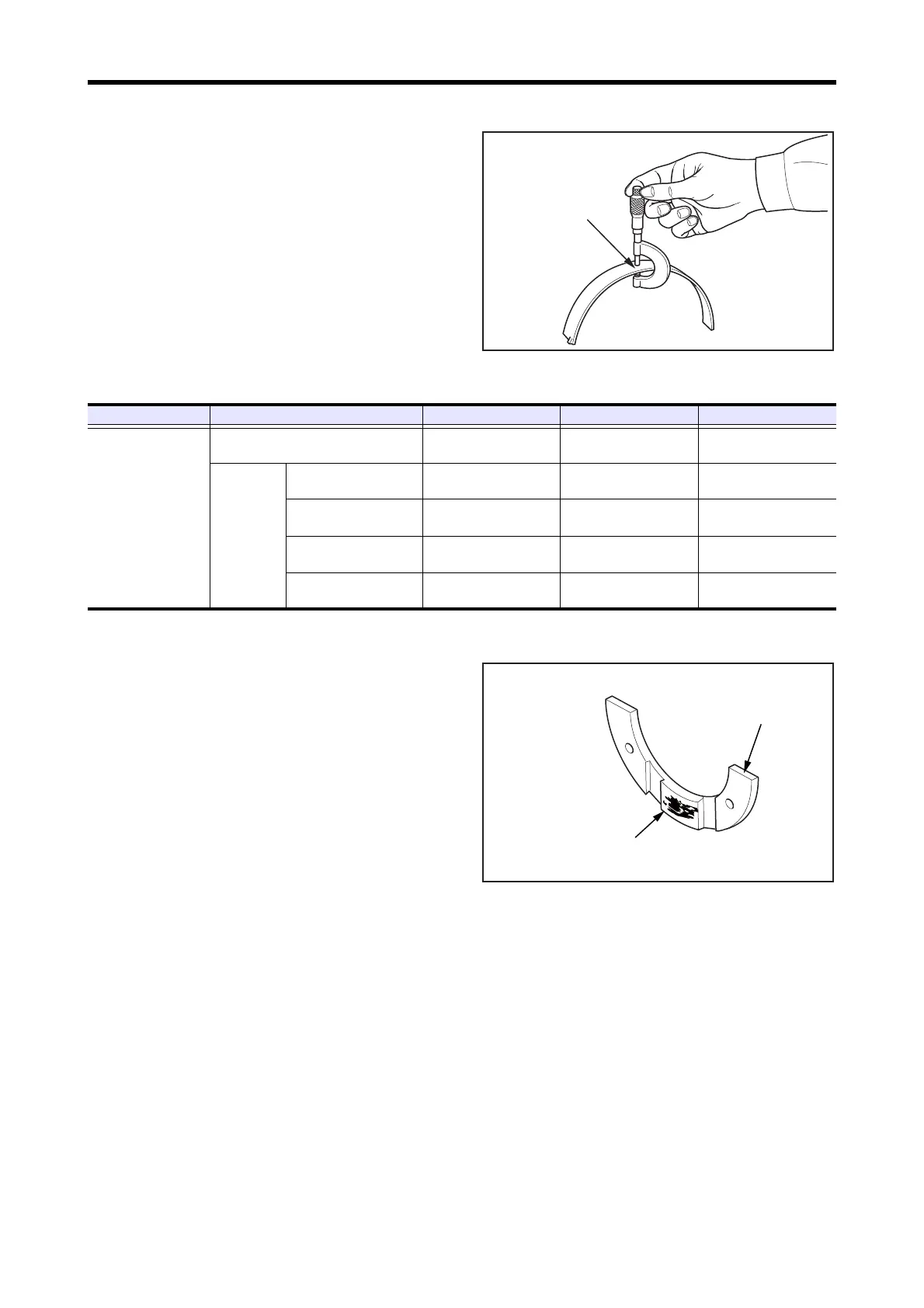

5.13 Thickness of Main Bearing Shell - Measure
Measure the thickness of main bearing shell at its center.
If the value exceeds the limit, replace both upper and lower
main bearing shells with new ones as a set.
When the crankshaft is re-griound due to wear of crank jou-
nal, use the undersize bearing.
For the crankshaft grinding procedure, refer to "Crankpin
and Crank Journal - Grind" of "INSPECTION AND
REPAIR OF BASIC ENGINE."
Note: Replacement shells for undersized main bearing are
available in sizes of 0.25, 0.50, 0.75 and 1.00 mm
[0.0098, 0.0197, 0.0295 and 0.0394 in.]
Thickness of Main Bearing Shell - Measure
5.14 Thrust Plate - Inspect
Inspect the sliding surface, back surface and end surface of
thrust plate. If any defect such as local contact, sliding
scratches, corrosion and foreign material inclusion is found,
replace the thrust plate with a new one.
Thrust Plate - Inspect
Measurement
at the center
of bearing
Item Size Nominal value Standard value Limit value
Main bearing
thickness at center
Standard 3.500 mm [0.1378 in.]
3.467 to 3.480 mm
[0.1365 to 0.1370 in.]
3.425 mm [0.1348 in.]
Under size
0.25 mm [0.0098 in.] 3.625 mm [0.1427 in.]
3.592 to 3.605 mm
[0.1419 to in.]
3.550 mm [0.1398 in.]
0.50 mm [0.0197 in.] 3.750 mm [0.1476 in.]
3.717 to 3.730 mm
[0.1463 to 0.1469 in.]
3.675 mm [0.1447 in.]
0.75 mm [0.0295 in.] 3.875 mm [0.1526 in.]
3.842 to 3.855 mm
[0.1513 to 0.1518 in.]
3.800 mm [0.1496 in.]
1.00 mm [0.0394 in.] 4.000 mm [0.1575 in.]
3.967 to 3.980 mm
[0.1562 to 0.1567 in.]
3.925 mm [0.1545 in.]
Flaw, corrosion, peeling
End face
