7-22
Chapter 7 ASSEMBLY OF BASIC ENGINE

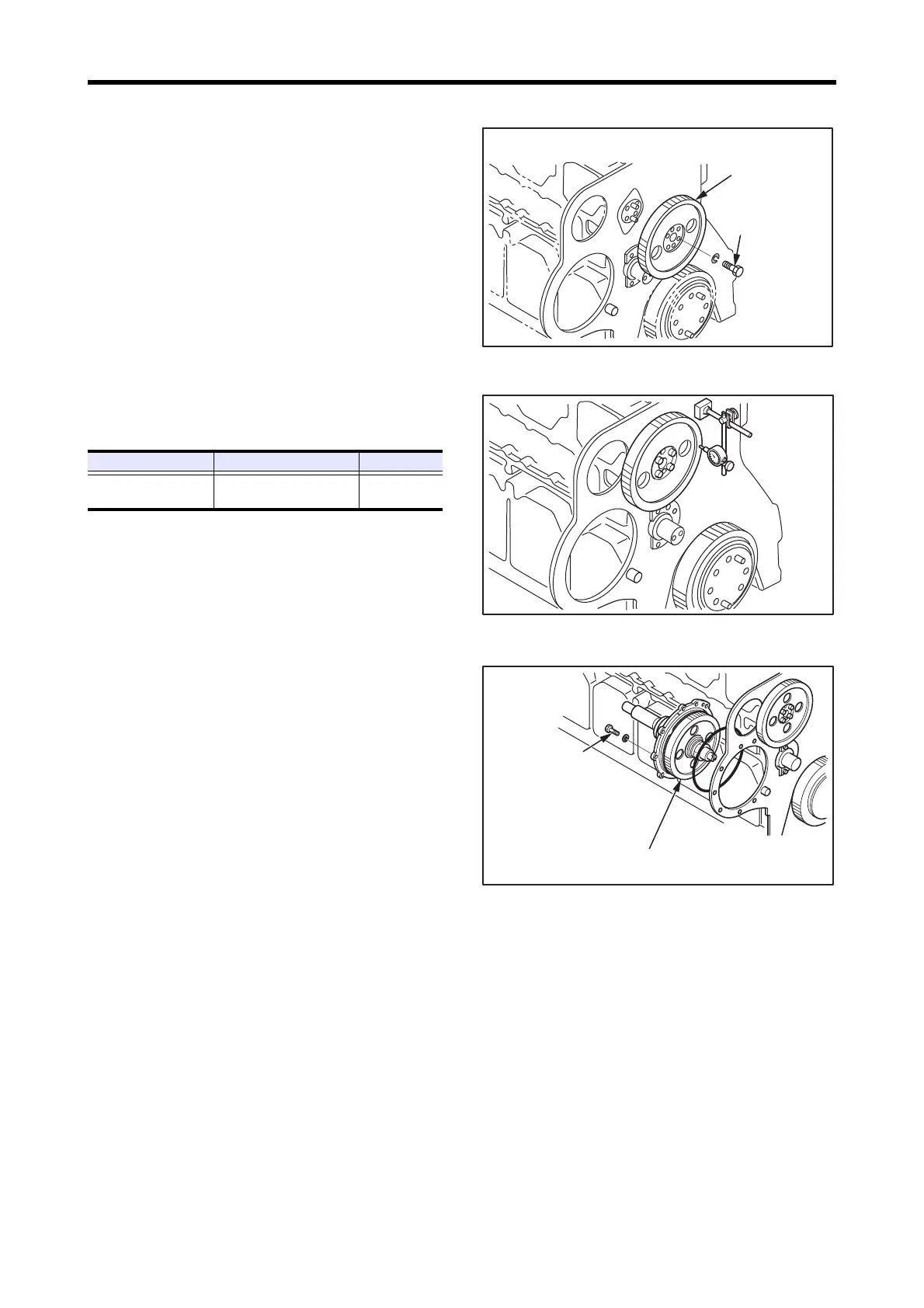

4.4 Camshaft Gear - Install
(1) Install the camshaft gear by aligning its hole with the
dowel pins on camshaft.
(2) Tighten the bolts to the specified torque.
(3) Verify the camshaft smooth rotation.
Camshaft Gear - Install
4.5 Camshaft End Play - Measure
Measure the camshaft end play. If the value exceeds the
limit, find the causal parts, and replace them with new ones.
Camshaft End Play - Measure
4.6 Fuel Injection Pump Accessory Drive - Install
(1) Install the O-ring to the mounting surface of the fuel
injection pump accessory drive case. Apply a thin coat
of ThreeBond 1212 to the flange.
(2) Install the fuel injection pump accessory drive to the
rear plate.
(3) Tighten the bolts to the specified torque.
Fuel Injection Pump Accessory Drive
- Install
176 ± 8.8 N·m
{17.9 ± 0.9 kgf·m}
[130 ± 6.5 lbf·ft]
Camshaft gear
Item Standard value Limit value
Camshaft end play
0.10 to 0.25 mm
[0.0039 to 0.0098 in.]
0.40 mm
[0.0157 in.]
108 ± 5.4 N·m
{11 ± 0.55 kgf·m}
[80 ± 4 lbf·ft]
Fuel injection pump
accessory drive
