5-5
Chapter 5 DISASSEMBLY OF BASIC ENGINE

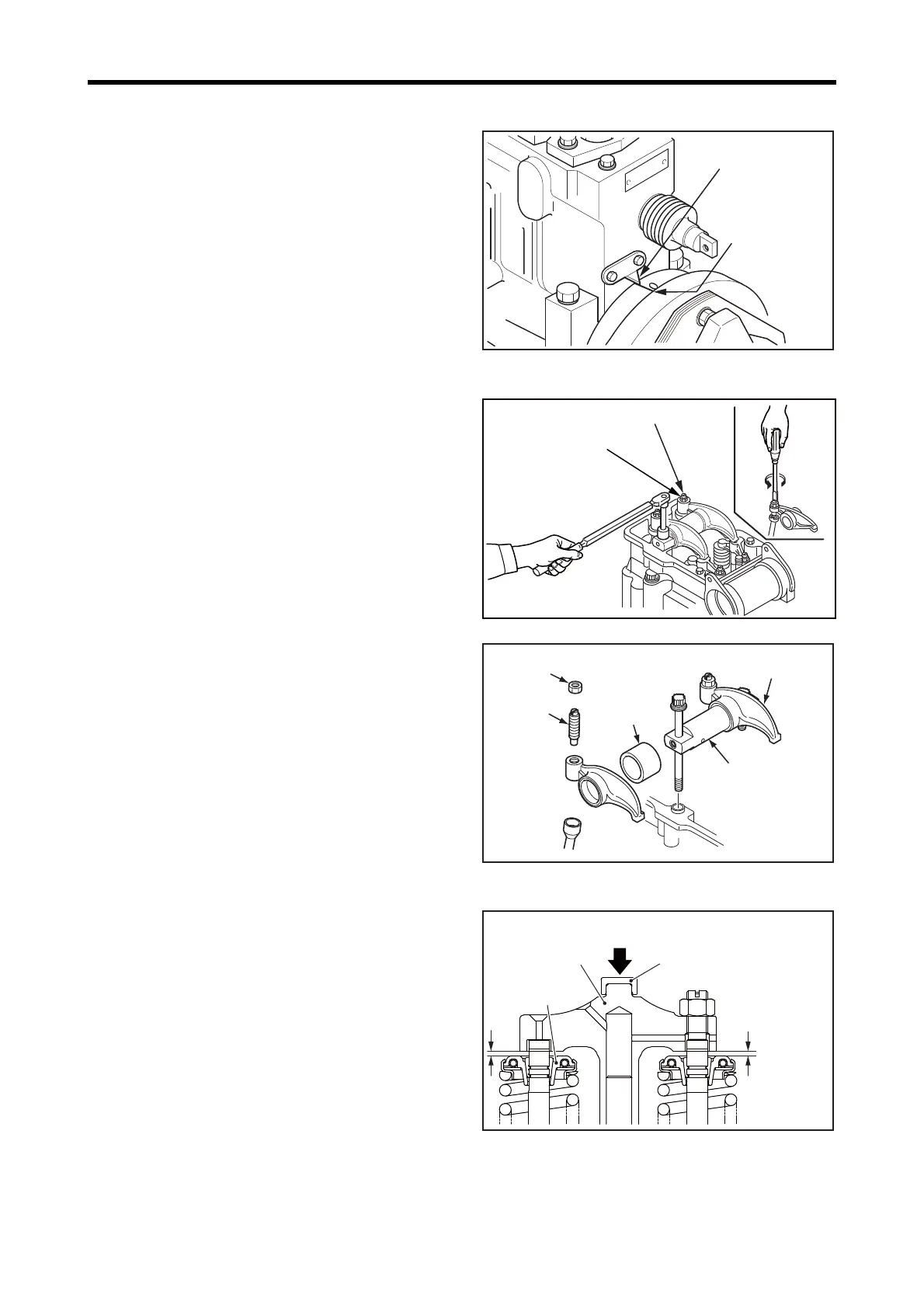

1.4 Fuel Injection Timing - Inspect
Inspect the fuel injection timing, and know the current con-
dition.
For the inspection procedures, refer to "Fuel Injection Tim-
ing - Check and Adjust" of "ASSEMBLY OF BASIC
ENGINE. "
Fuel Injection Timing - Inspect
1.5 Rocker Shaft Assembly - Remove
(1) Loosen the adjusting screw of rocker arm.
(2) Remove the rocker shaft assembly from rocker case.
Note: Keep the removed rocker shaft assembly and bolts as a
set.
(3) Remove the push rod.
Rocker Shaft Assembly - Remove
(4) Disassemble the rocker shaft assembly.
Note: Do not remove the rocker bushing unless it is defective
or its inside diameter exceeds the limit.
Rocker Shaft Assembly - Disassemble
1.6 Clearance Between Bottom Face of Valve Bridge and Top Face of Valve Rotator - Inspect
Inspect the clearance between the bottom face of valve
bridge and the top face of valve rotator, and know the cur-
rent condition.
For the inspection procedure, refer to "Clearance Between
Bottom Face of Valve Bridge and Top Face of Valve Rota-
tor - Measure" of "ASSEMBLY OF BASIC ENGINE. "
Clearance Between Valve Bridge Bottom Face and
Rotator Top Face - Check
Pointer
Line mark on
the flywheel
Adjusting screw
Loosen
Lock nut
Spacer
Rocker shaft
Lock nut
Adjusting
screw
Rocker arm
Hold down the top of bridge by hand.
Valve rotator
Bridge cap
Valve bridge
Clearance between
valve bridge bottom
face and valve
rotator top face
