Chapter 5 DISASSEMBLY OF BASIC ENGINE

3. Front Mechanism - Disassemble and Inspect

Understanding of the current engine condition before disassembling is very important to know the cause of trouble and do the

efficient work.

Depending on the maintenance work or purpose, it is desirable to inspect some of the following items before proceeding with

any job.

Damper Face and Radial Runout - Measure

Front Mechanism - Disassemble and Inspect

Note: The shape of front pulley differs in accordance with the customization and specification.

Crack, dowel hole defect

Belt groove wear

Crack, oil leak

Lip wear, flaw, aging

Lip wear

Replace

With fan spec

Non-attachment spec

With tachometer spec

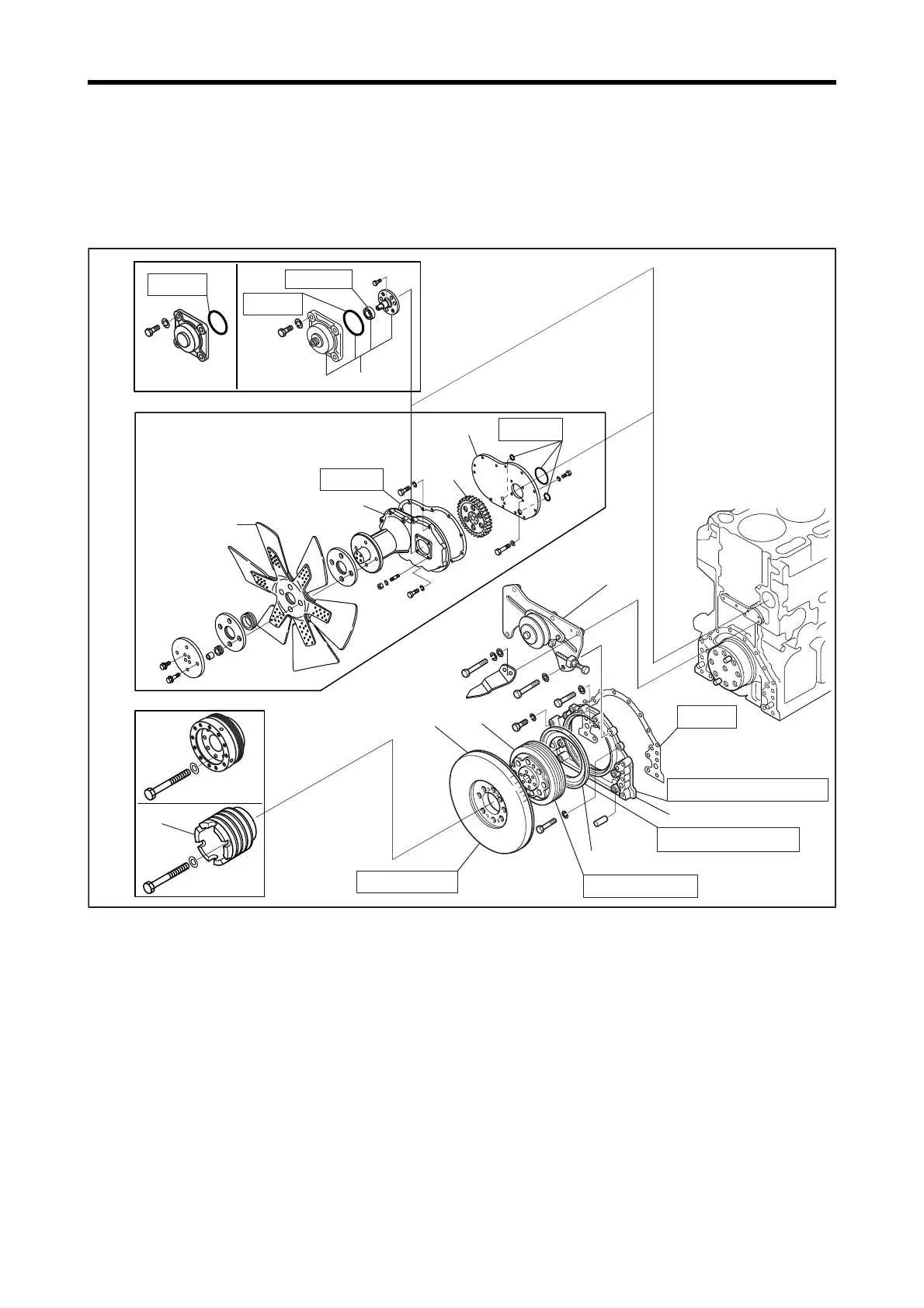

Disassembling Sequence

1 Fan (With fan spec)

2 Oil seal case, coupling

(With tachometer spec)

3 Fan drive assembly (With fan spec)

(Refer to the chapter "COOLING SYSTEM" for

disassembly, inspection and assembly.)

4 Fan drive gear (With fan spec)

5 Fan plate (With fan spec)

6 Front pulley

7 Damper (Approx 56 kg [123 lb])

8 Crankshaft pulley

9 Front cover

10 Oil seal case
