Chapter 8 FUEL SYSTEM
2.6 Outside Diameter and Inside Diameter of Accessory Drive Bearing Fit - Inspect
(1) Rotate the bearing and if the rotation is not smooth,
replace the bearing with a new one.
(2) Inspect the fit of drive shaft and bearing. If significant
wear is found, replace them with new ones.
(3) Inspect the fit of drive case and bearing. If significant
wear is found, replace them with new ones.
(4) Inspect the drive shaft and oil seal, and if any defect is
found, replace them with new one.

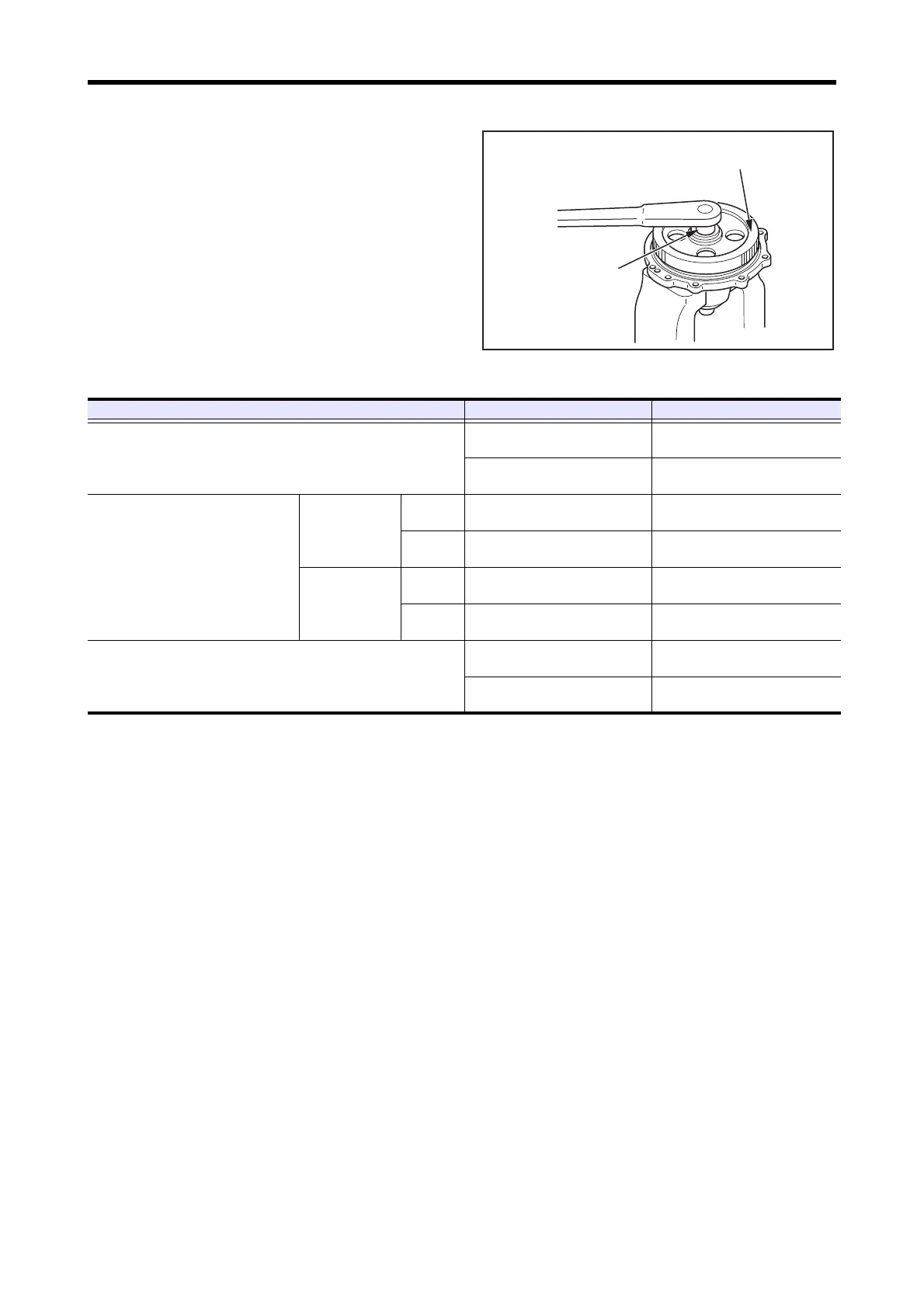

Fuel Injection Pump Gear - Remove
Fuel injection pump gear
Socket
P/N:58309-73100
Item Nominal value Standard value
Inside diameter of case bearing housing
ø90 mm
[3.54 in.]
89.987 to 90.022 mm
[3.5428 to 3.5442 in.]
ø100 mm
[3.94 in.]
99.987 to 100.022 mm
[3.9365 to 3.9379 in.]
Fuel injection pump drive shaft bearing
outside diameter
Small
ø90 mm
[3.54 in.]
89.985 to 90.000 mm
[3.5427 to 3.5433 in.]
Large
ø100 mm
[3.94 in.]
99.985 to 100.000 mm
[3.9364 to 3.9370 in.]
Inside diameter
Small
ø45 mm
[1.77 in.]
44.988 to 45.000 mm
[1.7712 to 1.7717 in.]
Large
ø50 mm
[1.97 in.]
49.988 to 50.000 mm
[1.9680 to 1.9685 in.]
Outside diameter of drive shaft bearing fit
ø45 mm
[1.77 in.]
45.002 to 45.013 mm
[1.7717 to 1.7722 in.]
ø50 mm
[1.97 in.]
50.002 to 50.013 mm
[1.9686 to 1.9690 in.]
