10-8
Chapter 10 COOLING SYSTEM
2.2
Thermostat - Disass
emble and
Inspect

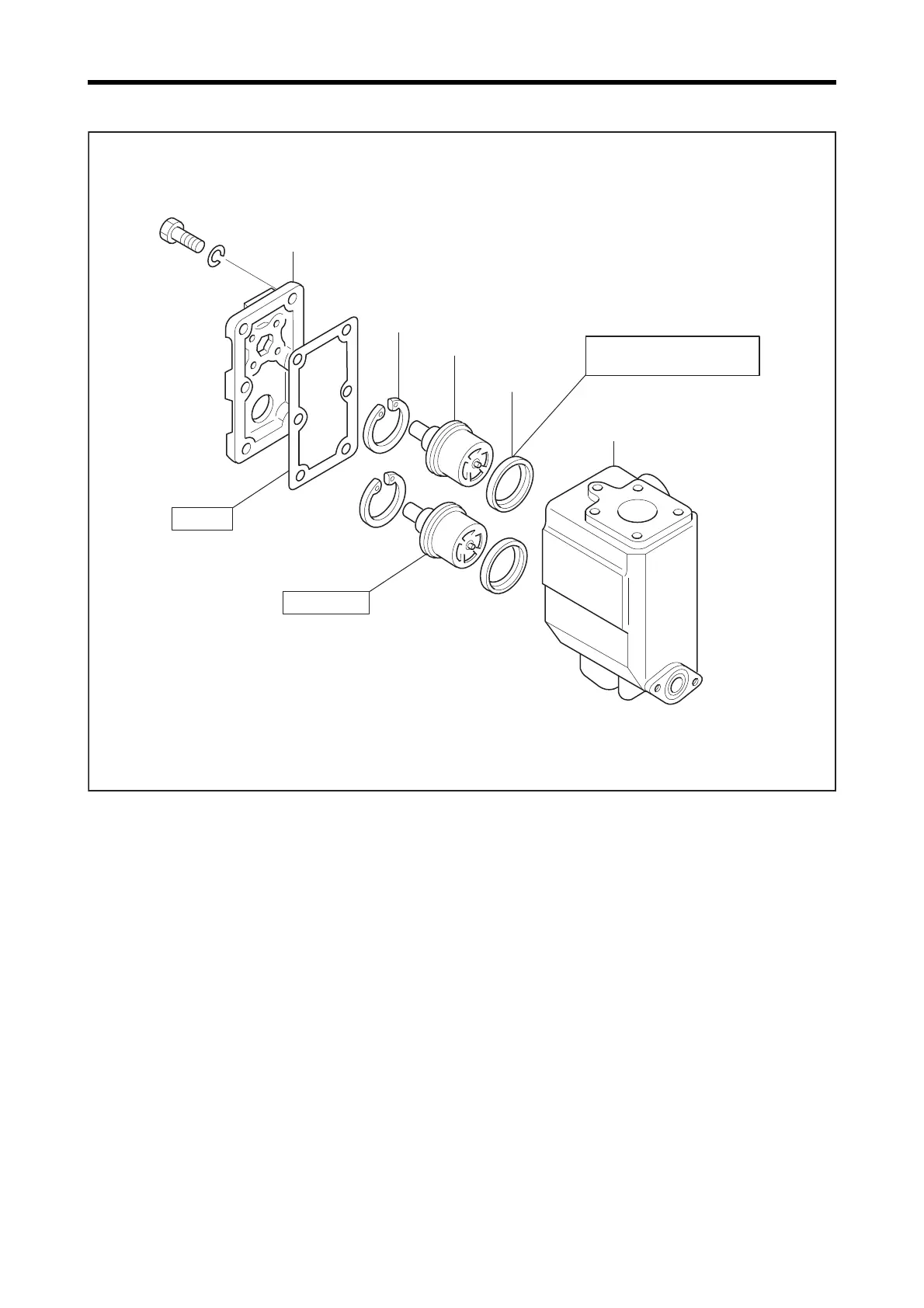

Thermostat - Disassemble and Inspect
1
2
3
4
5
Wear
, crack
Replace
Deformation, deterioration,
wear
, crack
Disassembling Sequence
1
Thermostat cover
2
Snap ring
3
Thermostat
4
Thermostat seal
5
Thermostat case
231
233
