Chapter 5 DISASSEMBLY OF BASIC ENGINE

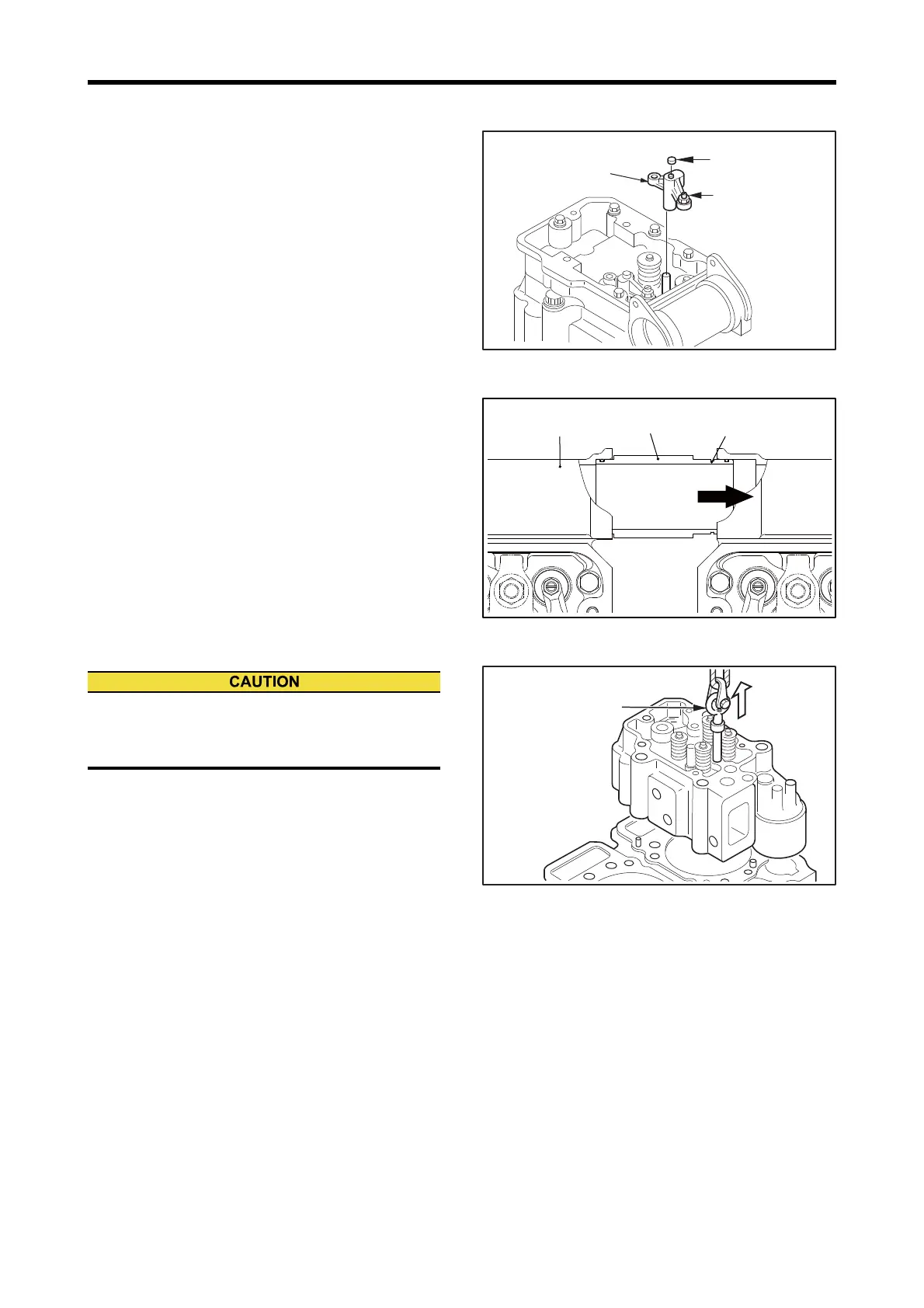

1.7 Valve Bridge - Remove
Remove the valve bridge and bridge cap.
Note: Be careful not to drop the bridge cap into the cylinder
head.
Valve Bridge - Remove
1.8 Rocker Case - Remove
(1) Remove the snap ring of water outlet connector.
(2) Slide the water outlet connector to the snap ring groove
side, and separate it from the next rocker case.
(3) Remove the rocker case from the cylinder head.
Rocker Case - Remove
1.9 Cylinder Head Assembly - Remove
(1) Remove the cylinder head bolt.
(2) Remove the cylinder head by lifting it up using the
sling.
Note: Dowel pins are used to retain the cylinder head in a po-
sition. Therefore, pull the cylinder head vertical to the
mounting surface to remove.
(3) Remove the cylinder head gasket.
Cylinder Head Assembly - Remove
1.10 Valve Sinkage - Measure
Measure the valve sinkage, and know the current condition.
For the measurement procedure, refer to "Valve Sinkage -
Measure" of "ASSEMBLY OF BASIC ENGINE."
Bridge cap
Screw
Valve bridge
Snap ring groove
Water outlet
connector
Rocker case
When removing the cylinder head gasket, be careful
not to damage the cylinder head or crankcase surface
with a screwdriver or the like.
Eye nut
P/N: 37591-02400
To Next Page
