7-34
Chapter 7 ASSEMBLY OF BASIC ENGINE

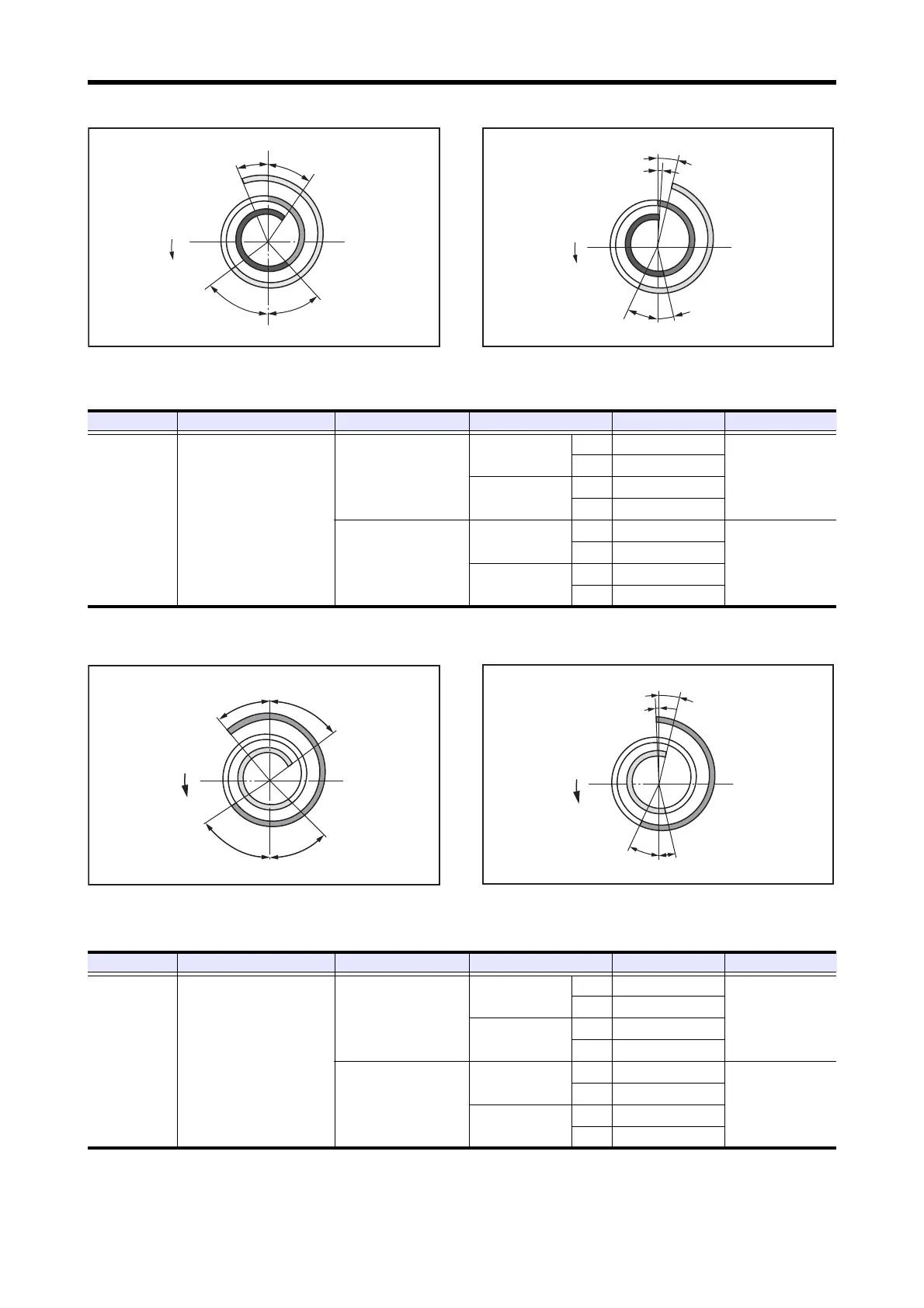

Overlap 61° spec
Overlap 61° Spec
Valve Timing When Valve Clearance is 0 mm
Overlap 61° Spec
Valve Timing When Valve Clearance is 2 mm [0.08 in.]
Overlap 93° spec
Overlap 93° Spec
Valve Timing When Valve Clearance is 0 mm
Overlap 93° Spec
Valve Timing When Valve Clearance is 2 mm [0.08 in.]
Inlet valve open
Inlet valve closed
Exhaust valve open
Exhaust valve closed
37°
24°
44°
57°
Rotation direction
TDC
BDC
Rotation direction
Inlet valve open
Inlet valve closed
Exhaust valve open
Exhaust valve closed
10.5°
2.5°
26°
13°
BDC
TDC
Item Specification Valve clearance Item Nominal value Standard value
Valve timing
Overlap 61°
Camshaft P/N:
37505-40100
0 mm [0.00 in.]
Inlet
Open BTDC 37°
-
Close ABDC 44°
Exhaust
Open BBDC 57°
Close ATDC 24°
2 mm [0.08 in.]
Inlet
Open BTDC 2.5°
±2°
Close ABDC 13°
Exhaust
Open BBDC 26°
Close BTDC 10.5°
Inlet valve open
Inlet valve closed
Exhaust valve open
Exhaust valve closed
Rotation direction
TDC
BDC
53°
40°
44°
57°
Inlet valve open
Inlet valve closed
Exhaust valve open
Exhaust valve closed
Rotation direction
TDC
BDC
14°
1°
25.5°
12.5°
Item Specification Valve clearance Item Nominal value Standard value
Valve timing
Overlap 93°
Camshaft P/N:
37505-34100
0 mm [0.00 in.]
Inlet
Open BTDC 53°
-
Close ABDC 44°
Exhaust
Open BBDC 57°
Close ATDC 40°
2 mm [0.08 in.]
Inlet
Open BTDC 14°
±2°
Close ABDC 12.5°
Exhaust
Open BBDC 25.5°
Close ATDC 1°
