Chapter 8 FUEL SYSTEM

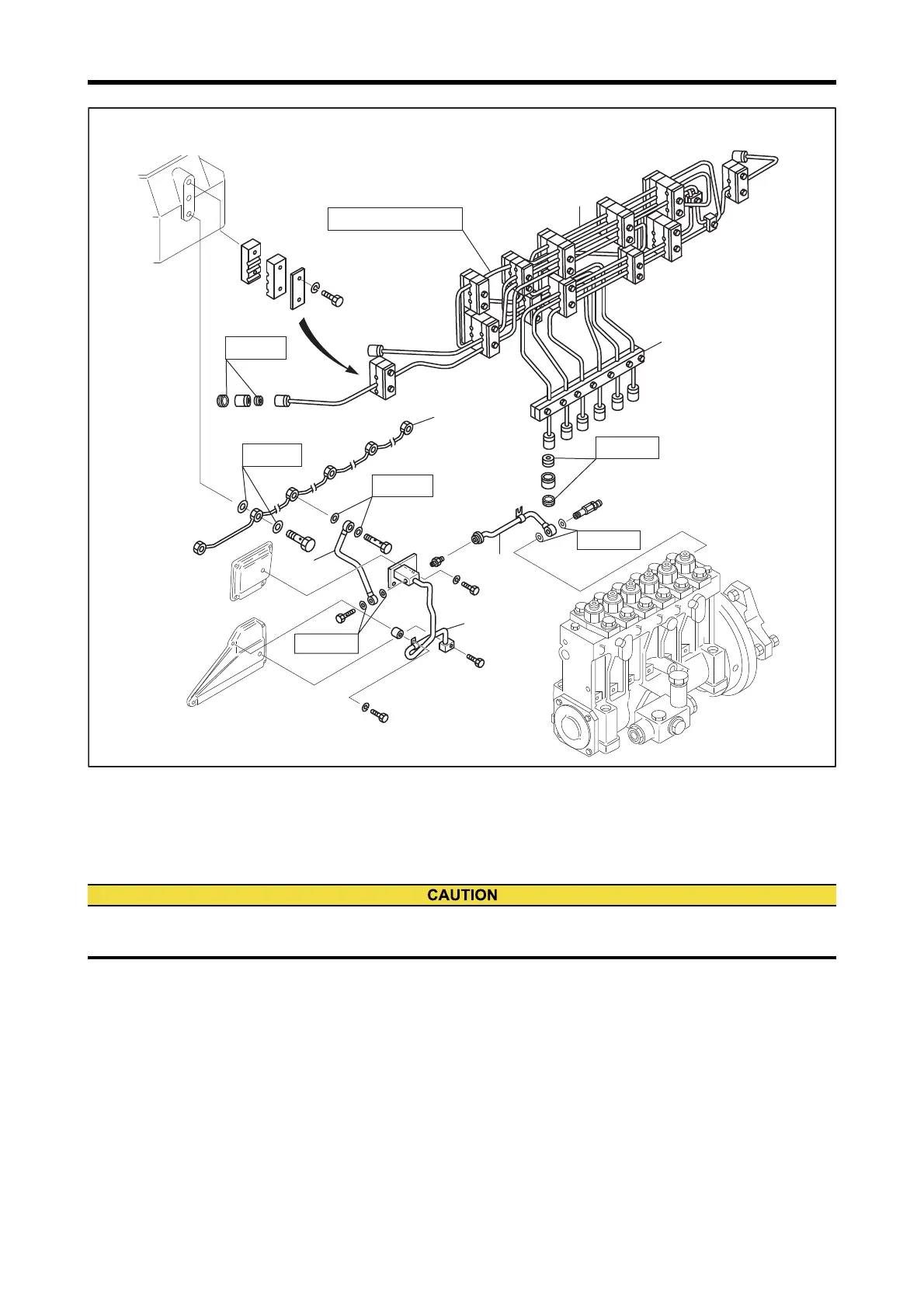

Fuel Injection Pipe and Fuel Leak-off Pipe - Remove and Inspect
Note: The consisting parts at fuel inlet and outlet differ depending on the customization and specification.
Replace
Replace
Replace
Replace
Replace
Replace
4
3
2
1
5
6
Leak, crack, contact
No.2 cylinder head
Standard injection pipe spec 2
Removing Sequence
1 Clamp
2 No.1 to 6 fuel injection pipe
3 Leak-off pipe
4 Leak-off pipe
5 Leak-off end pipe
6 Leak-off pipe
Cover the openings on the fuel injection pump, nozzle inlet connector and fuel injection pipe to prevent dust from
entering the fuel system.
