Chapter 8 FUEL SYSTEM

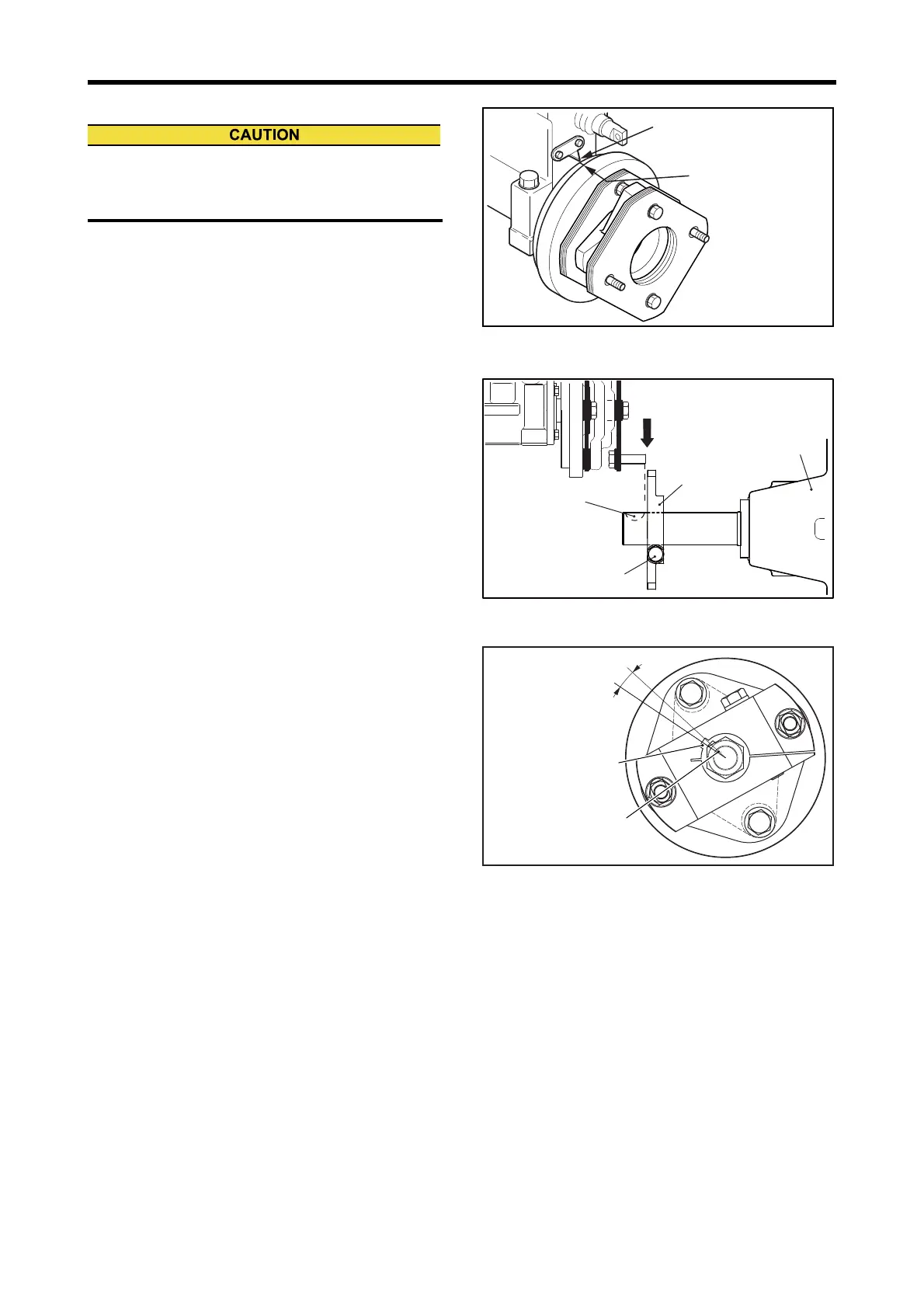

3.1.1 Checking Before Installing Fuel Injection Pump
(1) Rotate the crankshaft to the No. 1 compression top dead
center.
(2) Install drive coupling temporary attached to the fuel
injection pump to the accessory driving shaft with the
woodruff key. Adjust the position so that the driving
coupling is not interfered with the bolt for fuel injection
pump. The shaft tightening bolt should be loosened at
this time.
(3) Align the "0" line mark on the fuel injection pump fly-
wheel with the pointer. (Injection start timing of cylin-
der No. 1)
Pointer and Line Mark - Align
Drive Coupling - Install
(4) Make sure that the camshaft stamped letter and the cou-
pling key groove are oriented as shown in the illustra-
tion.
Fuel Injection Pump Assembling Position of Camshaft
and Driving Coupling (View From Rear (Drive Side))
Ensure the correct mounting position of drive coupling.
If it is installed 180 degrees out of position, the fuel
injection timing cannot be adjusted.
Pointer
Flywheel zero line
mark position
Fuel injection pump
accessory drive
Drive coupling
Shaft tightening bolt
Woodruff key
Avoid contact with
fuel injection pump bolt.
(11.6°)
Coupling key groove
Camshaft stamped letter
