Motorola AP-6511 User Manual

Device Configuration
5-51

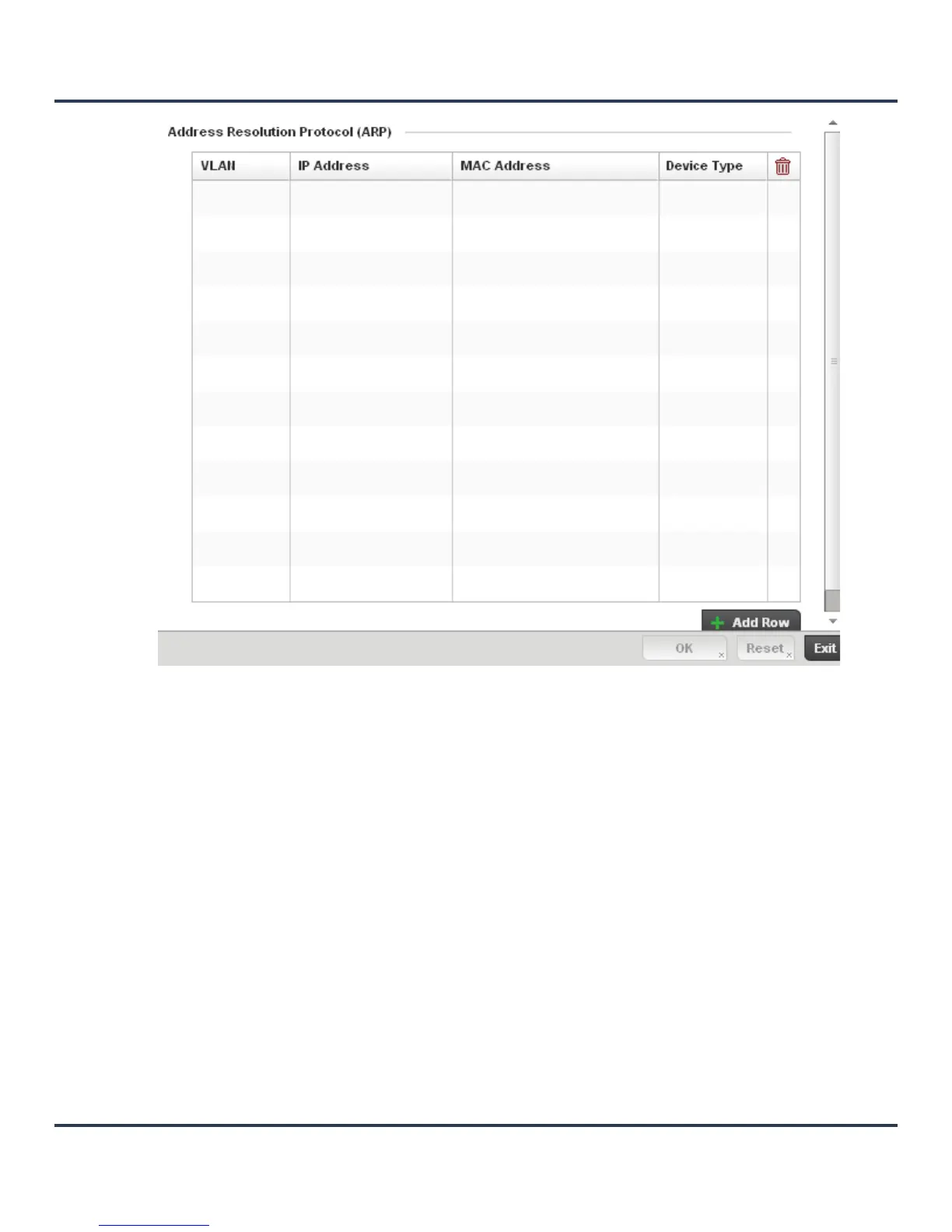

Figure 5-28 Profile Overrides - Network ARP screen
6. Set or override the following parameters to define the ARP configuration:
7. Select the OK button to save the changes and overrides to the ARP configuration. Select Reset to revert
to the last saved configuration.
VLAN Use the spinner control to select a VLAN for an address requiring resolution.
IP Address Define the IP address used to fetch a MAC Address.
MAC Address Displays the target MAC address that’s subject to resolution. This is the MAC
used for mapping an IP address to a MAC address that’s recognized on the
network.
Device Type Specify the device type the ARP entry supports. Host is the default setting.

Motorola AP-6511 Specifications

General

Brand	Motorola
Model	AP-6511
Category	Wireless Access Point
Language	English
