Motorola AP-6511 User Manual

Device Configuration
5-59

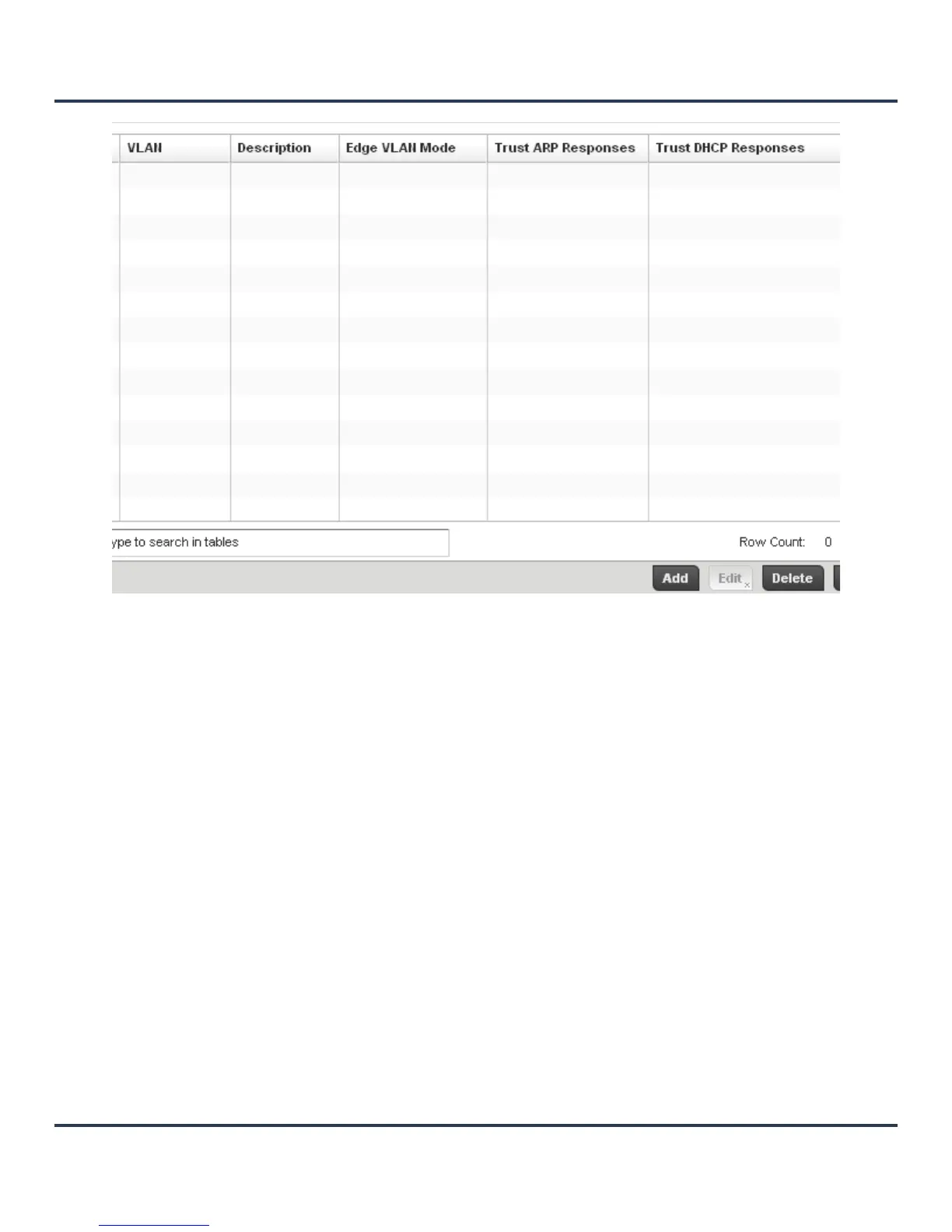

Figure 5-32 Profile Overrides - Network Bridge VLAN screen
6. Review the following VLAN configuration parameters to determine whether an override is warranted:
VLAN Lists the numerical identifier defined for the Bridge VLAN when it was
initially created. The available range is from 1 - 4095. This value cannot be
modified during the edit process.
Description Lists a description of the VLAN assigned when it was created or modified.
The description should be unique to the VLAN’s specific configuration and
help differentiate it from other VLANs with similar configurations.
Edge VLAN Mode Defines whether the VLAN is currently in edge VLAN mode. An edge VLAN
is the VLAN where hosts are connected. For example, if VLAN 10 is defined
with wireless clients and VLAN 20 is where the default gateway resides,
VLAN 10 should be marked as an edge VLAN and VLAN 20 shouldn’t be
marked as an edge VLAN. When defining a VLAN as edge VLAN, the firewall
enforces additional checks on hosts in that VLAN. For example, a host cannot
move from an edge VLAN to another VLAN and still keep firewall flows
active.
