9 Visualization
Maschinenfabrik Reinhausen GmbH 2020166 6385142/08 ENETOS
®
ED
▪ Pressure
▪ Flow rate
▪ Pump current consumption
45°C
38°C
Oil
Water
0.96bar
3.6 m³/h
8°C
14°C
Cooling stage 1
47°C
41°C
0.96bar
3.6 m³/h
8°C
15°C
Cooling stage 2
1.10bar
3.9 m³/h
1.10bar
3.6 m³/h

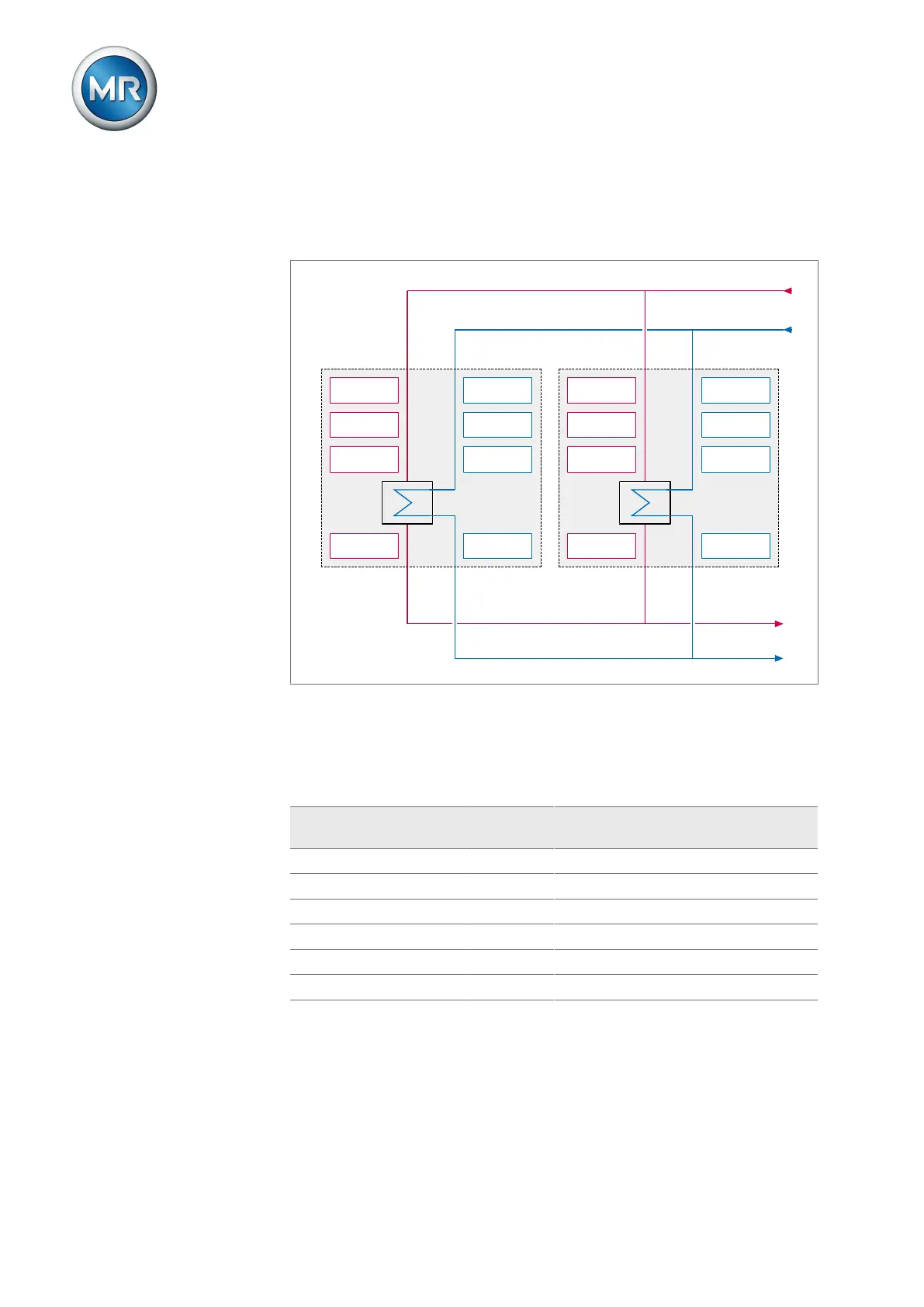

Figure123: Cooling system flow monitoring values
9.12.3.1 Setting the cooling system flow monitoring function
You can set the following limit values for the cooling media oil and water re-
spectively for monitoring the cooling system flow:
Measured value Lower
limit2
Lower
limit1
Upper
limit1
Upper
limit2
Feed temperature << < > >>
Return temperature << < > >>
Temperature difference << < - -
Pressure << < - -
Flow rate << < - -
Pump current << < > >>
Table41: Limit values for cooling system flow monitoring
