MR ETOS ED User Manual

4 Product description
Maschinenfabrik Reinhausen GmbH 202044 6385142/08 ENETOS
®
ED
NOTICE
Damage to the transformer and/or on-load tap-changer
If the Blocking active event is present in the monitoring system, then the
cause of the event has to be analyzed before activating emergency opera-
tion. Performing additional tap-change operations on the motor-drive unit
without analyzing the cause may lead to on-load tap-changer and/or trans-
former damage.
► Check what caused the Blocking active event and decide whether to con-
tinue operating the on-load tap-changer based on the cause.
► Export the service data and contact Maschinenfabrik Reinhausen GmbH.
4.10 Visualization
4.10.1 Main screen
The web-based visualization is split into various areas.

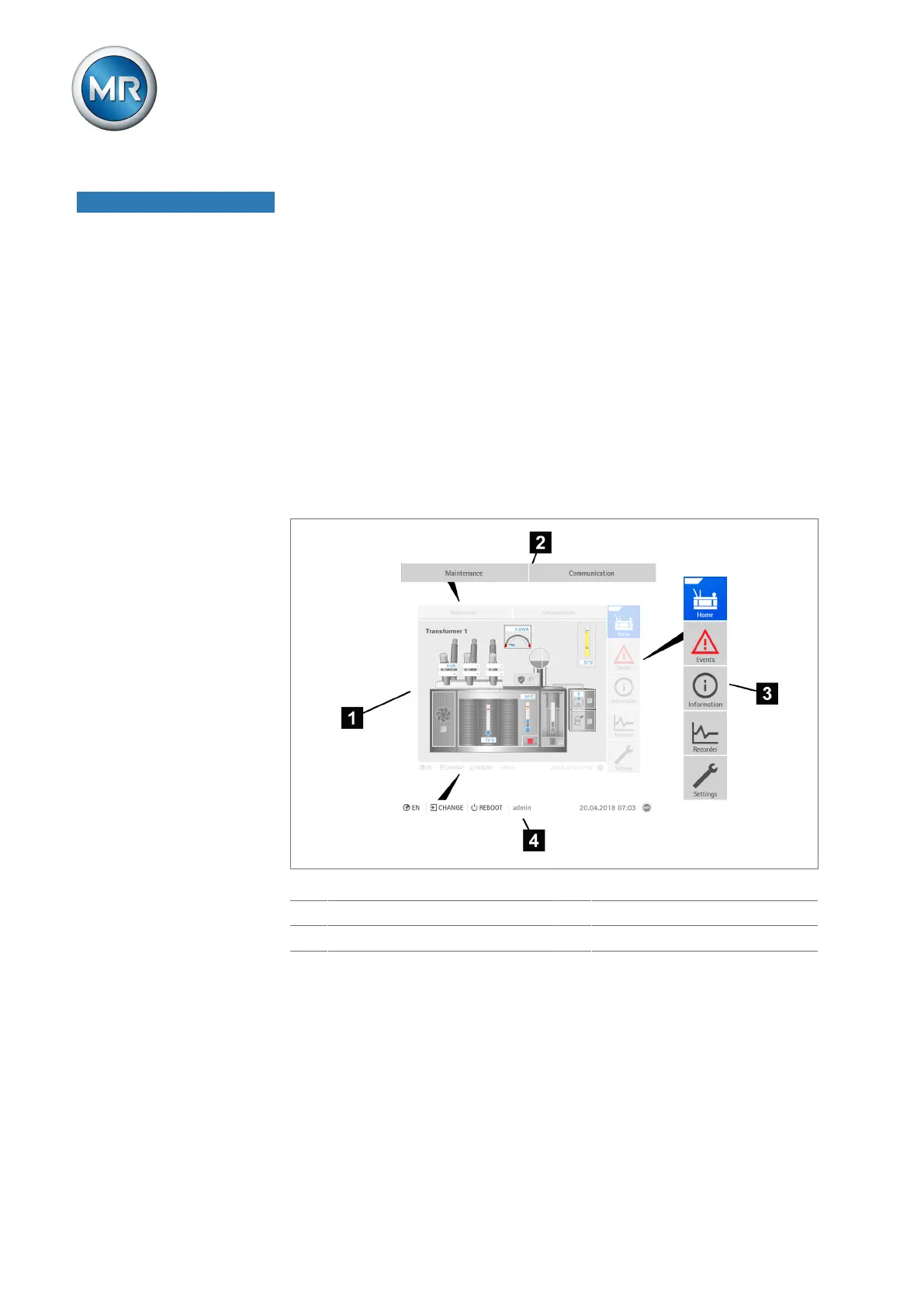

Figure24: Main screen
1 Display area 2 Secondary navigation
3 Primary navigation 4 Status bar
The most important measured values of the transformer are displayed on the
main screen. The individual status displays of the transformer shown can be
selected directly when accessing them via the web browser. They act as
links to the corresponding menu items. If you are operating the device via
the front panel, you are only able to call up the elements via the Information
menu.
