9 Visualization

Maschinenfabrik Reinhausen GmbH 2020 2156385142/08 EN ETOS

Settings

Parameters

Compensation

Name Value

Compensation method R&X compensation

Ohmic resistance load 0.0Ohm/m

Inductive resistance load 0.0Ohm/m

Length of line 0.00m

Voltage increase 0.0%

Voltage limit value 0.0%

Home

Events

Information

Recorder

Settings

CHANGE

REBOOT

admin 03.02.2020 08:09

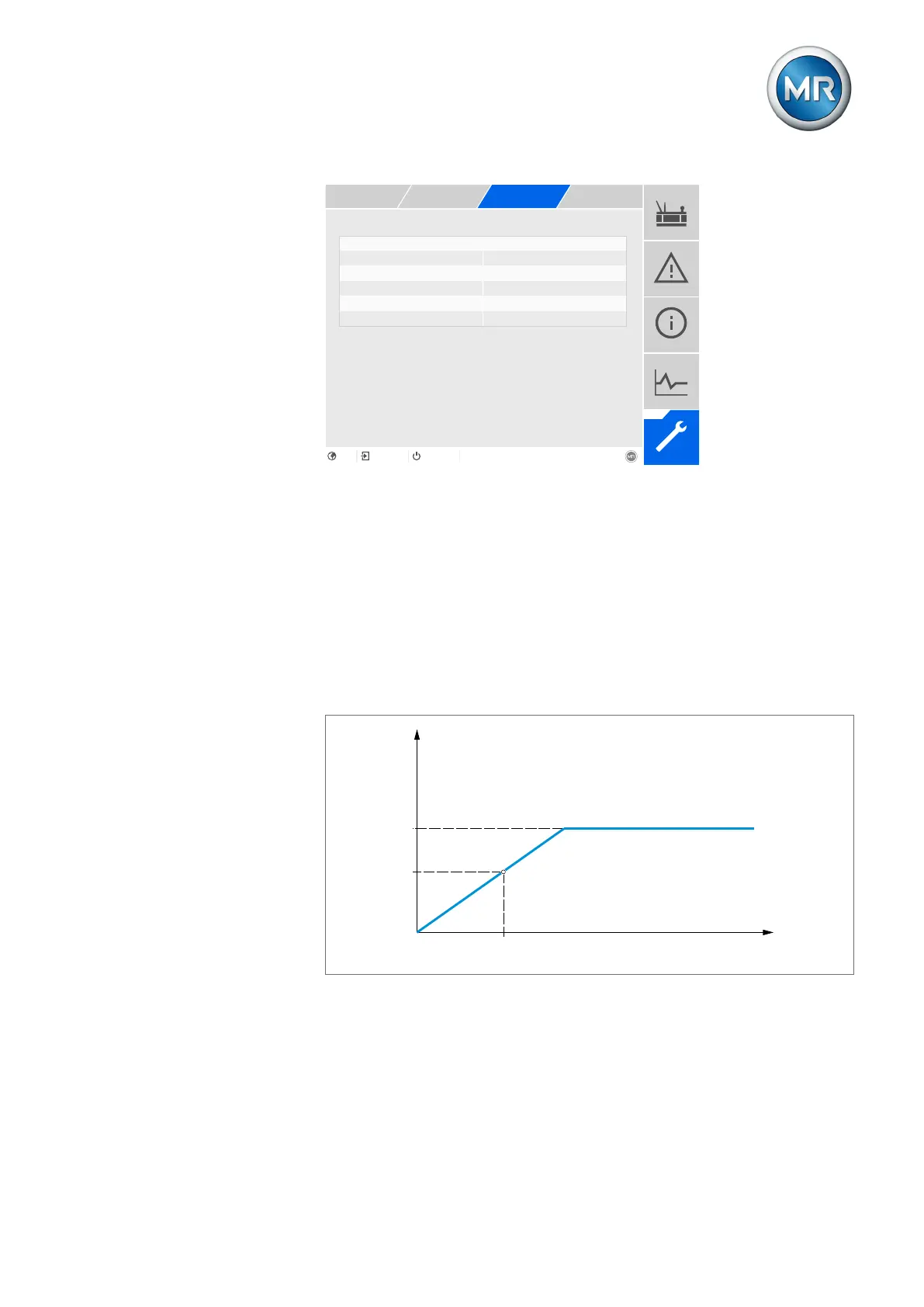

Figure145: Compensation

1. Go to Settings > Parameters > Grid > Compensation.

2. Select the desired parameter.

3. Set the desired parameter.

4. Press the Accept button to save the modified parameter.

9.20.2 Z compensation

To keep the voltage constant for the consumer, you can use Z compensation

to activate a current-dependent voltage increase. You can also define a limit

value to avoid excess voltage on the transformer.

ΔU% max

ΔU%

Figure146: Z compensation
